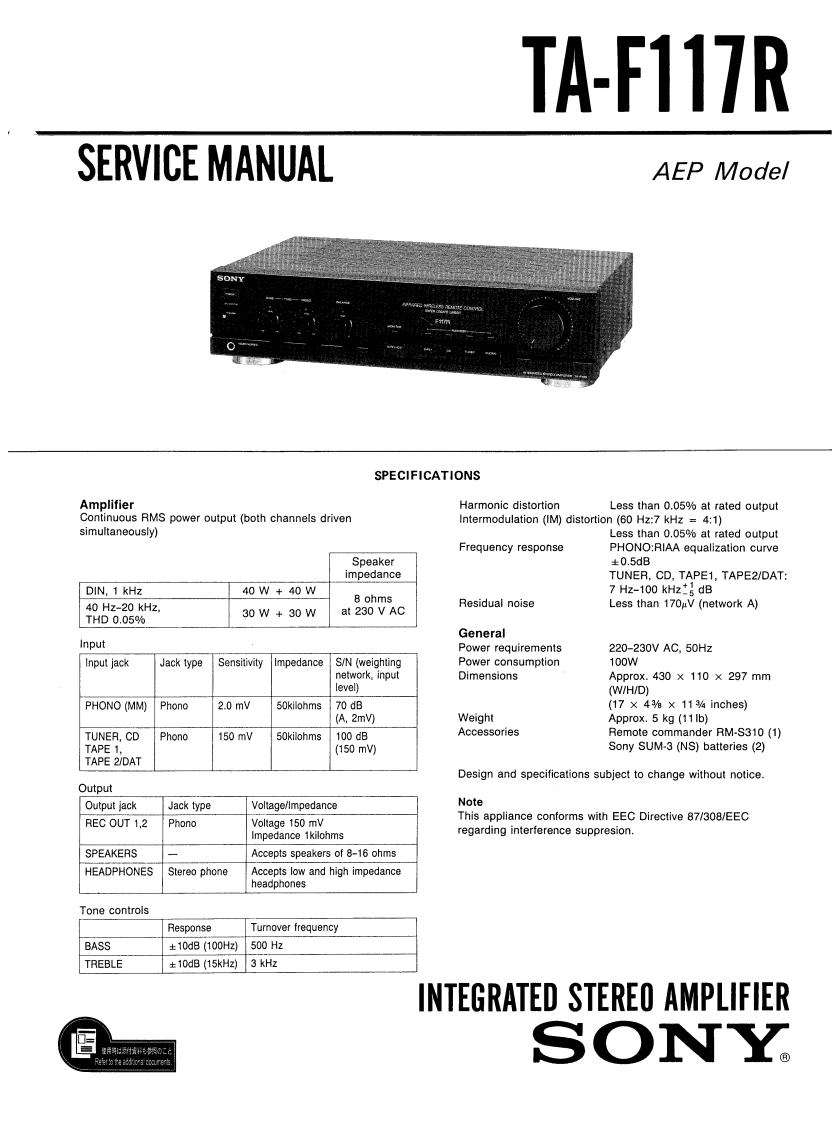

TA-F117RSERVICE MANUALAEP ModelSPECIFICATIONSAmplifierHarmonic distortionLess than 0.05%at rated outputContinuous RMS power output(both channels drivenIntermodulation (IM)distortion (60 Hz:7 kHz 4:1)simultaneously)Less than 0.05%at rated outputFrequency responsePHONO:RIAA equalization curveSpeaker±0.5dBimpedanceTUNER,CD,TAPE1,TAPE2/DAT:DIN,1 kHz40W+40W7 Hz-100 kHz*dB8 ohms40 Hz-20 kHz.Residual noiseLess than 170V(network A)THD 0.05%30W+30Wat 230 V ACGeneralInputPower requirements220-230VAC,50HzInput jackJack typeSensitivitympedanceS/N (weightingPower consumption100Wnetwork,inputDimensionsApprox.430×110×297mmlevel)(W/H/D)PHONO (MM)Phono2.0mW50kilohms70 dB(17×46×11%inches)(A,2mV)WeightApprox.5 kg (11 1b)TUNER,CDPhono150mV50kilohms100dBAccessoriesRemote commander RM-S310 (1)TAPE 1.(150mW0Sony SUM-3 (NS)batteries (2)TAPE 2/DATDesign and specifications subject to change without notice.OutputOutput jackJack typeVoltage/ImpedanceNoteREC OUT 1,2This appliance conforms with EEC Directive 87/308/EECPhonoVoltage 150 mVImpedance 1kilohmsregarding interference suppresion.SPEAKERSAccepts speakers of 8-16 ohmsHEADPHONESStereo phoneAccepts low and high impedanceheadphonesTone controlsResponseTurnover frequencyBASS±10dB(100Hz500HzTREBLE±10dB(15kHz)3kHzINTEGRATED STEREO AMPLIFIERSONY
