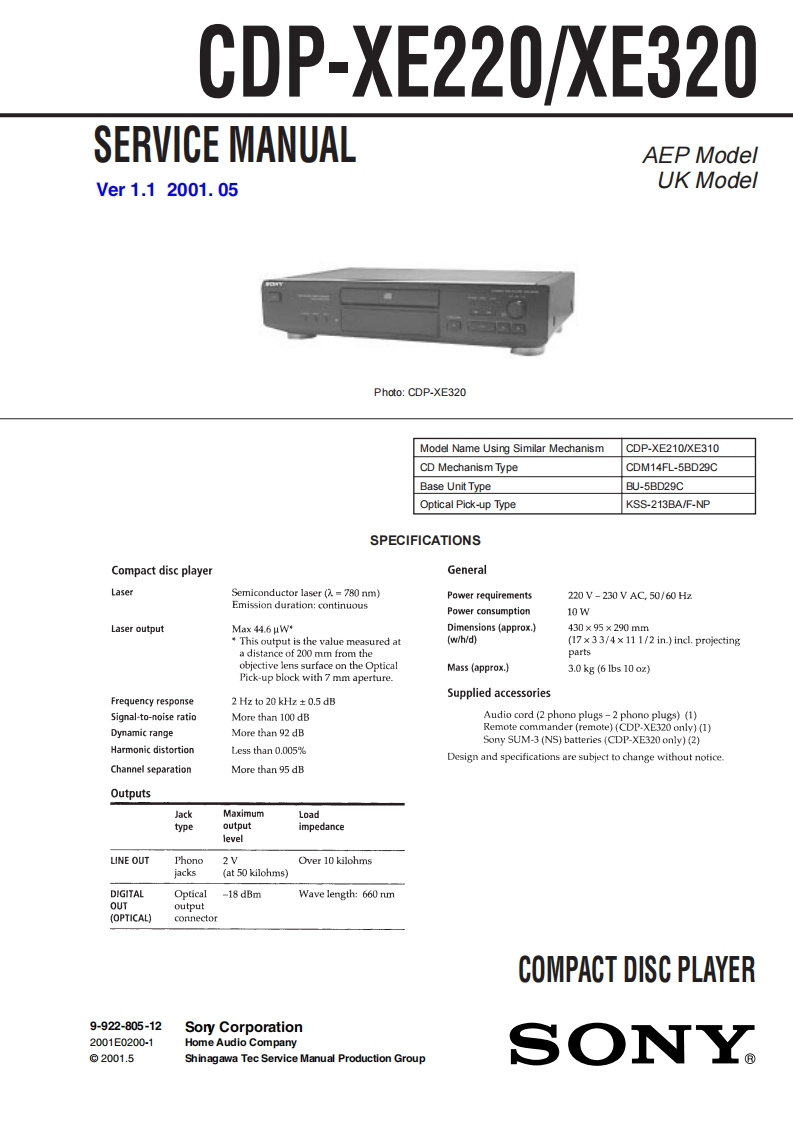

CDP-XE220/XE320SERVICE MANUALAEP ModelVer1.12001.05UK ModelPhoto:CDP-XE320Model Name Using Similar MechanismCDP-XE210/XE310CD Mechanism TypeCDM14FL-5BD29CBase Unit TypeBU-5BD29COptical Pick-up TypeKSS-213BA/F-NPSPECIFICATIONSCompact disc playerGeneralLaserSemiconductor laser (7.=780 nm)Power requirements220V-230VAC,50/60HzEmission duration:continuousPower consumption10WLaser outputMax44.6μWDimensions(approx.】430×95×290mmThis output is the value measured at(w/h/d)(17×33/4×111/2in)incl.projectinga distance of 200 mm from thepartsobjective lens surface on the OpticalMass(approx..】3.0 kg (6 Ibs 10 oz)Pick-up block with 7 mm aperture.Supplied accessoriesFrequency response2Hzto20kHz±0.5dBSignal-to-noise ratioMore than 100 dBAudio cord(2 phono plugs-2 phono plugs)(1)Dynamic rangeMore than 92 dBRemote commander (remote)(CDP-XE320 only)(1)Sony SUM-3 (NS)batteries (CDP-XE320 only)(2)Harmonic distortionLess than 0.005%Design and specifications are subject to change without notice.Channel separationMore than 95 dBOutputsJackMaximumLoadtypeoutputimpedancelevelLINE OUTPhono2VOver 10 kilohmsjacks(at 50 kilohms)DIGITALOptical-18 dBmWave length:660 nmOUToutput(OPTICAL)connectorCOMPACT DISC PLAYER9-922-805-12Sory Corporation2001E0200-1Home Audio Company@2001.5Shinagawa Tec Service Manual Production GroupSONY
