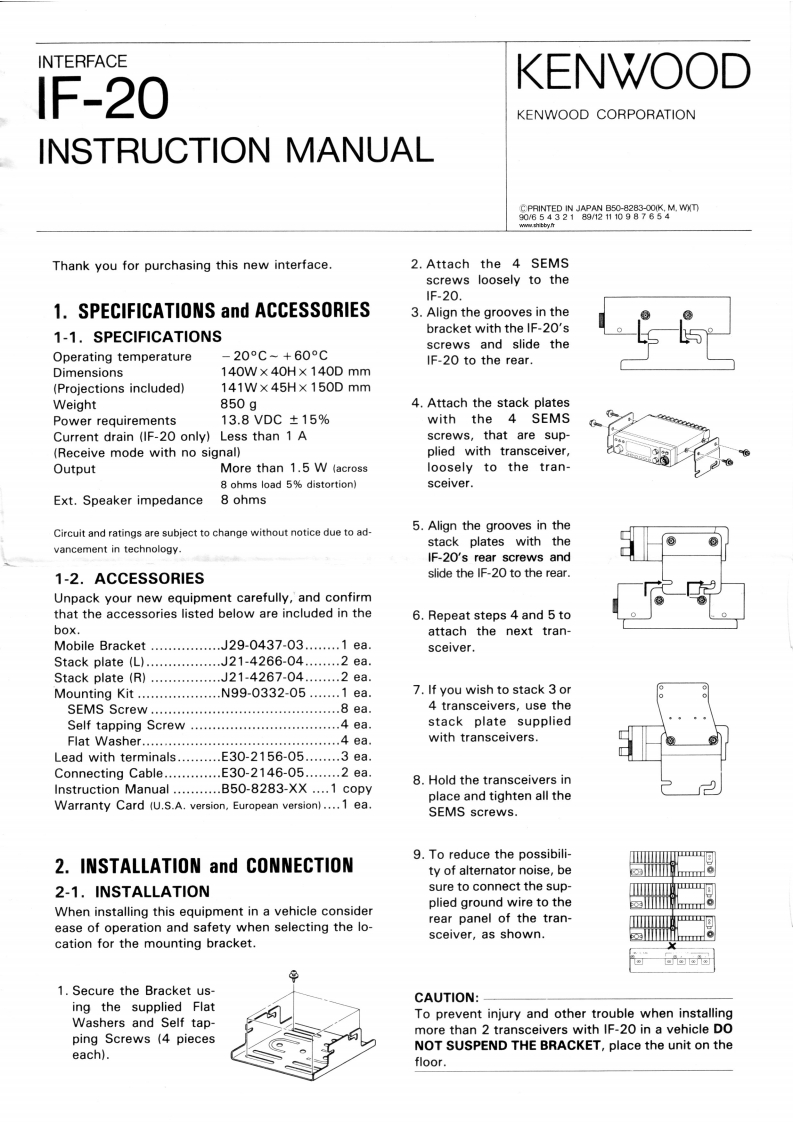

INTERFACE1F-20KENWOODKENWOOD CORPORATIONINSTRUCTION MANUALCPRINTED IN JAPAN B50-8283-00(K.M.WXT)90/65432189/121110987654www中tbyhThank you for purchasing this new interface.2.Attach the 4 SEMSscrews loosely to the1F.20.1.SPECIFICATIONS and ACCESSORIES3.Align the grooves in thebracket with the IF-20's1-1.SPECIFICATIONSscrews and slide theOperating temperature-20°C-+60°CIF-20 to the rear.Dimensions140W×40H×140Dmm(Projections included)141W×45H×150DmmWeight850g4.Attach the stack platesPower requirements13.8VDC±15%with the 4 SEMSCurrent drain (IF-20 only)Less than 1 Ascrews,that are sup-(Receive mode with no signal)plied with transceiver,OutputMore than 1.5 W (acrossloosely to the tran-8 ohms load 5%distortion)sceiver.Ext.Speaker impedance8 ohms5.Align the grooves in theCircuit and ratings are subject to change without notice due to ad-stack plates with thevancement in technology.IF-20's rear screws and1-2.ACCESSORIESslide the IF-20 to the rear.Unpack your new equipment carefully,and confirmthat the accessories listed below are included in the6.Repeat steps 4 and 5 tobox.attach the next tran-Mobile Bracket ..............29-0437-03........1 ea.sceiver.Stack plate (L).................J21-4266-04........2 ea.Stack plate (R).............J21-4267-04.2ea.Mounting Kit...................N99-0332-05.......1 ea.7.If you wish to stack 3 orSEMS Screw.............................8 ea.4 transceivers,use theSelf tapping Screw.…..4ea.stack plate suppliedFlat Washer.............4 ea.with transceivers.Lead with terminals..........E30-2156-05........3 ea.Connecting Cable.............E30-2146-05........2 ea.8.Hold the transceivers inInstruction Manual ...........B50-8283-XX ....1 copyWarranty Card (U.S.A.version,European version)....1 ea.place and tighten all theSEMS screws.2.INSTALLATION and CONNECTION9.To reduce the possibili-ty of alternator noise,be2-1.INSTALLATIONsure to connect the supplied ground wire to theWhen installing this equipment in a vehicle considerease of operation and safety when selecting the lo-rear panel of the tran-sceiver,as shown.cation for the mounting bracket.1.Secure the Bracket us-CAUTION:ing the supplied FlatWashers and Self tap-To prevent injury and other trouble when installingping Screws (4 piecesmore than 2 transceivers with IF-20 in a vehicle DONOT SUSPEND THE BRACKET,place the unit on theeach).floor.
