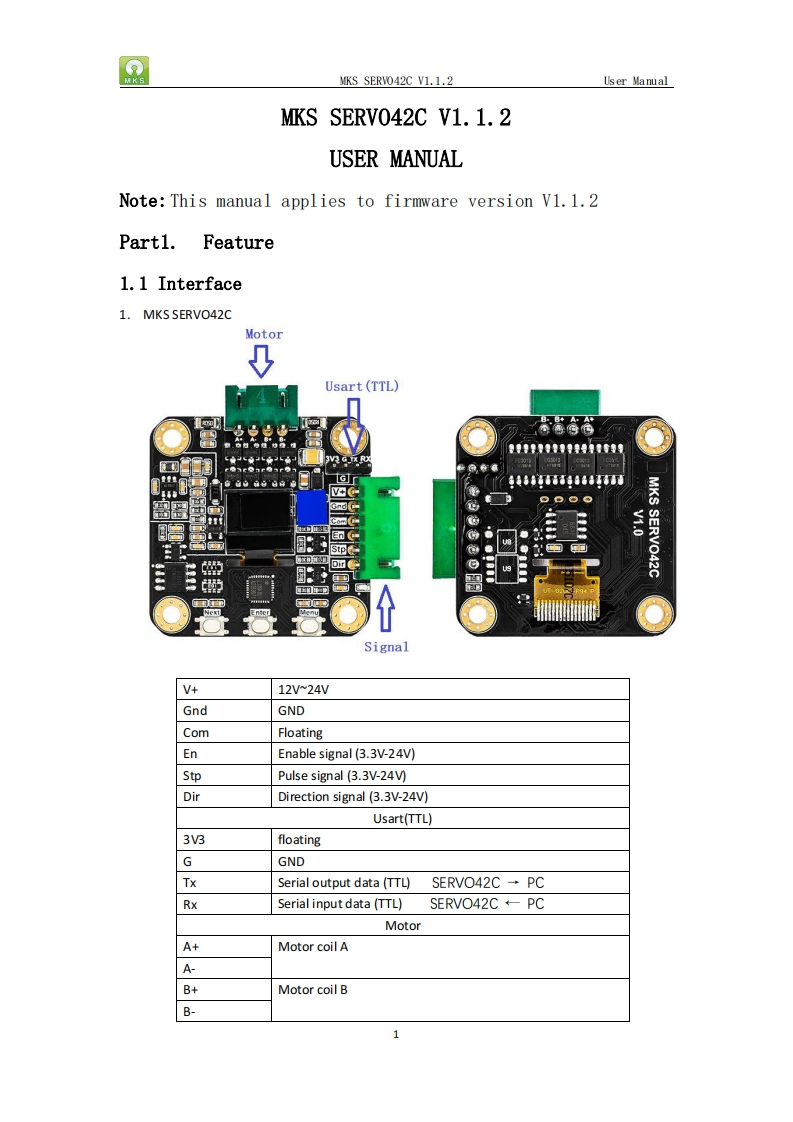

MKS SERVO42C V1.1.2User ManualMKS SERV042C V1.1.2USER MANUALNote:This manual applies to firmware version V1.1.2Part1.Feature1.1 Interface1.MKS SERVO42CMotorUsart(TTL)里00129999991是专9月4668V+C1.0StpMKS SERVO42C岛SignalV+12V24VGndGNDComFloatingEnEnable signal (3.3V-24V)StpPulse signal (3.3V-24V)DirDirection signal (3.3V-24V)Usart(TTL)3V3floatingGGNDTxSerial output data (TTL)SERVO42C -PCRxSerial input data (TTL)SERVO42C←-PCMotorA+Motor coil AAB+Motor coil BB-
