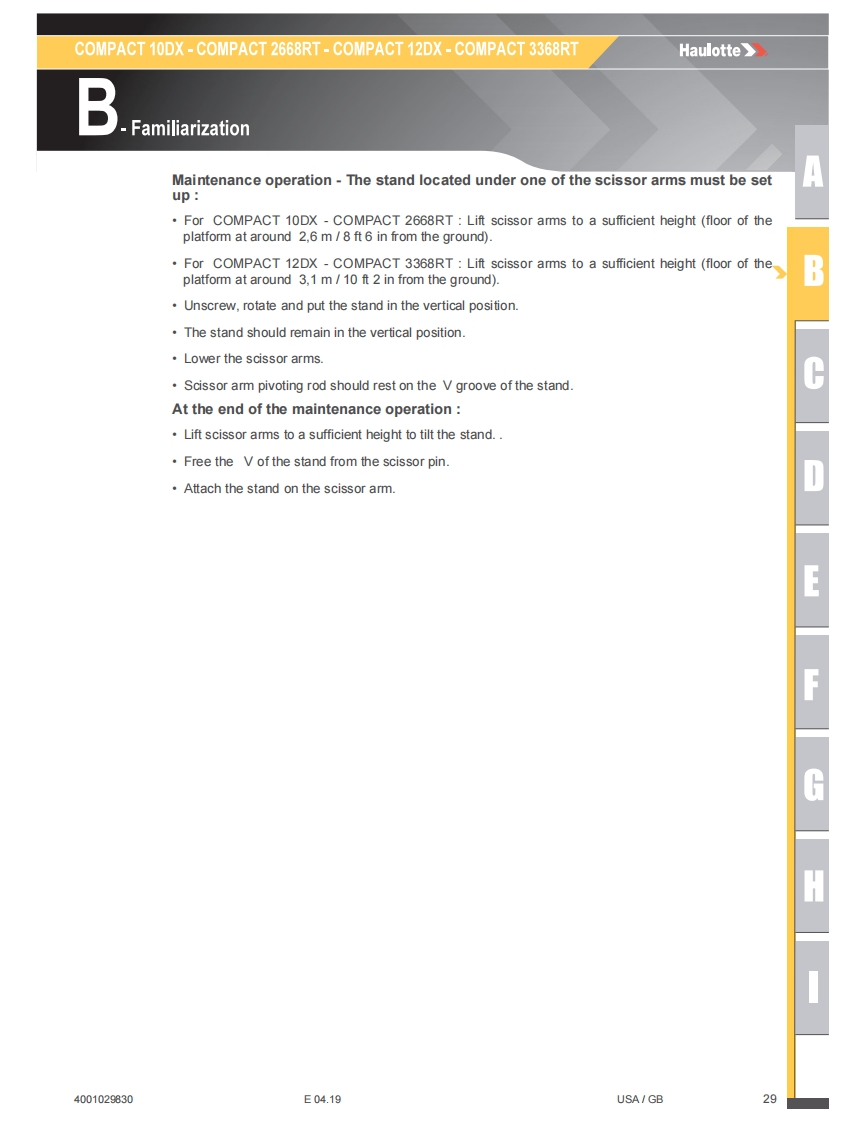

COMPACT 10DX-COMPACT 2668RT-COMPACT 12DX-COMPACT 3368RTHaulotteBFamiliarizationMaintenance operation-The stand located under one of the scissor arms must be setup:For COMPACT 10DX -COMPACT 2668RT:Lift scissor arms to a sufficient height(floor of theplatform at around 2,6 m/8 ft 6 in from the ground).For COMPACT 12DX-COMPACT 3368RT:Lift scissor arms to a sufficient height(floor of theplatform at around 3,1 m/10 ft 2 in from the ground).Unscrew,rotate and put the stand in the vertical position.The stand should remain in the vertical position.Lower the scissor arms.Scissor arm pivoting rod should rest on the V groove of the stand.At the end of the maintenance operationLift scissor arms to a sufficient height to tilt the stand..Free the V of the stand from the scissor pin.Attach the stand on the scissor arm.EH4001029830E04.19USA/GB29
