3632operations操作与维护手册

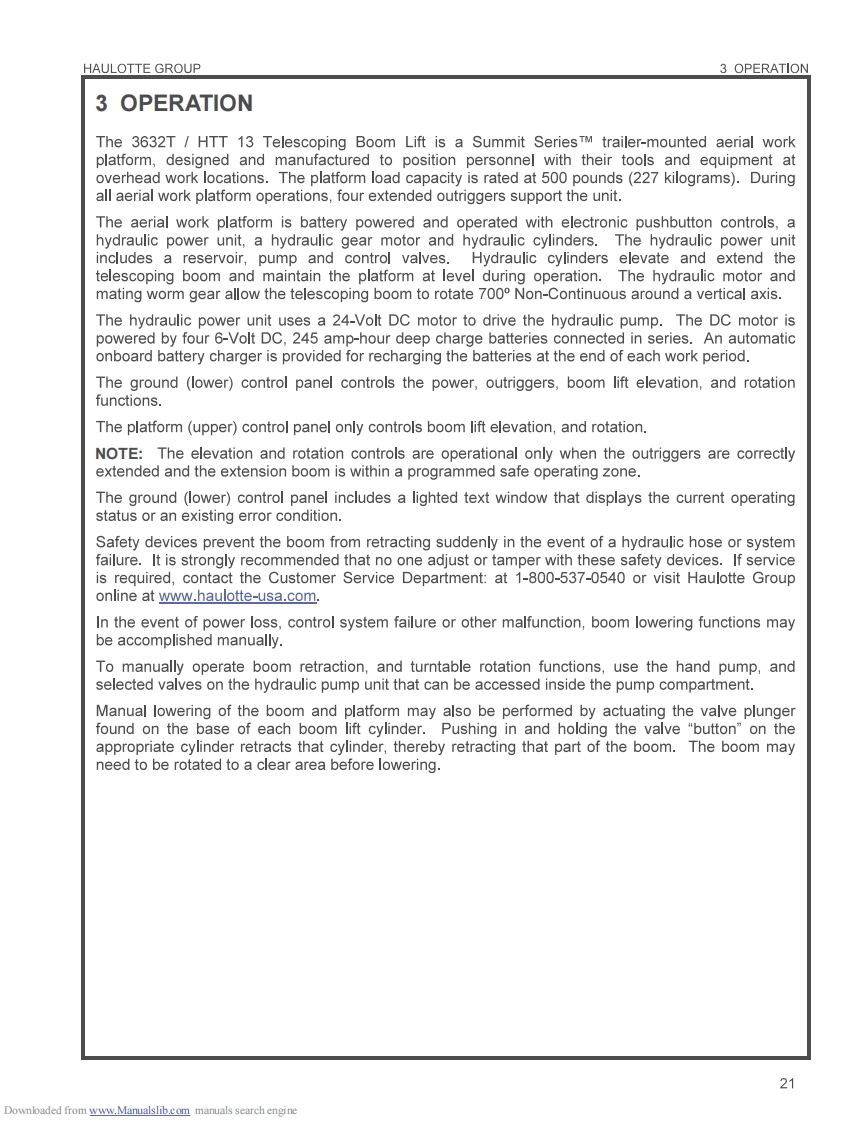

HAULOTTE GROUP3 OPERATION3 OPERATIONThe 3632T HTT 13 Telescoping Boom Lift is a Summit SeriesTM trailer-mounted aerial workplatform,designed and manufactured to position personnel with their tools and equipment atoverhead work locations.The platform load capacity is rated at 500 pounds(227 kilograms).Duringall aerial work platform operations,four extended outriggers support the unit.The aerial work platform is battery powered and operated with electronic pushbutton controls,ahydraulic power unit,a hydraulic gear motor and hydraulic cylinders.The hydraulic power unitincludes a reservoir,pump and control valves.Hydraulic cylinders elevate and extend thetelescoping boom and maintain the platform at level during operation.The hydraulic motor andmating worm gear allow the telescoping boom to rotate 700 Non-Continuous around a vertical axis.The hydraulic power unit uses a 24-Volt DC motor to drive the hydraulic pump.The DC motor ispowered by four 6-Volt DC,245 amp-hour deep charge batteries connected in series.An automaticonboard battery charger is provided for recharging the batteries at the end of each work period.The ground (lower)control panel controls the power,outriggers,boom lift elevation,and rotationfunctions.The platform (upper)control panel only controls boom lift elevation,and rotation.NOTE:The elevation and rotation controls are operational only when the outriggers are correctlyextended and the extension boom is within a programmed safe operating zone.The ground (lower)control panel includes a lighted text window that displays the current operatingstatus or an existing error condition.Safety devices prevent the boom from retracting suddenly in the event of a hydraulic hose or systemfailure.It is strongly recommended that no one adjust or tamper with these safety devices.If serviceis required,contact the Customer Service Department:at 1-800-537-0540 or visit Haulotte Grouponline at www.haulotte-usa.com.In the event of power loss,control system failure or other malfunction,boom lowering functions maybe accomplished manually.To manually operate boom retraction,and turntable rotation functions,use the hand pump,andselected valves on the hydraulic pump unit that can be accessed inside the pump compartment.Manual lowering of the boom and platform may also be performed by actuating the valve plungerfound on the base of each boom lift cylinder.Pushing in and holding the valve "button"on theappropriate cylinder retracts that cylinder,thereby retracting that part of the boom.The boom mayneed to be rotated to a clear area before lowering.21Downloaded from www.Manualslibcom manuals search engine
