Instrukciya-po-zagruzke-izobrazheniy-v-monitorySTEPR-JT-RD-23-07-用户操作手册（新时达图片机素材编辑及更新方法）1

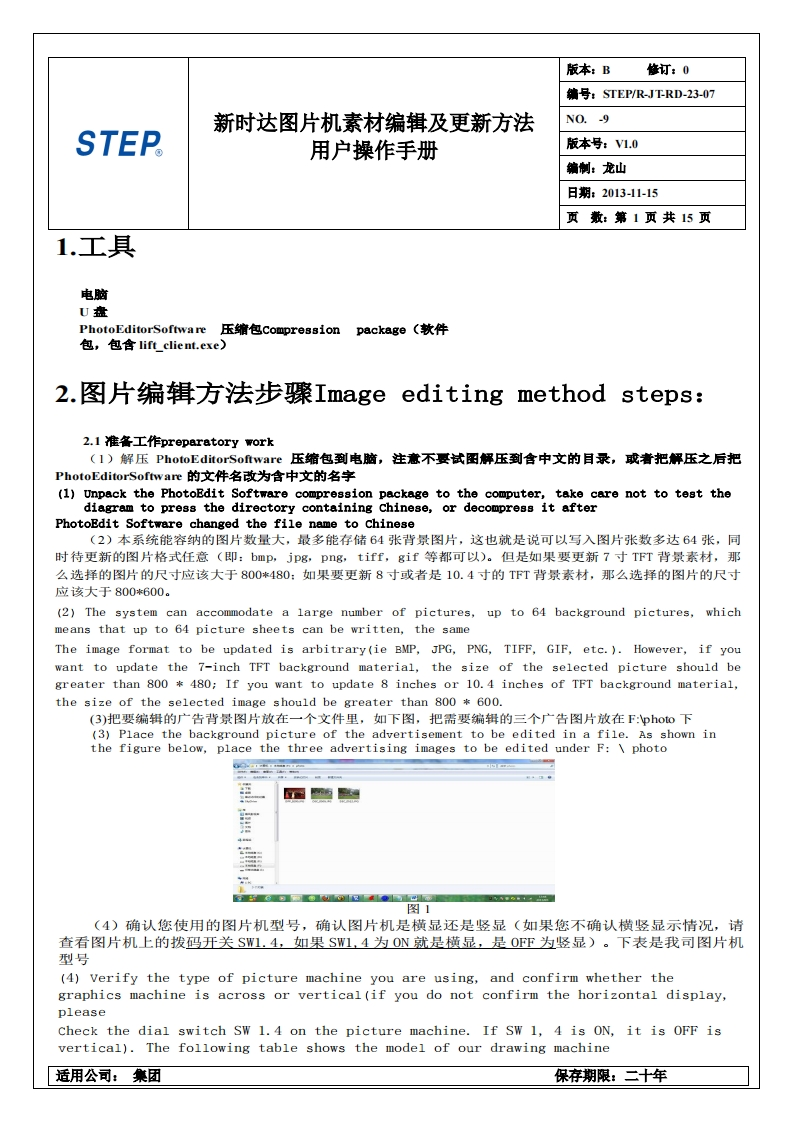

版本：B修订：0猜号：STEP/R-JTRD-23-07新时达图片机素材编辑及更新方法N0.-9STEP用户操作手册版本号：V1.0编制：龙山日期：2013-11-15页戴：第1页共15页1.工具电脑U盘PhotoEditorSoftware压缩包Compressionpackage(款件包，包含lift client..exe)2.图片编辑方法步骤Image editing method steps:2.l准备工作preparatory work(1)解压PhotoEditorSoftware压缩包到电脑，注意不要试图解压到含中文的目录，或者把解压之后把PhotoEditorSoftware的文件名改为含中文的名字(1)Unpack the PhotoEdit Software compression package to the computer,take care not to test thediagram to press the directory containing Chinese,or decompress it afterPhotoEdit Software changed the file name to chinese(2)本系统能容纳的图片数量大，最多能存储64张背景图片，这也就是说可以写入图片张数多达64张，同时待更新的图片格式任意（即：bmp,jPg,png,tiff,gif等都可以）。但是如果要更新7寸TFT背景素材，那么选择的图片的尺寸应该大于800*480：如果要更新8寸或者是10.4寸的T℉T背景素材，那么选择的图片的尺寸应该大于800*600。(2)The system can accommodate a large number of pictures,up to 64 background pictures,whichmeans that up to 64 picture sheets can be written,the sameThe image format to be updated is arbitrary(ie BMP,JPG,PNG,TIFF,GIF,etc.)However,if youwant to update the 7-inch TFT background material,the size of the selected picture should begreater than 800 480;If you want to update 8 inches or 10.4 inches of TFT background material,the size of the selected image should be greater than 800 600.(3)把要编辑的广告背景图片放在一个文件里，如下图，把需要编辑的三个广告图片放在F:poto下(3)Place the background picture of the advertisement to be edited in a file.As shown inthe figure below,place the three advertising images to be edited under F:photo图1(4)确认您使用的图片机型号，确认图片机是横显还是竖显（如果您不确认横竖显示情况，请查看图片机上的拨码开关SW1.4,如果SW1,4为ON就是横显，是OF℉为竖显)。下表是我司图片机型号(4)Verify the type of picture machine you are using,and confirm whether thegraphics machine is across or vertical(if you do not confirm the horizontal display,pleaseCheck the dial switch SW 1.4 on the picture machine.If SW 1,4 is ON,it is OFF isvertical).The following table shows the model of our drawing machine适用公司：集团保存期限：二十年
