Sony_MDP-K3_Service.Manual维修手册

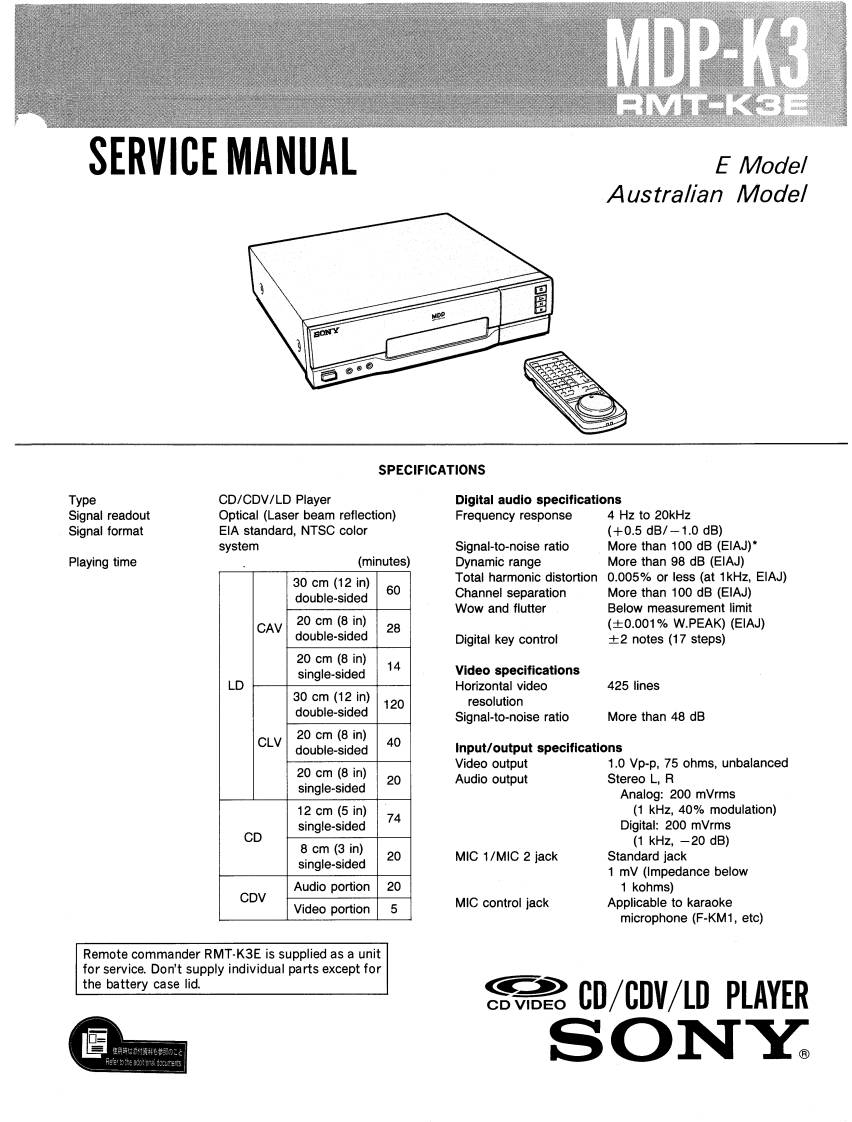

MDP-K3SERVICE MANUALE ModelAustralian ModelSPECIFICATIONSTypeCD/CDV/LD PlayerDigital audio specificationsSignal readoutOptical(Laser beam reflection)Frequency response4 Hz to 20kHzSignal formatEIA standard,NTSC color(+0.5dB/-1.0dB)systemSignal-to-noise ratioMore than 100 dB (EIAJ)*Playing time(minutes)Dynamic rangeMore than 98 dB (EIAJ)30cm(12in)Total harmonic distortion 0.005%or less (at 1kHz,EIAJ)60double-sidedChannel separationMore than 100 dB (EIAJ)Wow and flutterBelow measurement limit20 cm (8 in)CAV28(0.001%W.PEAK)(EIAJ)double-sidedDigital key control±2 notes(17 steps)20 cm (8 in)single-sidedVideo specificationsLDHorizontal video425 lines30cm(12in)120resolutiondouble-sidedSignal-to-noise ratioMore than 48 dBCLV20 cm (8 in)40double-sidedInput/output specificationsVideo output1.0 Vp-p,75 ohms,unbalanced20 cm (8 in)20Audio outputStereo L,Rsingle-sidedAnalog:200 mVrms12 cm (5 in)(1 kHz,40%modulation)74single-sidedDigital:200 mVrmsCD(1 kHz,-20 dB)8 cm (3 in)20MIC 1/MIC 2 jackStandard jacksingle-sided1 mV(Impedance belowAudio portion201 kohms)CDVVideo portionMIC control jackApplicable to karaokemicrophone (F-KM1,etc)Remote commander RMT-K3E is supplied as a unitfor service.Don't supply individual parts except forthe battery case lid.CD/CDV/LD PLAYER性明时科毛20。SONY如这aE
