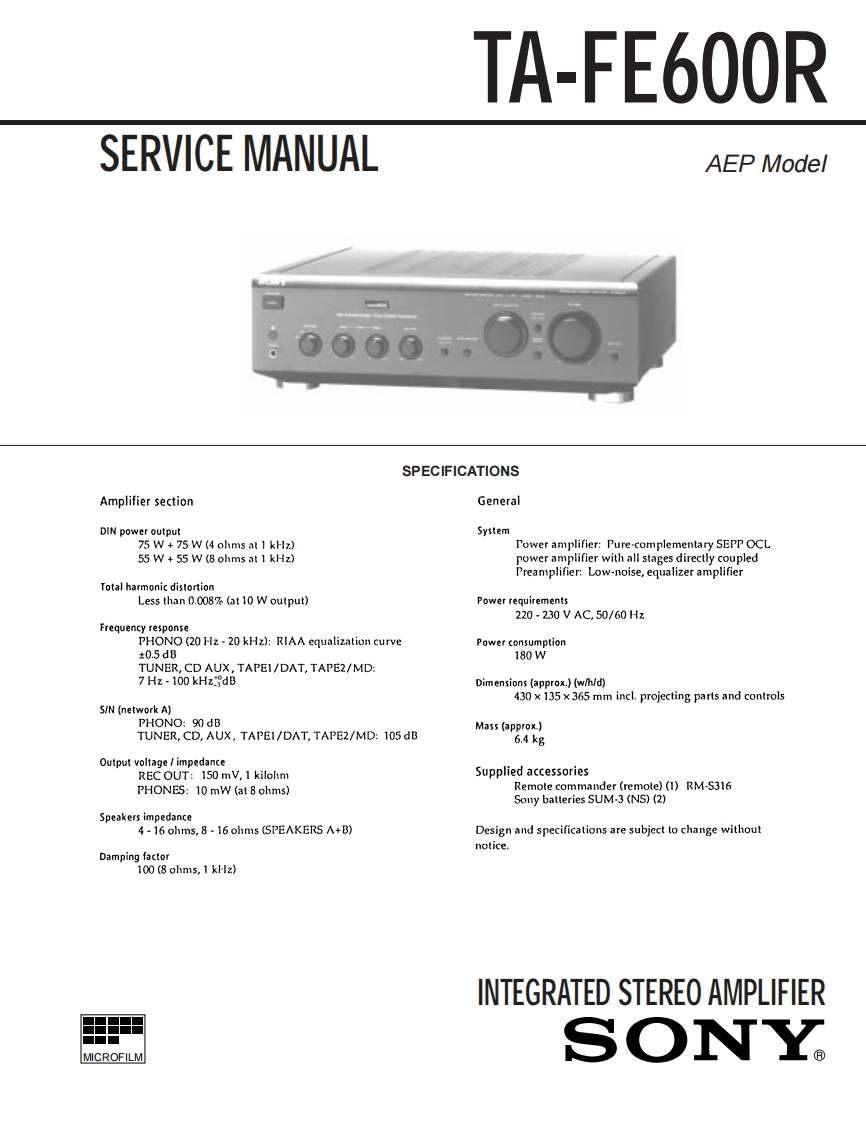

TA-FE600RSERVICE MANUALAEP ModelSPECIFICATIONSAmplifier sectionGeneralDIN power outputSystem75 W+75 W(4 ohms at 1 kHz)Power amplifier:Pure-complementary SEPP OCL55 W+55 W(8 ohms at 1 kHz)power amplifier with all stages directly coupledPreamplifier:Low-noise,equalizer amplifierTotal harmonic distortionLess than 0.008%(at 10 W output)Power requirements220-230VAC,50/60HzFrequency responsePHONO (20 Hz-20 kHz):RIAA equalization curvePower consumption±0.5dB180WTUNER,CD AUX,TAPEI/DAT,TAPE2/MD:7 Hz -100 kHzdBDimensions (approx.)(w/h/d)430 x 135x 365 mm incl.projecting parts and controlsS/N (network A)PHONO:90 dBMass (approx.)TUNER,CD,AUX,TAPE1/DAT,TAPE2/MD:105 dB6.4kgOutput voltage impedanceREC OUT:150 mV,1 kilohmSupplied accessoriesPHONES:10 mW (at 8 ohms)Remote commander (remote)(1)RM-S316Sony batteries SUM-3 (NS)(2)Speakers impedance4-16 ohms,8-16 ohms (SPEAKERS A+B)Design and specifications are subject to change withoutnotice.Damping factor100(8ohm5,1kHz)INTEGRATED STEREO AMPLIFIERMICROFILMSONY
