FT-1000MP-MARK-V_维修电器原理图手册

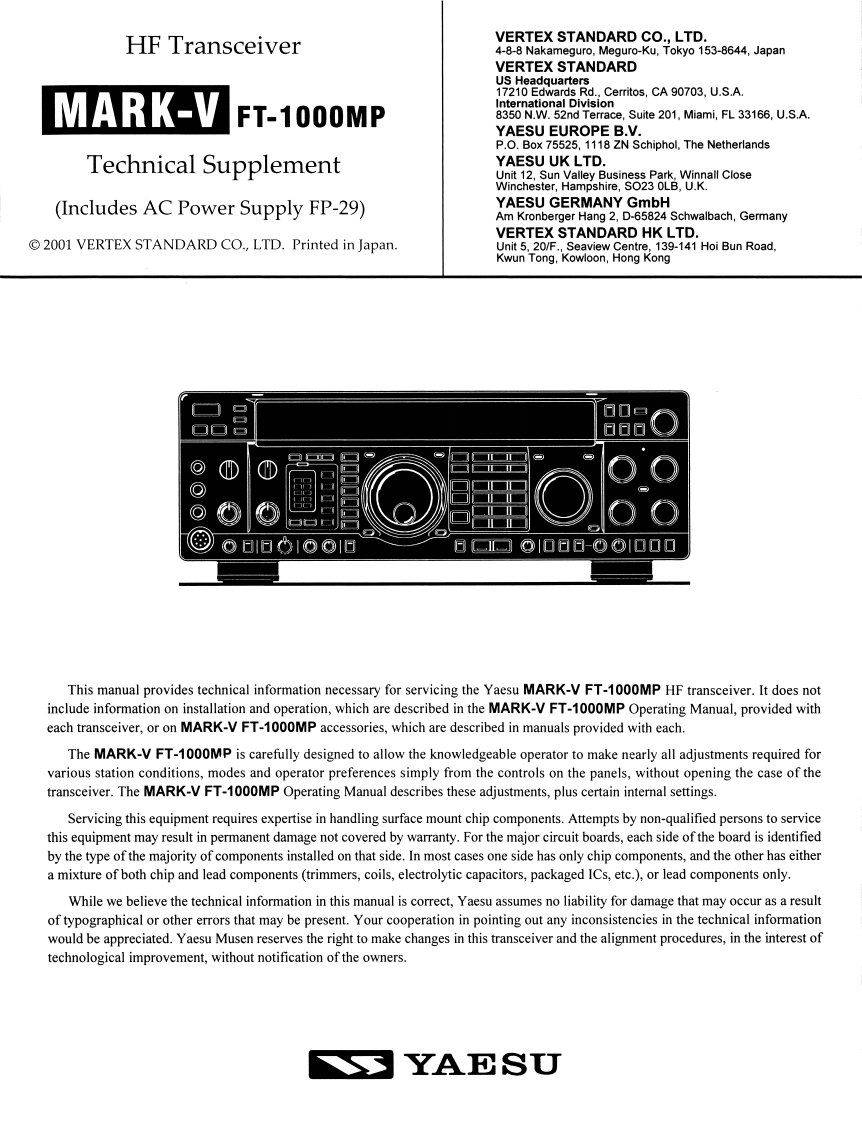

HF TransceiverVERTEX STANDARD CO.,LTD.4-8-8 Nakameguro,Meguro-Ku,Tokyo 153-8644,JapanVERTEX STANDARDUS Headquarters17210 Edwards Rd.,Cerritos,CA 90703.U.S.A.MARK-VFT-1000MPInternational Division8350 N.W.52nd Terrace,Suite 201,Miami,FL 33166,U.S.A.YAESU EUROPE B.V.P.O.Box 75525,1118 ZN Schiphol,The NetherlandsTechnical SupplementYAESU UK LTD.Unit 12,Sun Valley Business Park.Winnall CloseWinchester,Hampshire,SO23 0LB,U.K.(Includes AC Power Supply FP-29)YAESU GERMANY GmbHAm Kronberger Hang 2,D-65824 Schwalbach,GermanyVERTEX STANDARD HK LTD.2001 VERTEX STANDARD CO.,LTD.Printed in Japan.Unit 5,20/F..Seaview Centre,139-141 Hoi Bun Road,Kwun Tong,Kowloon,Hong Kong日☐旦日日日@日I日|@○1日日L⑨1▣日日-©④1口口口This manual provides technical information necessary for servicing the Yaesu MARK-V FT-1000MP HF transceiver.It does notinclude information on installation and operation,which are described in the MARK-V FT-1000MP Operating Manual,provided witheach transceiver,or on MARK-V FT-1000MP accessories,which are described in manuals provided with each.The MARK-V FT-1000MP is carefully designed to allow the knowledgeable operator to make nearly all adjustments required forvarious station conditions,modes and operator preferences simply from the controls on the panels,without opening the case of thetransceiver.The MARK-V FT-1000MP Operating Manual describes these adjustments,plus certain internal settings.Servicing this equipment requires expertise in handling surface mount chip components.Attempts by non-qualified persons to servicethis equipment may result in permanent damage not covered by warranty.For the major circuit boards,each side of the board is identifiedby the type of the majority of components installed on that side.In most cases one side has only chip components,and the other has eithera mixture of both chip and lead components(trimmers,coils,electrolytic capacitors,packaged ICs,etc.),or lead components only.While we believe the technical information in this manual is correct,Yaesu assumes no liability for damage that may occur as a resultof typographical or other errors that may be present.Your cooperation in pointing out any inconsistencies in the technical informationwould be appreciated.Yaesu Musen reserves the right to make changes in this transceiver and the alignment procedures,in the interest oftechnological improvement,without notification of the owners.YAESU
