CMZ900-MANUAL操作说明书手册

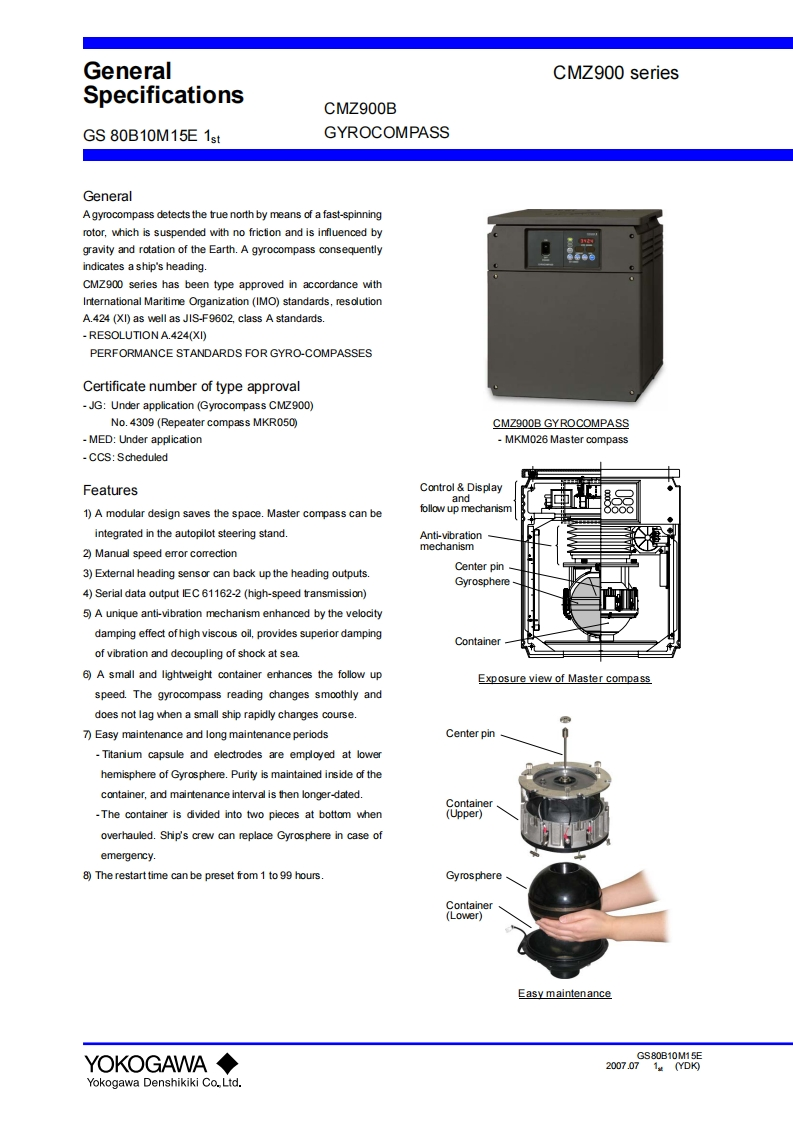

GeneralCMZ900 seriesSpecificationsCMZ900BGS 80B10M15E 1stGYROCOMPASSGeneralAgyrocompass detects the true north by means of a fast-spinningrotor,which is suspended with no friction and is influenced bygravity and rotation of the Earth.A gyrocompass consequentlyindicates a ship's heading.CMZ900 series has been type approved in accordance withInternational Maritime Organization (IMO)standards,resolutionA.424 (XI)as well as JIS-F9602,class A standards.-RESOLUTION A.424(XⅫPERFORMANCE STANDARDS FOR GYRO-COMPASSESCertificate number of type approval-JG:Under application (Gyrocompass CMZ900)No.4309 (Repeater compass MKR050)CMZ900B GYROCOMPASSMED:Under applicationMKM026 Master compass-CCS:ScheduledFeaturesControl Displayand1)A modular design saves the space.Master compass can befollow up mechanismintegrated in the autopilot steering stand.Anti-vibration2)Manual speed error correctionmechanism3)External heading sensor can back up the heading outputs.Center pinGyrosphere4)Serial data output IEC 61162-2(high-speed transmission)5)A unique anti-vibration mechanism enhanced by the velocitydamping effect ofhigh viscous oil,provides superior dampingContainerof vibration and decoupling of shock at sea.6)A small and lightweight container enhances the follow upExposure view of Master compassspeed.The gyrocompass reading changes smoothly anddoes not lag when a small ship rapidly changes course.7 Easy maintenance and long maintenance periodsCenter pinTitanium capsule and electrodes are employed at lowerhemisphere of Gyrosphere.Purity is maintained inside of thecontainer,and maintenance interval is then longer-dated.Container-The container is divided into two pieces at bottom when(Upper)overhauled.Ship's crew can replace Gyrosphere in case ofemergency.8)The restart time can be preset from 1 to 99 hours.GyrosphereContainer(Lower)Easy maintenanceYOKOGAWA◆GS80B10M15E2007.071gYD0Yokogawa Denshikiki Co.Ltd.
