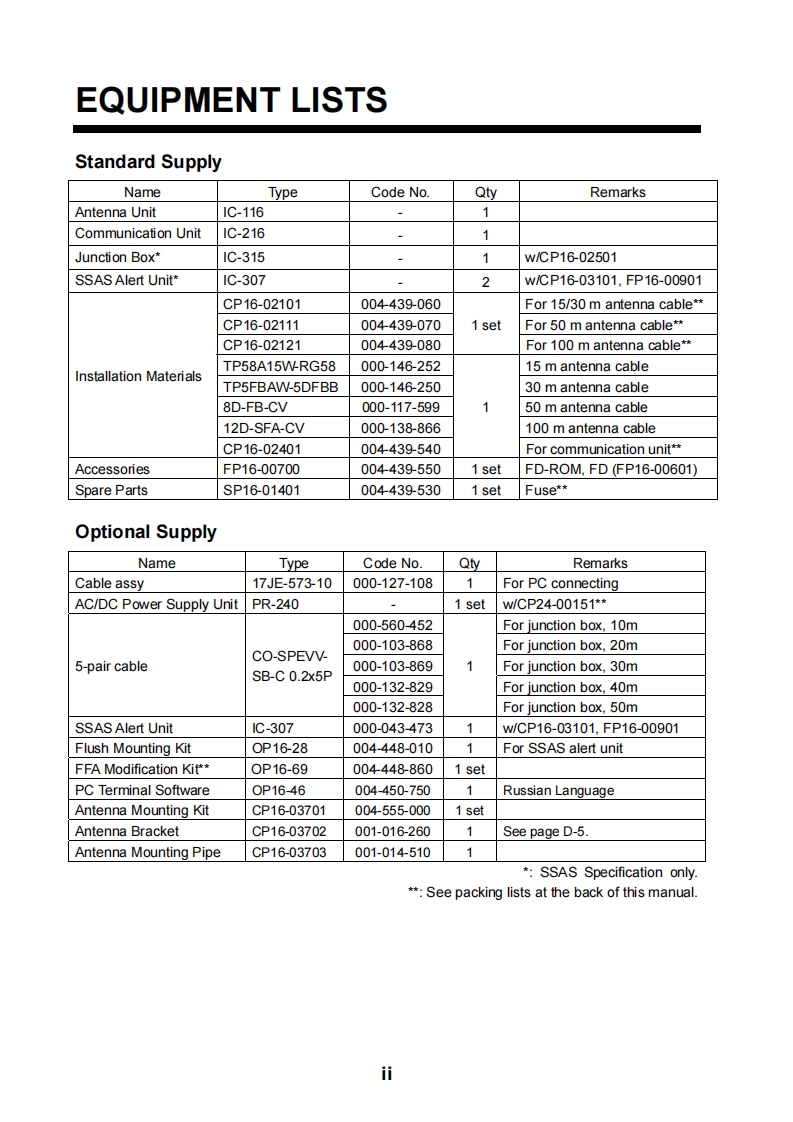

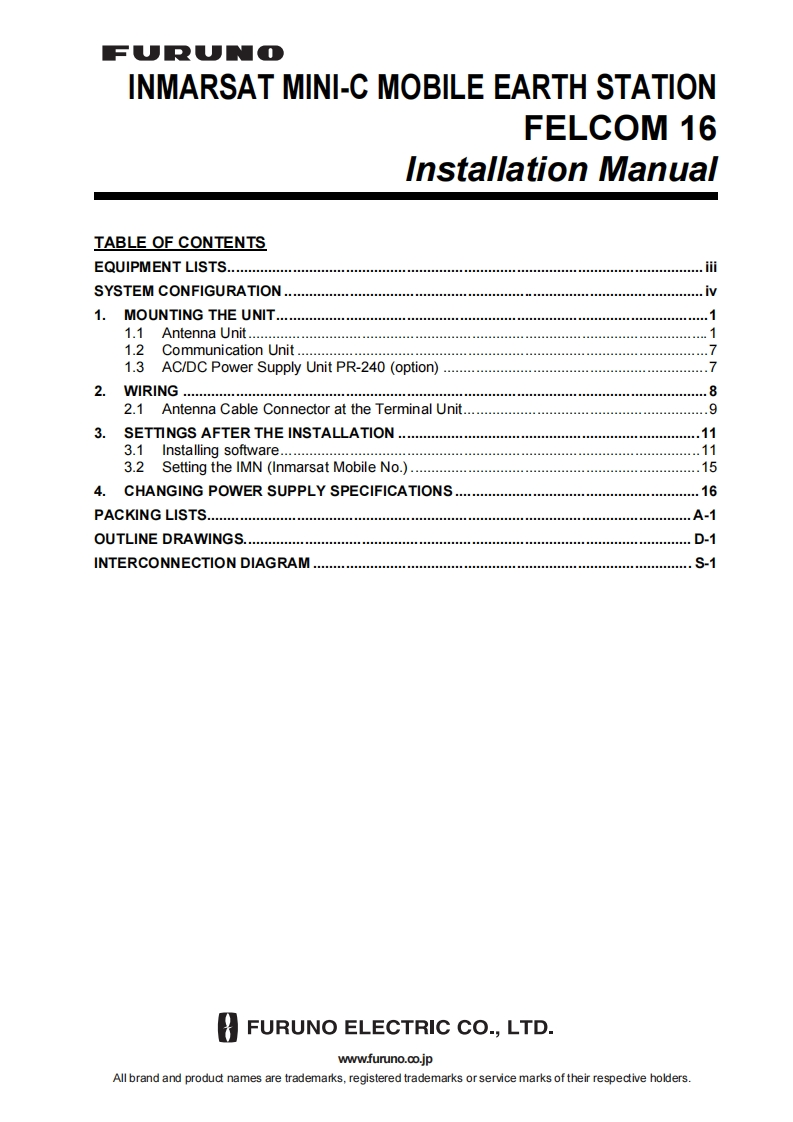

FURUNOINMARSAT MINI-C MOBILE EARTH STATIONFELCOM 16Installation ManualTABLE OF CONTENTSEQUIPMENT LISTS.…..iSYSTEM CONFIGURATION............1.MOUNTING THE UNIT…11.1 Antenna Unit.…1.2 Communication Unit.....11.3 AC/DC Power Supply Unit PR-240 (option)........7.7.82.1 Antenna Cable Connector at the Terminal Unit....93.SETTINGS AFTER THE INSTALLATION..............113.1 Installing software.................3.2 Setting the IMN(Inmarsat Mobile No.).....11.154.CHANGING POWER SUPPLY SPECIFICATIONS.16PACKING LISTS…A-1OUTLINE DRAWINGS....D-1INTERCONNECTION DIAGRAM.....S-1FURUNO ELECTRIC CO.,LTD.www.furuno.co.jpAll brand and product names are trademarks,registered trademarks or service marks of their respective holders.
