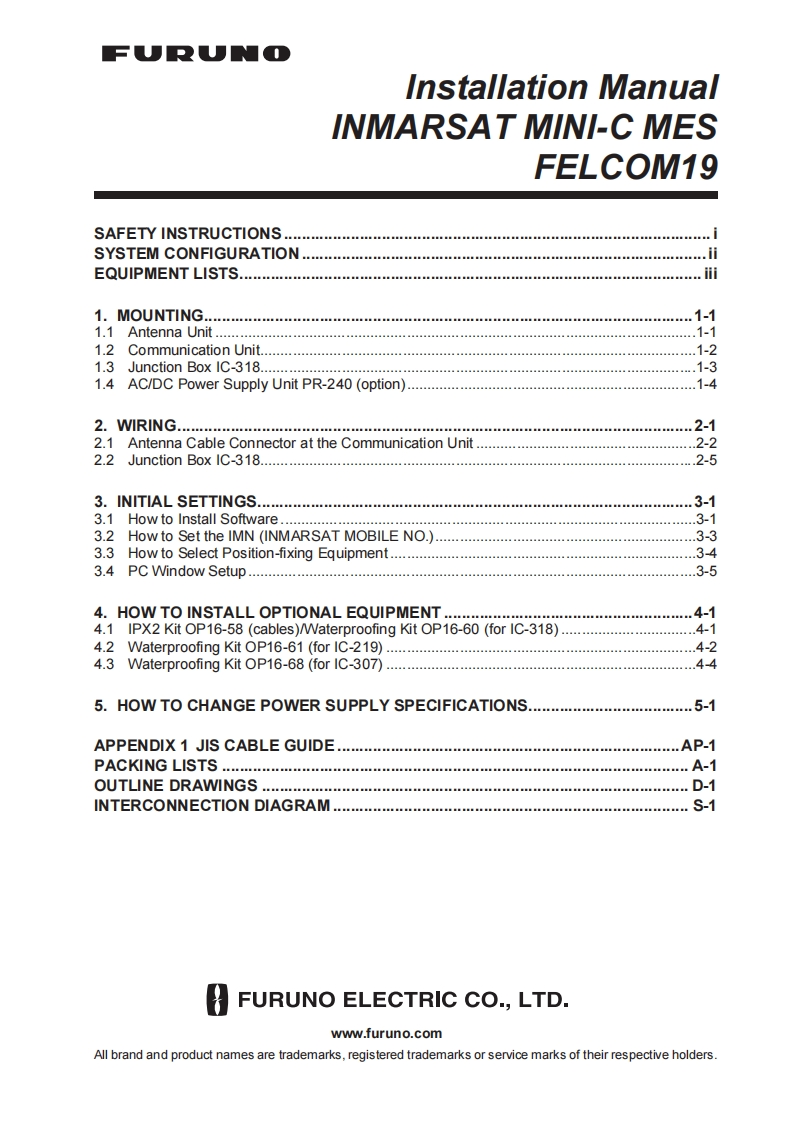

Installation ManualINMARSAT MINI-C MESFELCOM19SAFETY INSTRUCTIONS.......................SYSTEM CONFIGURATION..................EQUIPMENT LISTS.................1.MOUNTING.…..1-11.1 Antenna Unit..….1-11.2Communication Unit......1-21.3 Junction Box IC-318..........1-31.4AC/DC Power Supply Unit PR-240 (option)......1-42.NIRING….2-12.1 Antenna Cable Connector at the Communication Unit2-22.2 Junction Box IC-318......................2-53.INITAL SETTINGS.3-13.1 How to Install Software........3-13.2 How to Set the IMN (INMARSAT MOBILE NO.)......................3-33.3 How to Select Position-fixing Equipment...343.4PCWindow Setup3-54.HOW TO INSTALL OPTIONAL EQUIPMENT............4-14.1 IPX2 Kit OP16-58 (cables)/Waterproofing Kit OP16-60(for IC-318)................................4-14.2 Waterproofing Kit OP16-61 (for IC-219).......................4-24.3Waterproofing Kit OP16-68 (for IC-307).4-45.HOW TO CHANGE POWER SUPPLY SPECIFICATIONS........5-1APPENDIX 1 JIS CABLE GUIDE..............AP-1PACKING LISTS...........A-1OUTLINE DRAWINGS.....................D-1INTERCONNECTION DIAGRAM.............S-1FURUNO ELECTRIC CO.,LTD.www.furuno.comAll brand and product names are trademarks,registered trademarks or service marks of their respective holders.
