ASME-ANSI-B16.9-Wrought-Steel-Butt-Weld-Fittings

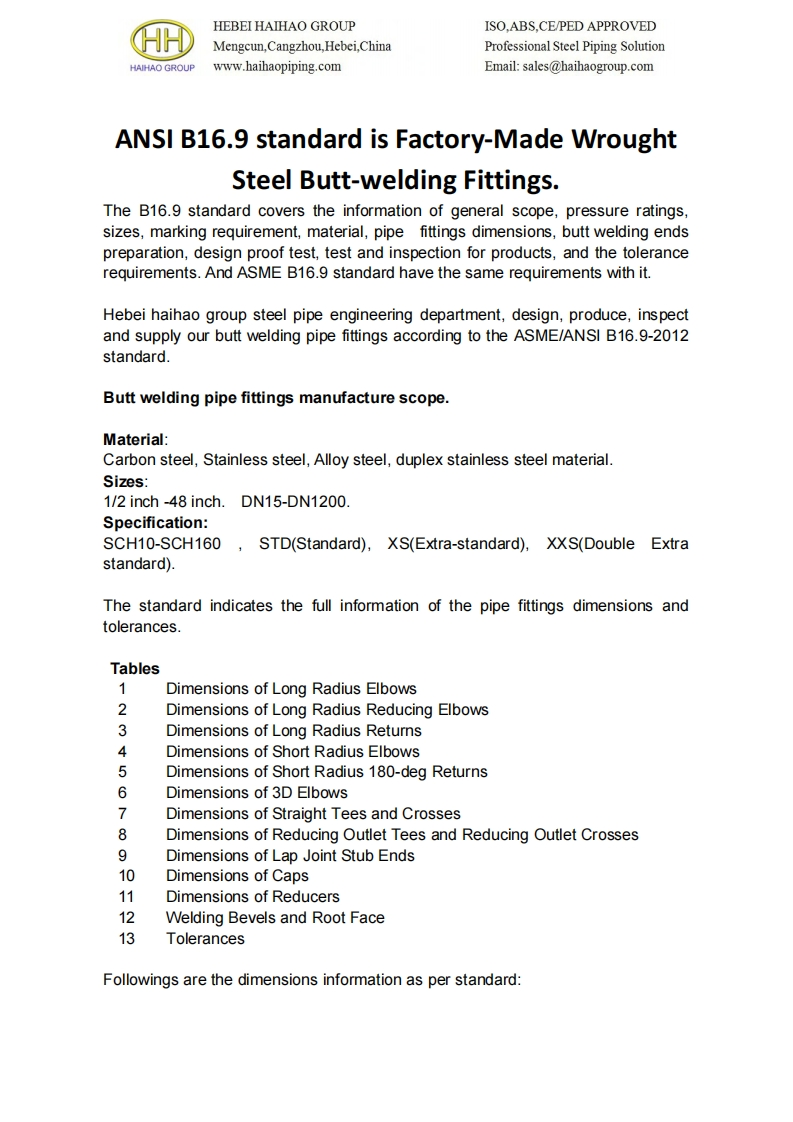

HEBEI HAIHAO GROUPISO.ABS,CE/PED APPROVEDMengcun,Cangzhou,Hebei.ChinaProfessional Steel Piping SolutionHAIHAO GROUPwww.haihaopiping.comEmail:sales@haihaogroup.comANSI B16.9 standard is Factory-Made WroughtSteel Butt-welding Fittings.The B16.9 standard covers the information of general scope,pressure ratingssizes,marking requirement,material,pipe fittings dimensions,butt welding endspreparation,design proof test,test and inspection for products,and the tolerancerequirements.And ASME B16.9 standard have the same requirements with it.Hebei haihao group steel pipe engineering department,design,produce,inspectand supply our butt welding pipe fittings according to the ASME/ANSI B16.9-2012standard.Butt welding pipe fittings manufacture scope.Material:Carbon steel,Stainless steel,Alloy steel,duplex stainless steel material.Sizes:1/2 inch -48 inch.DN15-DN1200.Specification:SCH10-SCH160,STD(Standard),XS(Extra-standard),XXS(Double Extrastandard).The standard indicates the full information of the pipe fittings dimensions andtolerances.Tables7Dimensions of Long Radius ElbowsDimensions of Long Radius Reducing Elbows3Dimensions of Long Radius Returns4Dimensions of Short Radius ElbowsDimensions of Short Radius 180-deg Returns6Dimensions of 3D Elbows7Dimensions of Straight Tees and Crosses6Dimensions of Reducing Outlet Tees and Reducing Outlet Crosses9Dimensions of Lap Joint Stub Ends10Dimensions of Caps11Dimensions of Reducers12Welding Bevels and Root Face13TolerancesFollowings are the dimensions information as per standard:
