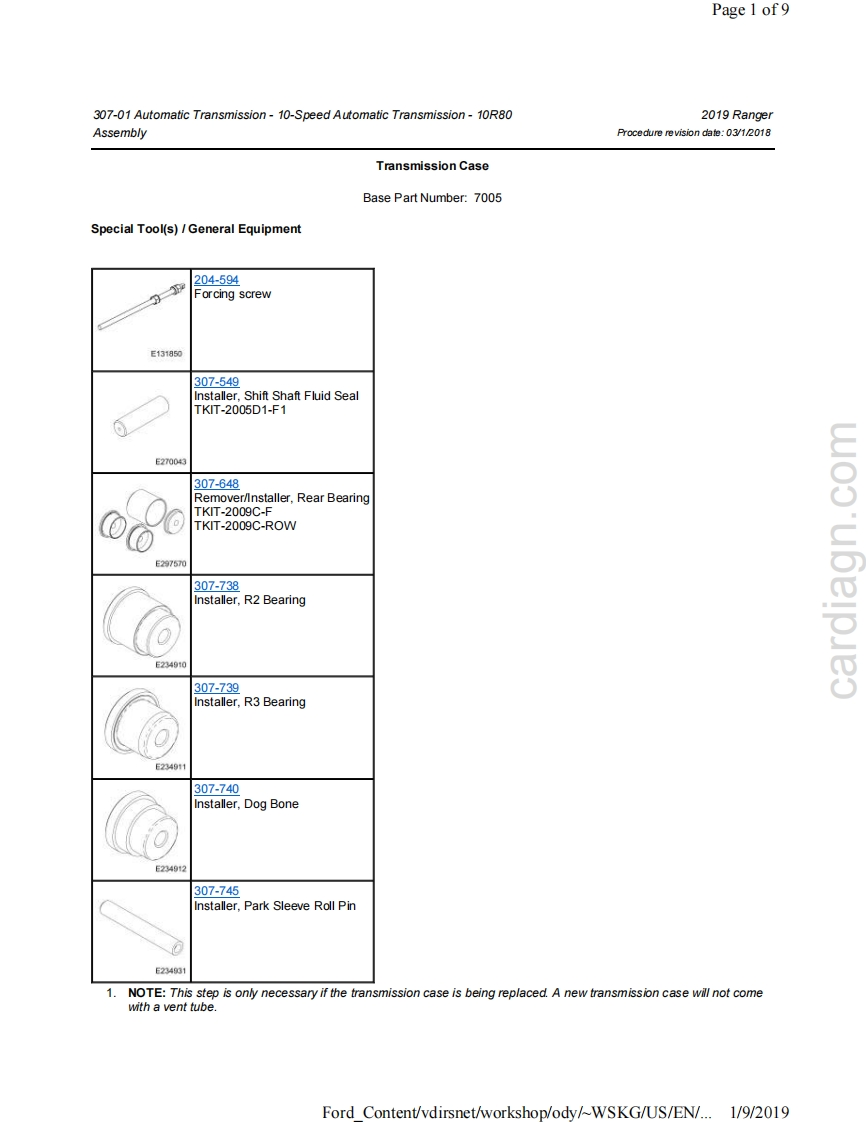

Page 1 of9307-01 Automatic Transmission-10-Speed Automatic Transmission-10R802019 RangerAssemblyProcedure revision date:03/1/2018Transmission CaseBase Part Number:7005Special Tool(s)/General Equipment204-594Forcing screwE13185307-549nstaller.Shift Shaft Fluid SealTKT-2005D1-F1yE270043307-648Remover/Installer,Rear BearingTKIT-2009C-FTKIT-2009C-ROWE29757307-738Installer,R2 BearingE234910307-739Installer,R3 BearingE224011307-740Installer.Dog BoneE234912307-745Installer.Park Sleeve Roll PinE2349311.NOTE:This step is only necessary if the transmission case is being replaced.A new transmission case will not comewith a vent tube.Ford Content/vdirsnet/workshop/odv/WSKG/US/EN/...1/9/2019
