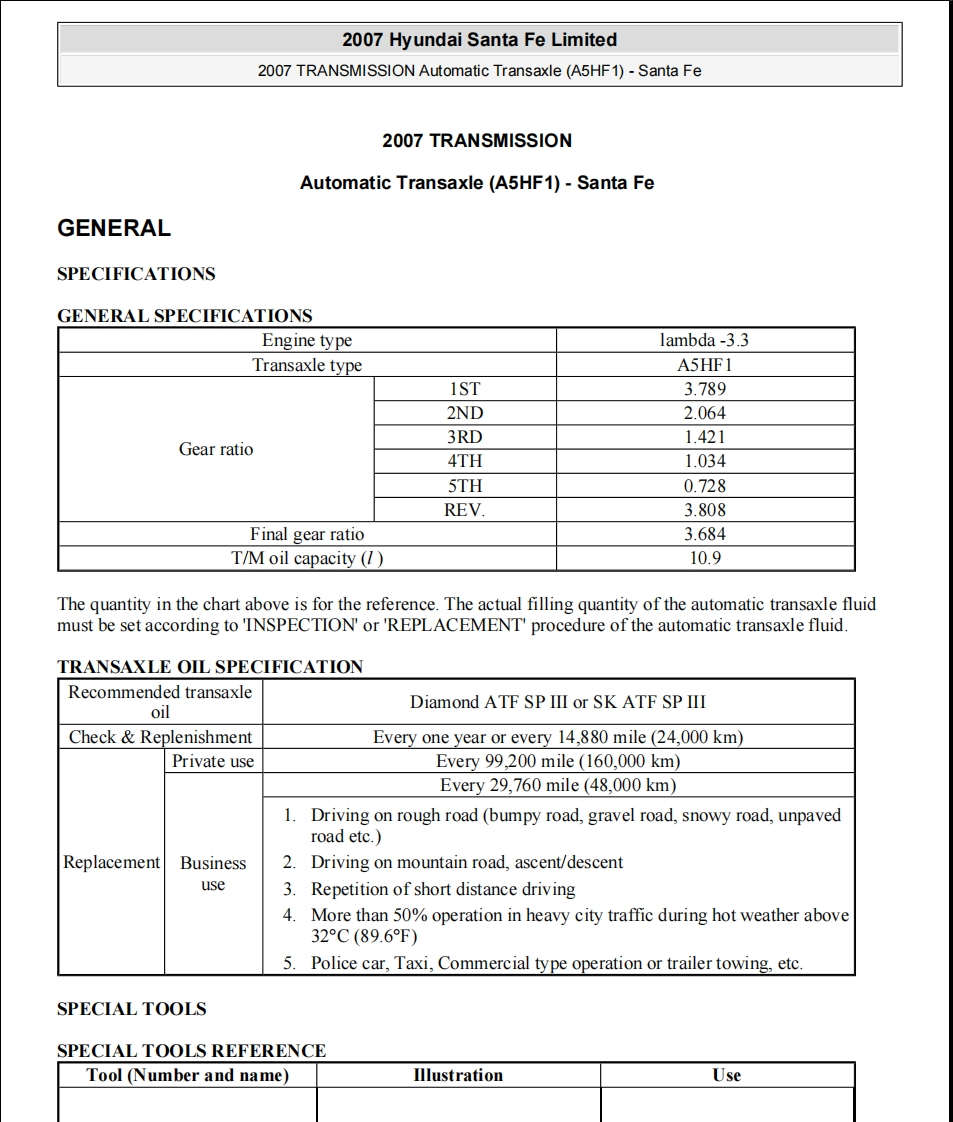

2007 Hyundai Santa Fe Limited2007 TRANSMISSION Automatic Transaxle(A5HF1)-Santa Fe2007 TRANSMISSIONAutomatic Transaxle (A5HF1)-Santa FeGENERALSPECIFICATIONSGENERAL SPECIFICATIONSEngine typelambda-3.3Transaxle typeA5HF11ST3.7892ND2.0643RD1.421Gear ratio4TH1.0345TH0.728REV.3.808Final gear ratio3.684T/M oil capacity (1)10.9The quantity in the chart above is for the reference.The actual filling quantity of the automatic transaxle fluidmust be set according to 'INSPECTION'or 'REPLACEMENT'procedure of the automatic transaxle fluid.TRANSAXLE OIL SPECIFICATIONRecommended transaxleoilDiamond ATF SP III or SK ATF SP IIICheck ReplenishmentEvery one year or every 14,880 mile(24,000 km)Private useEvery 99,200 mile (160,000 km)Every 29,760 mile (48,000 km)1.Driving on rough road(bumpy road,gravel road,snowy road,unpavedroad etc.)ReplacementBusiness2.Driving on mountain road,ascent/descentuse3.Repetition of short distance driving4.More than 50%operation in heavy city traffic during hot weather above32°C(89.6℉)5.Police car,Taxi,Commercial type operation or trailer towing,etc.SPECIAL TOOLSSPECIAL TOOLS REFERENCETool (Number and name)IllustrationUse
