A46DE-A46DF变速箱维修手册

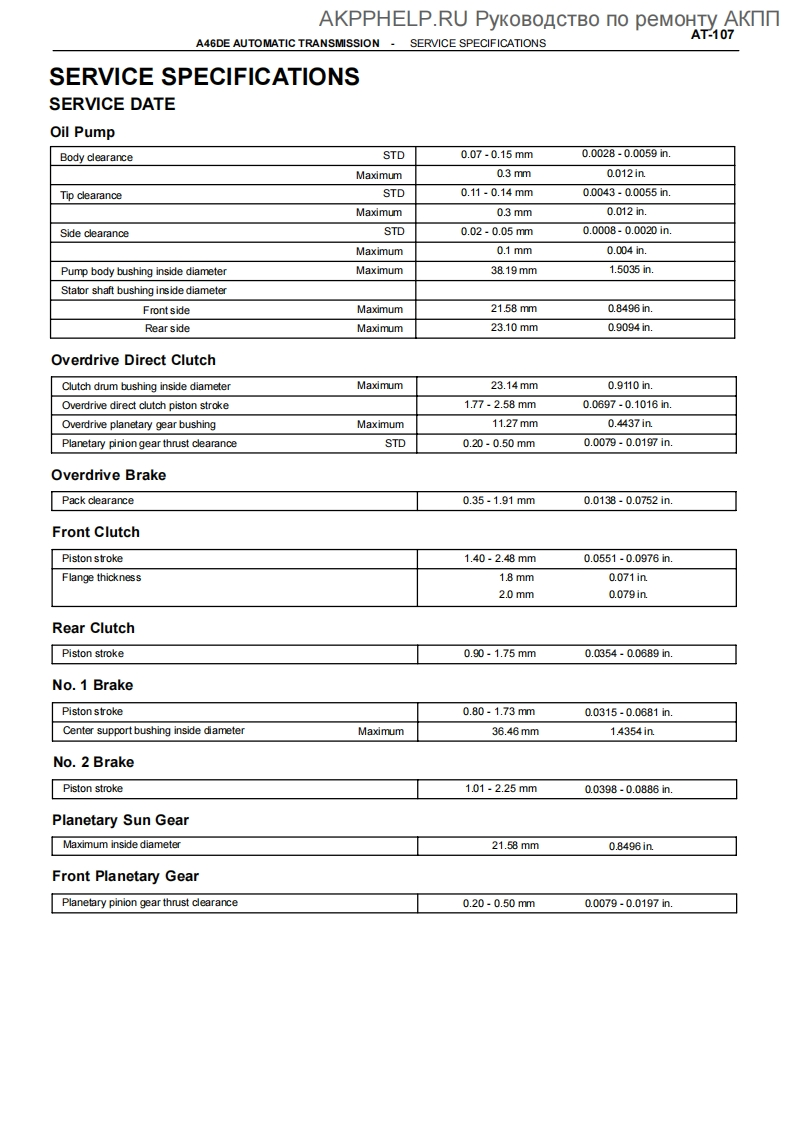

AKPPHELP.RU PyKoBOACTBo no peMoHTy AKnnAT-107A46DE AUTOMATIC TRANSMISSION SERVICE SPECIFICATIONSSERVICE SPECIFICATIONSSERVICE DATEOil PumpBody clearanceSTD0.07-0.15mm0.0028-0.0059in.Maximum0.3mm0.012inTip clearanceSTD0.11-0.14mm0.0043-0.0055in.Maximum0.3mm0.012in.Side clearanceSTD0.02-0.05mm0.0008-0.0020in.Maximum0.1mm0.004in.Pump body bushing inside diameterMaximum38.19mm1.5035in.Stator shaft bushing inside diameterFrontsideMaximum21.58mm0.8496in.Rear sideMaximum23.10mm0.9094in.Overdrive Direct ClutchClutch drum bushing inside diameterMaximum23.14mm0.9110in.Overdrive direct clutch piston stroke1.77.2.58mm0.0697-0.1016inOverdrive planetary gear bushingMaximum11.27mm0.4437inPlanetary pinion gear thrust clearanceSTD0.20-0.50mm0.0079-0.0197in.Overdrive BrakePack clearance0.35-1.91mm0.0138-0.0752in.Front ClutchPiston stroke1.40-2.48mm0.0551-0.0976in.Flange thickness1.8mm0.071in2.0mm0.079inRear ClutchPiston stroke0.90-1.75mm0.0354-0.0689in.No.1 BrakePiston stroke0.80-1.73mm0.0315-0.0681in.Center support bushing inside diameterMaximum36.46mm14354inNo.2 BrakePiston stroke1.01-2.25mm0.0398-0.0886in.Planetary Sun GearMaximum inside diameter21.58mm0.8496inFront Planetary GearPlanetary pinion gear thrust clearance0.20-0.50mm0.0079-0.0197im.
