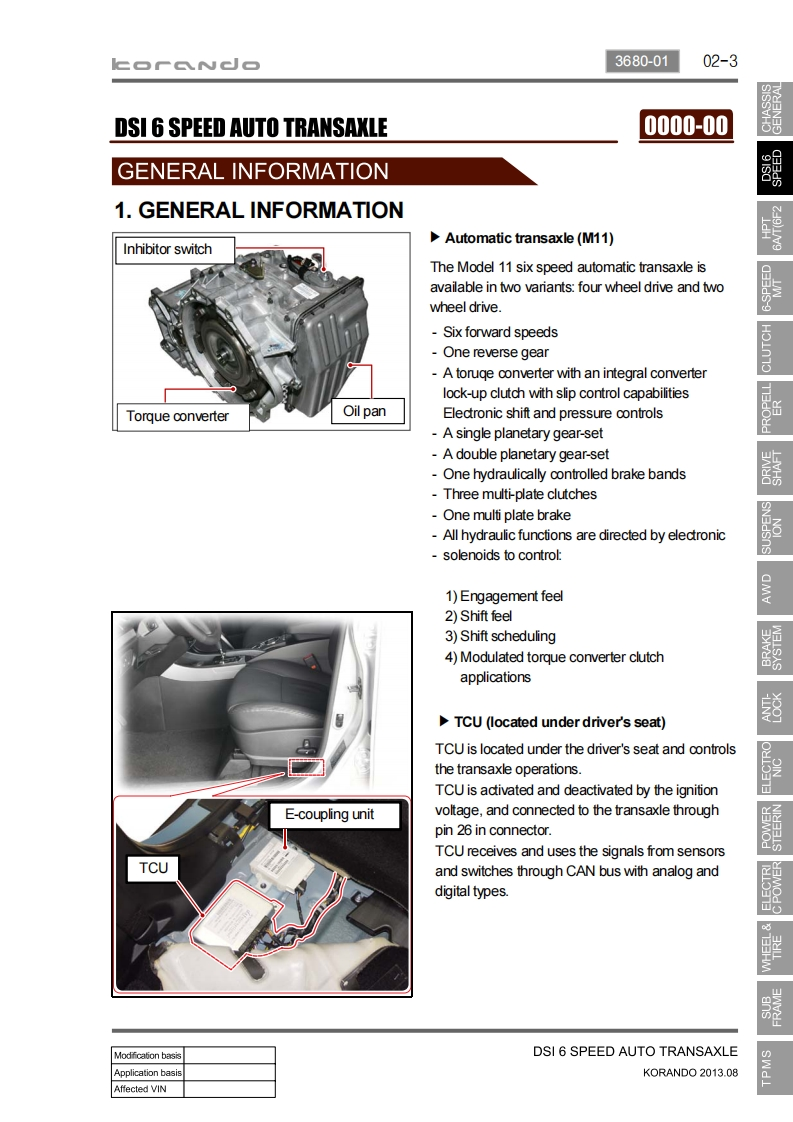

3680-0102-3DSI 6 SPEED AUTO TRANSAXLE0000-00GENERAL INFORMATION1.GENERAL INFORMATIONAutomatic transaxle(M11)Inhibitor switchThe Model 11 six speed automatic transaxle isavailable in two variants:four wheel drive and twowheel drive.-Six forward speeds-One reverse gearA toruge oonverter with an integral converterlock-up clutch with slip control capabilitiesTorque converterOil panElectronic shift and pressure controlsA single planetary gear-setA double planetary gear-setOne hydraulically controlled brake bandsThree multi-plate clutchesOne multi plate brakeAll hydraulic functions are directed by electronicsolenoids to control:1)Engagement feel2)Shift feel3)Shift scheduling4)Modulated torque converter clutchapplicationsTCU(located under driver's seat)超TCU is located under the driver's seat and controlsthe transaxle operations.TCU is activated and deactivated by the ignitionE-coupling unitvoltage,and connected to the transaxle throughpin 26 in connector.TCU receives and uses the signals from sensorsTCUand switches through CAN bus with analog anddigital types.Modfication basisDSI 6 SPEED AUTO TRANSAXLEApplication basisKORANDO 2013.08Affected VIN
