R4A51-V4A51变速箱维修手册l

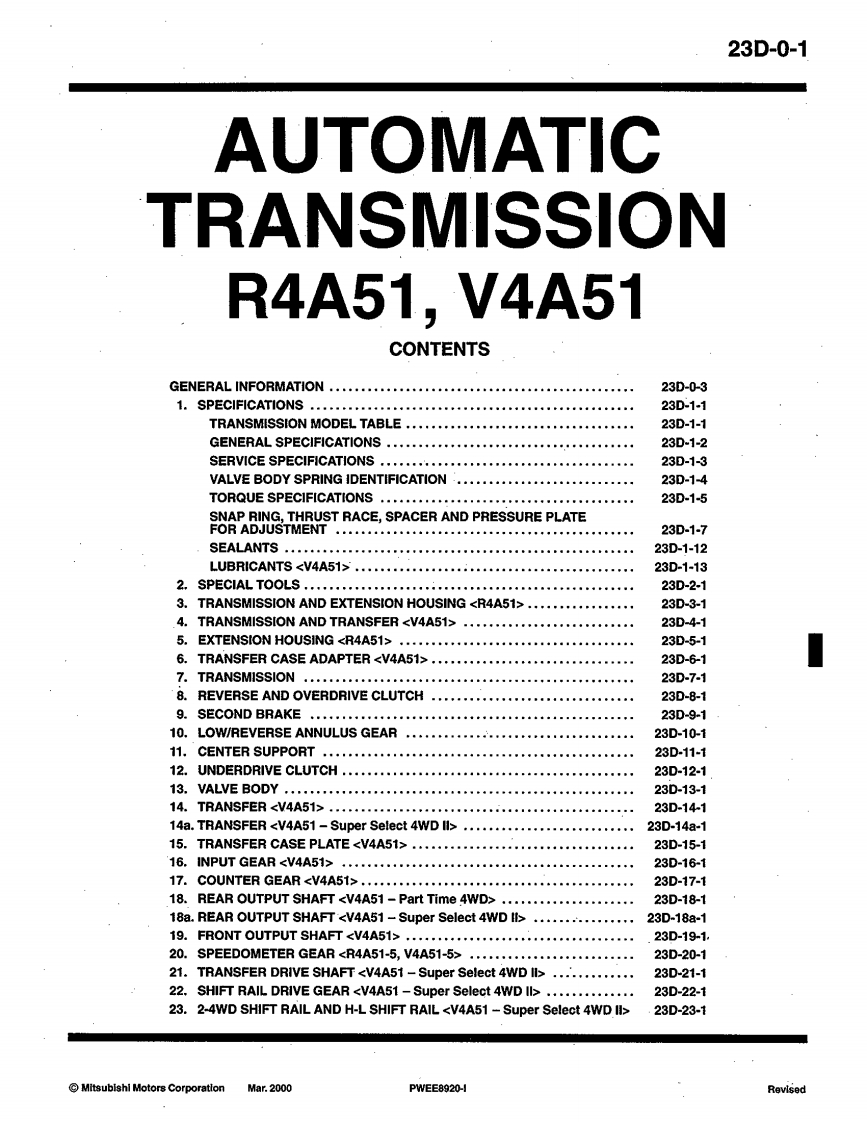

23D-0-1AUTOMATICTRANSMISSIONR4A51,V4A51CONTENTSGENERAL INFORMATION ...............................................23D-0-31.SPECIFICATIONS...................................................23D-1-1TRANSMISSION MODEL TABLE....................................23D-1-1GENERAL SPECIFICATIONS......................................230-1-2SERVICE SPECIFICATIONS .......................................230-1-3VALVE BODY SPRING IDENTIFICATION...........................230-1-4TORQUE SPECIF[ICATIONS........................................23D-1-5SNAP RING,THRUST RACE,SPACER AND PRESSURE PLATEFOR ADJUSTMENT……23D-1-7SEALANTS ......................................................23D-1-12LUBRICANTS............................................23D-1-132.SPECIALTOOLS..................................23D-2-13.TRANSMISSION AND EXTENSION HOUSING 23D-3-14.TRANSMISSION AND TRANSFER ...........................23D-4-15.EXTENSION HOUSING .....................................23D-5-16.TRANSFER CASE ADAPTER ................................23D-6-17.TRANSMISSION…23D-7-18.REVERSE AND OVERDRIVE CLUTCH ...............................23D-8-19.SECOND BRAKE23D-9-110.LOW/REVERSE ANNULUS GEAR...................................23D-10-111.CENTER SUPPORT............................................23D-11-112.UNDERDRIVE CLUTCH..............................................23D-12-113.VALVEBODY........................................................23D-13-114.TRANSFER ...............................................23D-14-114a.TRANSFER ...........................23D-14a-115.TRANSFER CASE PLATE...................................23D-15-116.INPUTGEAR.............................................23D-16-117.COUNTER GEAR...........................................23D-17-118.REAR OUTPUT SHAFT ....................23D-18-118a.REAR OUTPUT SHAFT ................23D-18a-119.FRONT OUTPUT SHAFT ....23D-19-1.20.SPEEDOMETER GEAR ..........................23D-20-121.TRANSFER DRIVE SHAFT .............23D-21-122.SHIFT RAIL DRIVE GEAR ..............23D-22-123.2-4WD SHIFT RAIL AND H-L SHIFT RAIL 23D-23-1Mitsubishi Motors CorporationMar.2000PWEE8920-】Revised
