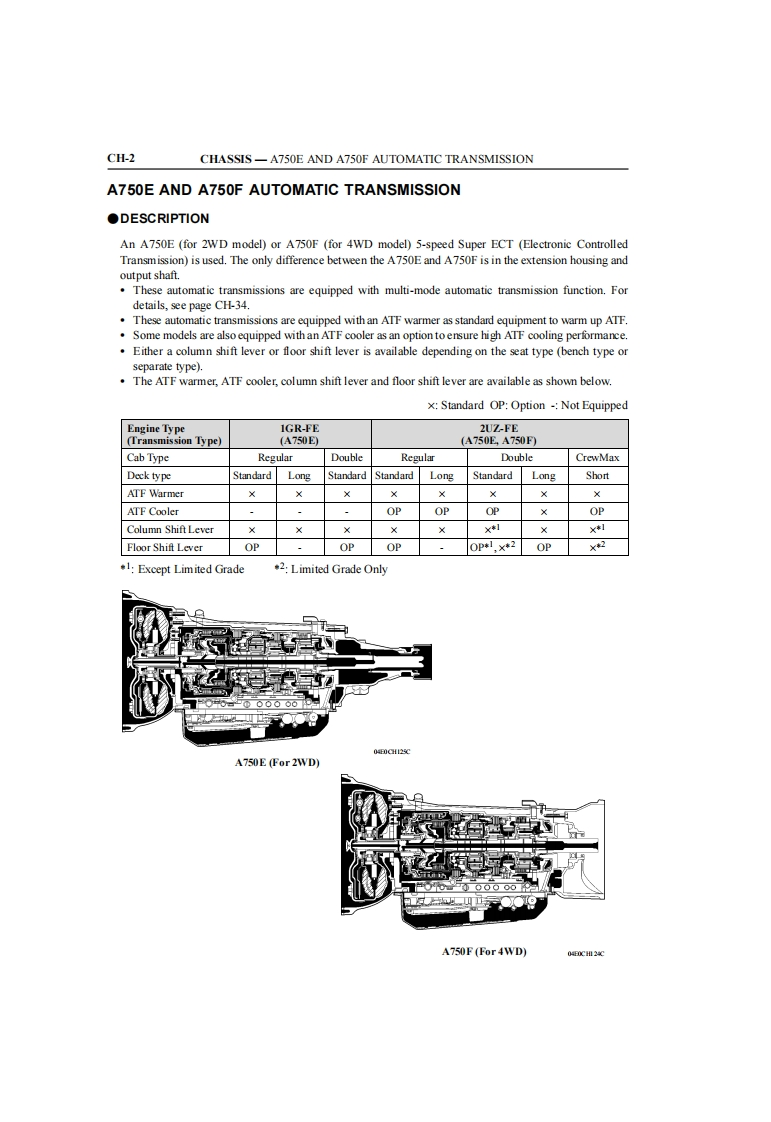

CH-2CHASSIS-A750E AND A750F AUTOMATIC TRANSMISSIONA750E AND A750F AUTOMATIC TRANSMISSION●DESCRIPTIONAn A750E (for 2WD model)or A750F (for 4WD model)5-speed Super ECT (Electronic ControlledTransmission)is used.The only difference between the A750E and A750F is in the extension housing andoutput shaft.These automatic transmissions are equipped with multi-mode automatic transmission function.Fordetails,see page CH-34.These automatic transmissions are equipped with an ATF warmer as standard equipment to warm up ATF..Some models are alsoequipped withan ATF cooler as an optiontoensure high ATF cooling performance.Either a column shift lever or floor shift lever is available depending on the seat type (bench type orseparate type).The ATF warmer,ATF cooler,column shift lever and floor shift lever are available as shown below.x:Standard OP:Option -Not EquippedEngine TypeIGR-FE2UZ-FE(Transmission Type)(A750E)(A750E,A750F)Cab TypeRegularDoubleRegularDoubleCrewMaxDeck typeStandard LongStandardStandardLongStandardLongShortATF WarmerATF CoolerOPOPOPOPColumn Shift LeverX幻文Floor Shif LeverOPOP*1,×*2OP×*2Except Limited Grade2:Limited Grade Only00006A750E (For 2WD)A750F (For 4WD)04F0CH124C
