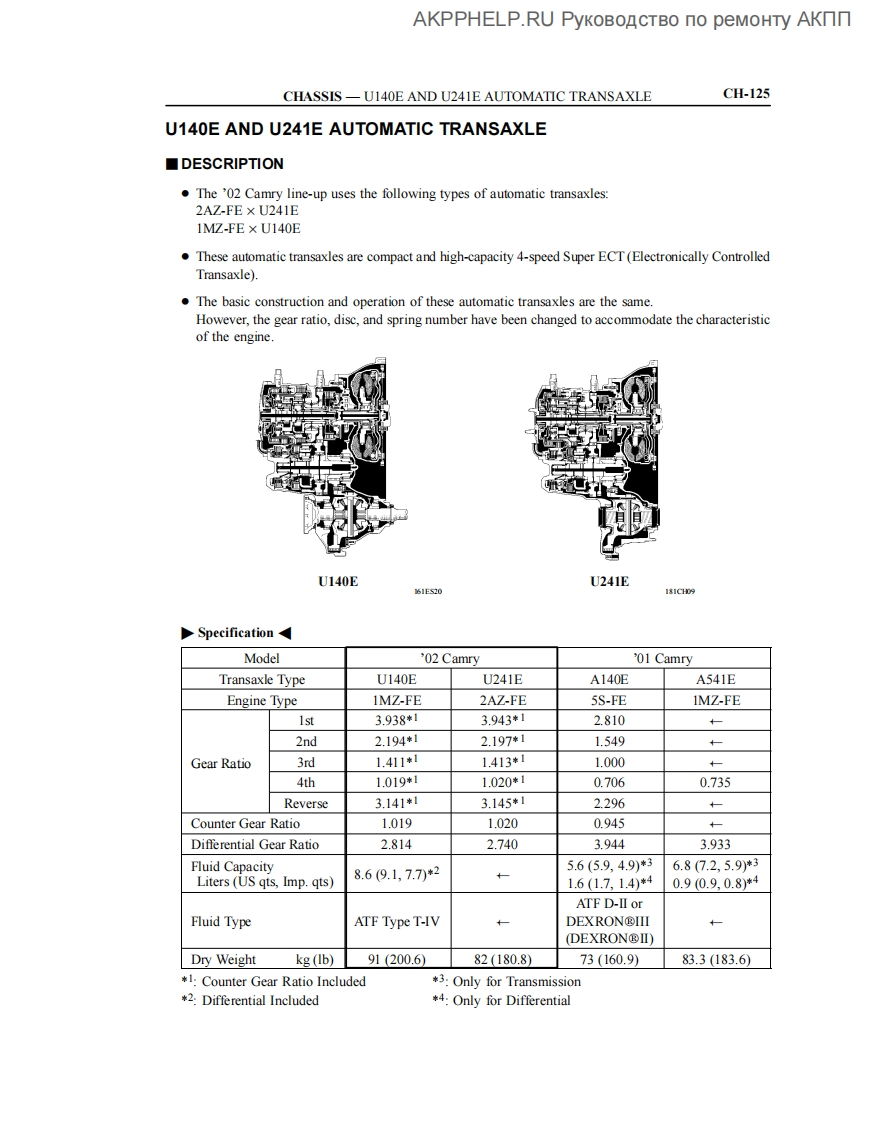

AKPPHELP.RU PyKoBOACTBO no peMoHTy AKnnCHASSIS-U140E AND U241E AUTOMATIC TRANSAXLECH-125U140E AND U241E AUTOMATIC TRANSAXLE■DESCRIPTION.The '02 Camry line-up uses the following types of automatic transaxles:2AZ-FE×U241E1MZ-FE×U140EThese automatic transaxles are compact and high-capacity 4-speed Super ECT(Electronically ControlledTransaxle)..The basic construction and operation of these automatic transaxles are the same.However,the gear ratio,disc,and spring number have been changed to accommodate the characteristicof the engine.U140EU241E61E520SpecificationModel02 Camry01 CamryTransaxle TypeU140EU241EA140EA541EEngine Type1MZ-FE2AZ-FE5S-FE1MZ-FE1st3.938*13.943*12.8102nd2.194*12.197*11.549Gear Ratio3rd1.411*11.413*11.0004th1.019*11.020*10.7060.735Reverse3.141*13.145*12.296Counter Gear Ratio1.0191.0200.945+Differential Gear Ratio2.8142.7403.9443.933Fluid Capacity5.6(5.9,4.9)*36.8(7.2,5.9)*3Liters (US qts,Imp.qts)8.6(9.1,7.7*21.6(1.7,1.4)*40.90.9,0.8)*4ATFD-ⅡorFluid TypeATF Type T-IVDEXRON®IIIDEXRON®Dry Weightkg(Ib)91(200.682(180.8)73(160.9)83.3(183.6)*1:Counter Gear Ratio Included*3:Only for Transmission*2.Differential Included*4:Only for Differential
