Denon-D65-cs-维修说明书手册含电器原理图

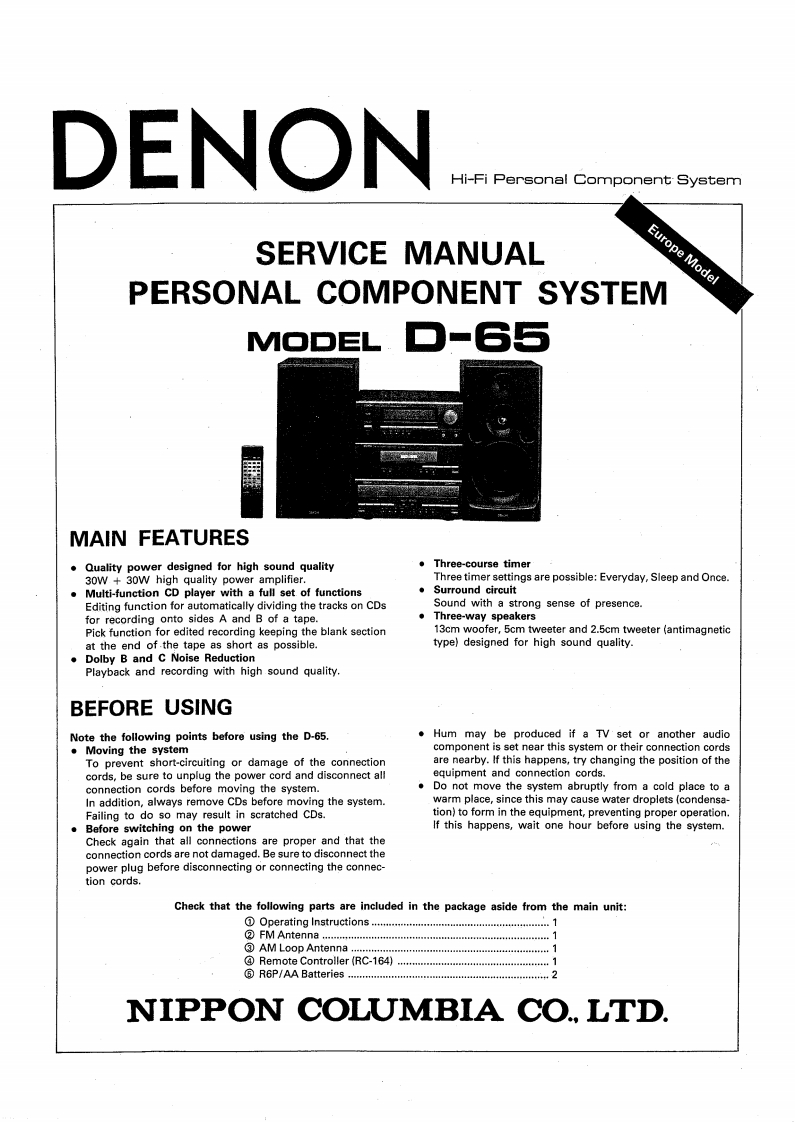

DENONHi-Fi Personal Component SystemSERVICE MANUALEurope ModelPERSONAL COMPONENT SYSTEMMODEL D-65MAIN FEATURESQuality power designed for high sound quality。Three-course timer30w+30W high quality power amplifier.Three timer settings are possible:Everyday,Sleep and OnceMulti-function CD player with a full set of functions◆Surround circuitEditing function for automatically dividing the tracks on CDsSound with a strong sense of presence.for recording onto sides A and B of a tape.Three-way speakersPick function for edited recording keeping the blank section13cm woofer,5cm tweeter and 2.5cm tweeter (antimagneticat the end of the tape as short as possible.type)designed for high sound quality..Dolby B and C Noise ReductionPlayback and recording with high sound quality.BEFORE USINGNote the following points before using the D-65..Hum may be produced if a TV set or another audio·Moving the systemcomponent is set near this system or their connection cordsTo prevent short-circuiting or damage of the connectionare nearby.If this happens,try changing the position of thecords,be sure to unplug the power cord and disconnect allequipment and connection cords.connection cords before moving the system..Do not move the system abruptly from a cold place to aIn addition,always remove CDs before moving the system.warm place,since this may cause water droplets (condensa-Failing to do so may result in scratched CDs.tion)to form in the equipment,preventing proper operation..Before switching on the powerIf this happens,wait one hour before using the systemCheck again that all connections are proper and that theconnection cords are not damaged.Be sure to disconnect thepower plug before disconnecting or connecting the connec-tion cords.Check that the following parts are included in the package aside from the main unit:Operating Instructions....②FM Antenna...③AM Loop Antenna.Remote Controller (RC-164).⑥R6P/AA Batteries,.2NIPPON COLUMBIA CO.,LTD.
