sony索尼DSC-T77数码相机维修手册含电路图

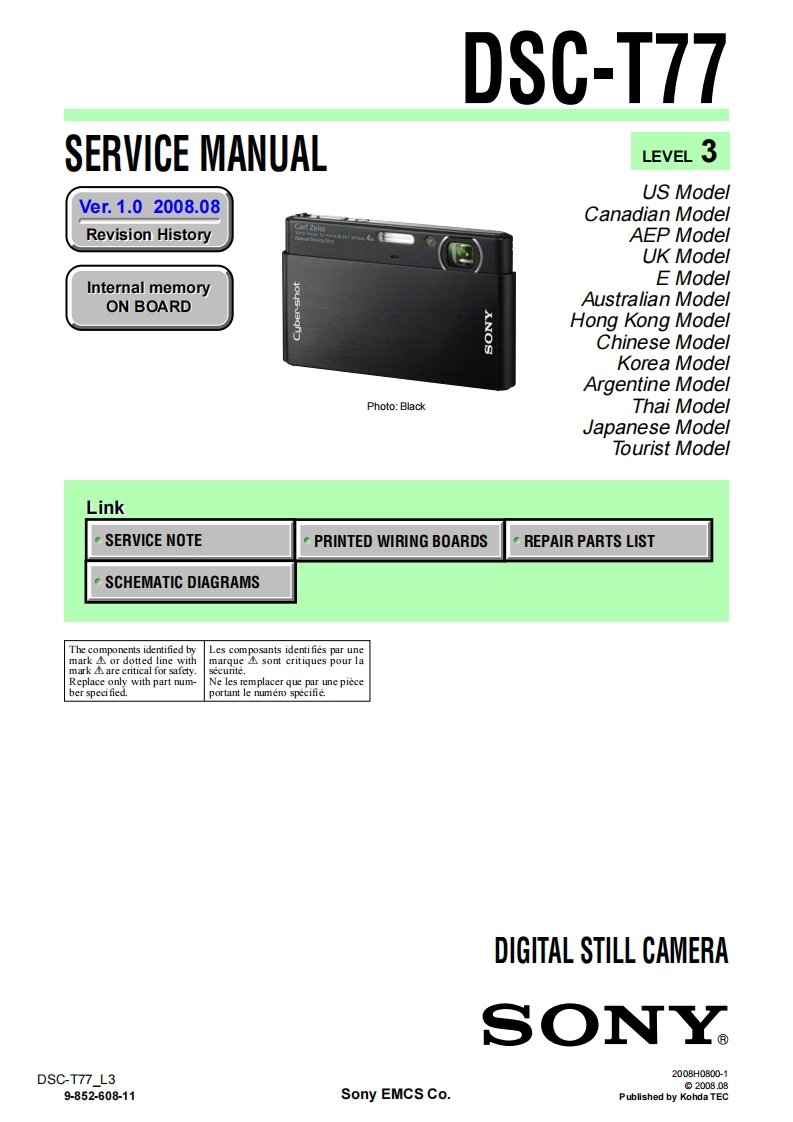

DSC-T77SERVICE MANUALLEVEL 3US ModelVer.1.02008.08Canadian ModelRevision HistoryAEP ModelUK ModelInternal memoryE ModelON BOARDAustralian ModelHong Kong ModelChinese ModelKorea ModelArgentine ModelPhoto:BlackThai ModelJapanese ModelTourist ModelLinkSERVICE NOTEPRINTED WIRING BOARDSREPAIR PARTS LISTSCHEMATIC DIAGRAMSThe components identified byLes composants identifies par unemark or dotted line withmarque sont critiques pour lasccunte.Replace only with part num-Ne les remplacer que par une pieceber specified.portant le numero specifie.DIGITAL STILL CAMERASONYDSC-T77_L32008H0800-1©2008.089-852-608-11Sony EMCS Co.Published by Kohda TEC
