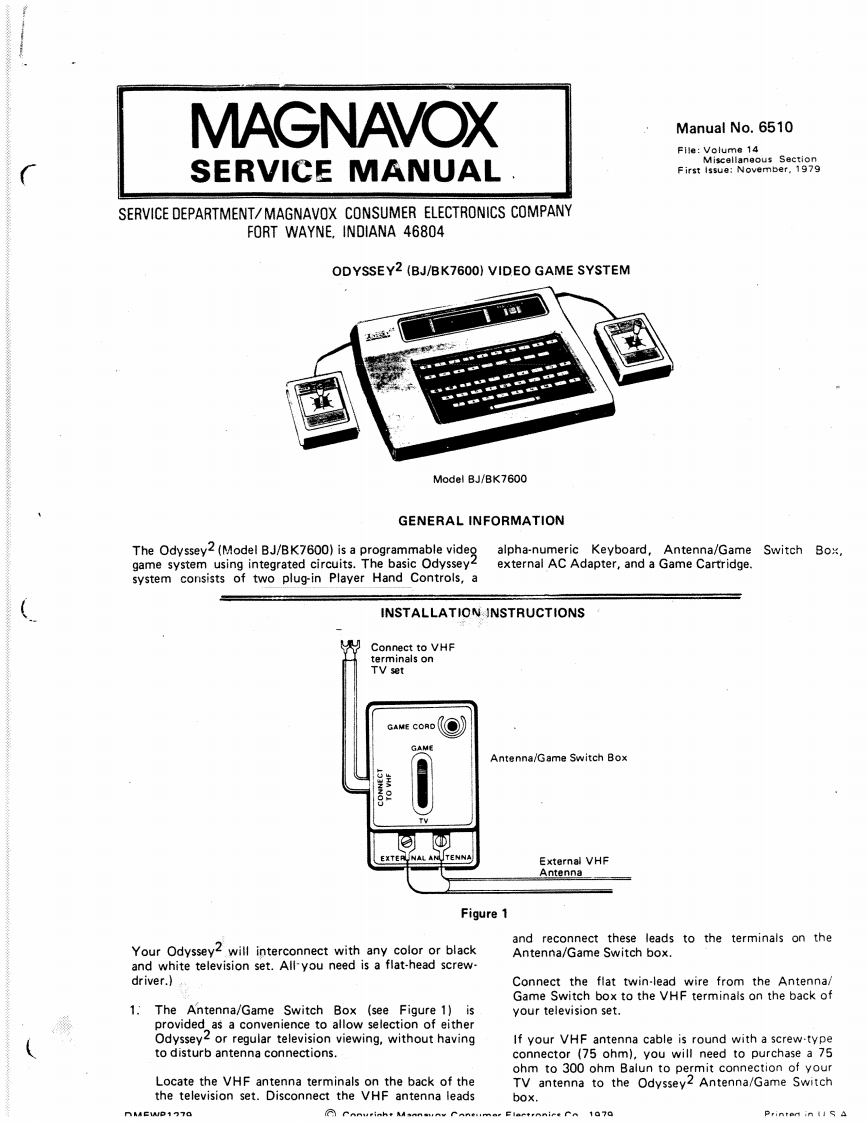

MAGNAVOXManual No.6510Flle:Volume 14SERVICE MANUALMiscellaneous SectionFirst Issue:November,1979SERVICE DEPARTMENT/MAGNAVOX CONSUMER ELECTRONICS COMPANYFORT WAYNE.INDIANA 46804ODYSSEY2 (BJ/BK7600)VIDEO GAME SYSTEMModel BJ/BK7600GENERAL INFORMATIONThe Odyssey2(Model BJ/BK7600)is a programmable videgalpha-numeric Keyboard,Antenna/Game Switch Box,game system using integrated circuits.The basic Odyssey2external AC Adapter,and a Game Cartridge.system consists of two plug-in Player Hand Controls,aINSTALLATIONJNSTRUCTIONSConnect to VHFterminals onTV setGAME CORDAntenna/Game Switch BoxEXTERExternal VHFAntennaFigure 1Your Odyssey2 will interconnect with any color or blackand reconnect these leads to the terminals on theAntenna/Game Switch box.and white television set.All-you need is a flat-head screw-driver.)Connect the flat twin-lead wire from the Antenna/Game Switch box to the VHF terminals on the back of1:The Antenna/Game Switch Box (see Figure 1)isyour television set.provided as a convenience to allow selection of eitherOdyssey2 or regular television viewing,without havingIf your VHF antenna cable is round with a screw-typeto disturb antenna connections.connector (75 ohm),you will need to purchase a 75ohm to 300 ohm Balun to permit connection of yourLocate the VHF antenna terminals on the back of theTV antenna to the Odyssey2 Antenna/Game Switchthe television set.Disconnect the VHF antenna leadsbox.DAEWD1370Conurinht Msansun Contme Elartronict ro 1979Printen in I S A
