90_C64GS_Tech_Data

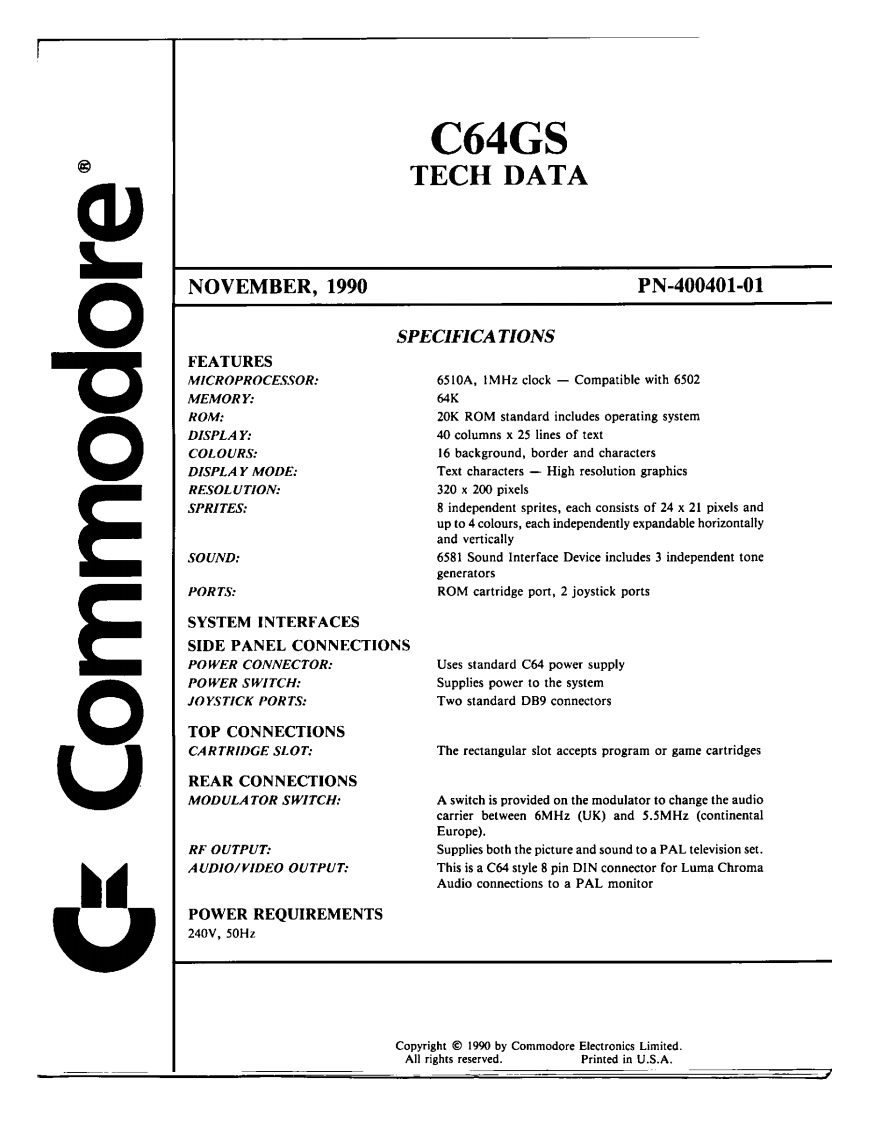

C64GSTECH DATANOVEMBER,1990PN-400401-01SPECIFICATIONSFEATURESMICROPROCESSOR:6510A,IMHz clock-Compatible with 6502MEMORY:64KROM:20K ROM standard includes operating systemDISPLAY:40 columns x 25 lines of textCOLOURS:16 background,border and charactersDISPLAY MODE:Text characters-High resolution graphicsRESOLUTION:320 x 200 pixelsSPRITES:8 independent sprites,each consists of 24 x 21 pixels andup to 4 colours,each independently expandable horizontallyand verticallySOUND:6581 Sound Interface Device includes 3 independent tonegeneratorsPORTS:ROM cartridge port,2 joystick portsSYSTEM INTERFACESSIDE PANEL CONNECTIONSPOWER CONNECTOR:Uses standard C64 power supplyPOWER SWITCH:Supplies power to the systemJOYSTICK PORTS:Two standard DB9 connectorsTOP CONNECTIONSCARTRIDGE SLOT:The rectangular slot accepts program or game cartridgesREAR CONNECTIONSMODULATOR SWITCH:A switch is provided on the modulator to change the audiocarrier between 6MHz (UK)and 5.5MHz (continentalEurope).RF OUTPUT:Supplies both the picture and sound to a PAL television set.AUDIO/VIDEO OUTPUT:This is a C64 style 8 pin DIN connector for Luma ChromaAudio connections to a PAL monitorPOWER REQUIREMENTS240V.50HzCopyright@1990 by Commodore Electronics Limited.All rights reserved.Printed in U.S.A.
