sony-ps2-level-1-service_and_procedures_v5

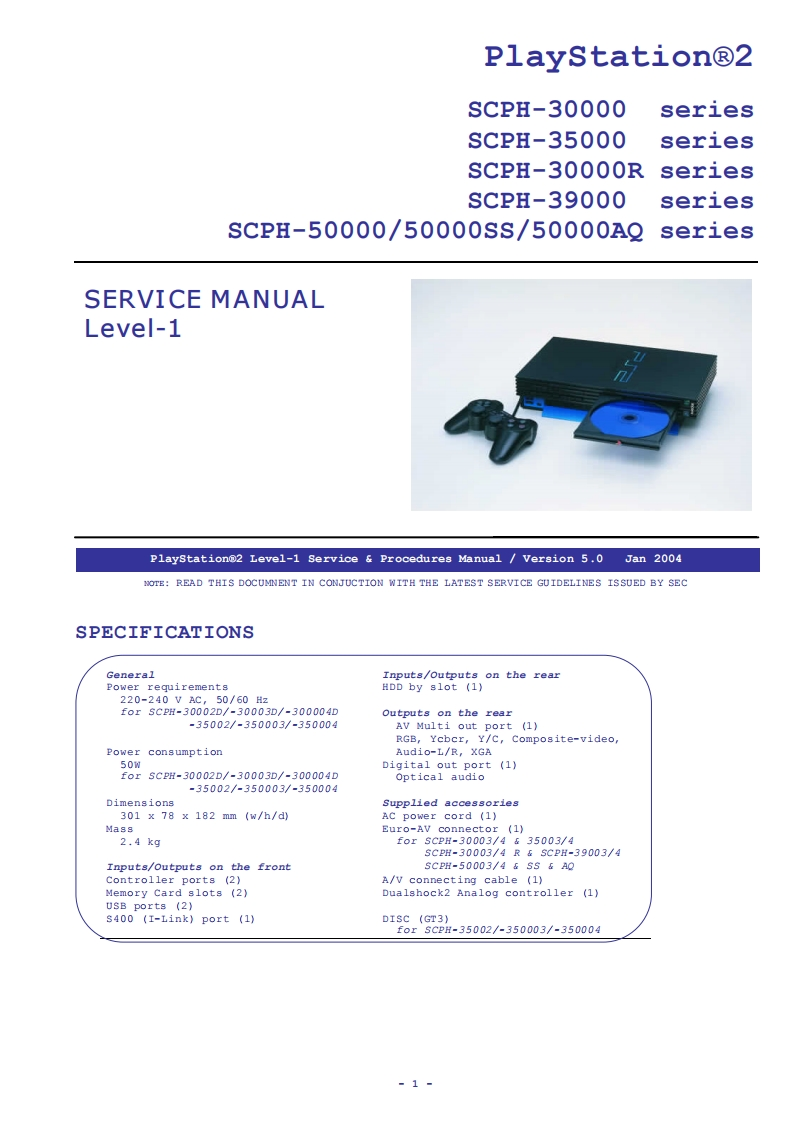

Playstation®2SCPH-30000seriesSCPH-35000seriesSCPH-30000R seriesSCPH-39000seriesSCPH-50000/50000SS/50000AQ seriesSERVICE MANUALLevel-1Playstation2 Level-1 Service Procedures Manual Version 5.0 Jan 2004MOTE:READ THIS DOCUMNENT IN CONJUCTION WITH THE LATEST SERVICE GUIDELINES ISSUED BY SECSPECIFICATIONSGeneralInputs/outputs on the rearPower requirementsHDD by slot (1)220-240VAC,50/60Hzfor SCPH-30002D/-30003D/-300004DOutputs on the rear-35002/-350003/-350004AV Multi out port (1)RGB,Ycbcr,Y/C,Composite-video,Power consumptionAudio-L/R,XGA50wDigital out port (1)for SCPH-30002D/-30003D/-300004DOptical audio-35002/-350003/-350004DimensionsSupplied accessories301x78x182mm(w/h/dAC power cord (1)MassEuro-AV connector (1)2.4kgfor SCPH-30003/4&35003/4SCPH-30003/4R&5CPH-39003/4Inputs/Outputs on the frontSCPH-50003/4 SS AQController ports (2)A/V connecting cable (1)Memory Card slots (2)Dualshock2 Analog controller (1)USB ports (2)S400 (I-Link)port (1)DISC (GT3)for SCPH-35002/-350003/-350004-1-
