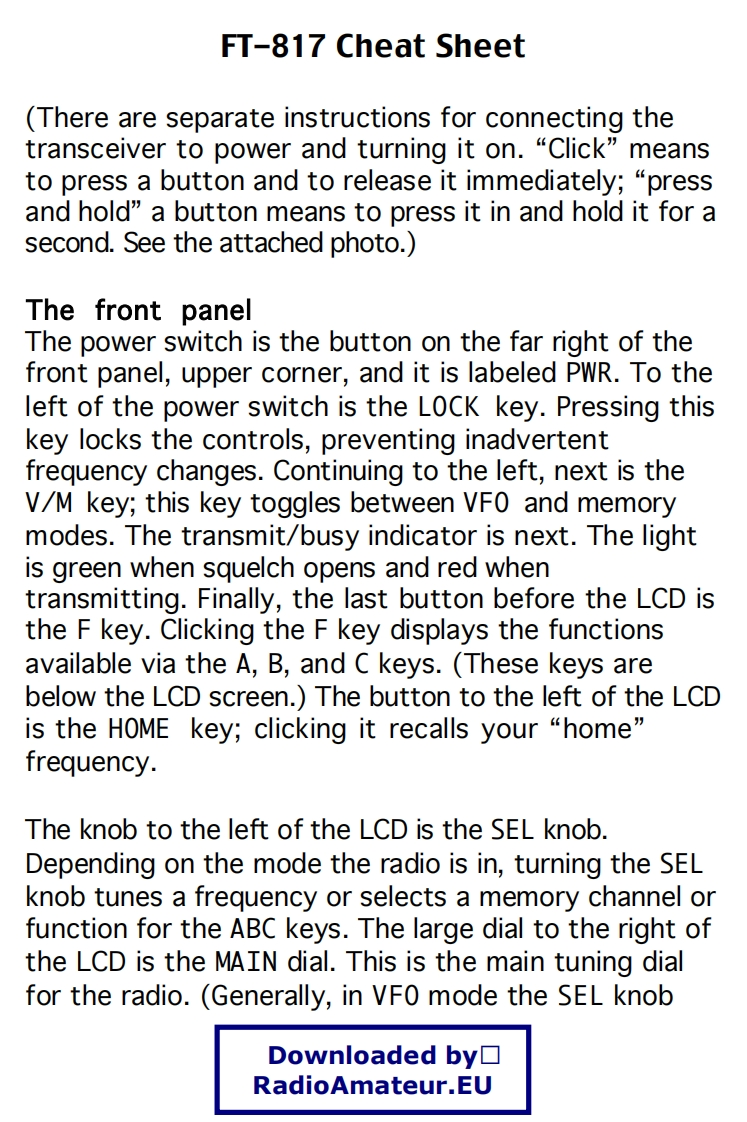

FT-817 Cheat Sheet(There are separate instructions for connecting thetransceiver to power and turning it on."Click"meansto press a button and to release it immediately;"pressand hold"a button means to press it in and hold it for asecond.See the attached photo.)The front panelThe power switch is the button on the far right of thefront panel,upper corner,and it is labeled PWR.To theleft of the power switch is the LOCK key.Pressing thiskey locks the controls,preventing inadvertentfrequency changes.Continuing to the left,next is theV/M key;this key toggles between VF0 and memorymodes.The transmit/busy indicator is next.The lightis green when squelch opens and red whentransmitting.Finally,the last button before the LCD isthe F key.Clicking the F key displays the functionsavailable via the A,B,and C keys.(These keys arebelow the LCD screen.)The button to the left of the LCDis the HOME key;clicking it recalls your "home"frequency.The knob to the left of the LCD is the SEL knob.Depending on the mode the radio is in,turning the SELknob tunes a frequency or selects a memory channel orfunction for the ABC keys.The large dial to the right ofthe LCD is the MAIN dial.This is the main tuning dialfor the radio.(Generally,in VF0 mode the SEL knobDownloaded byl□RadioAmateur.EU
