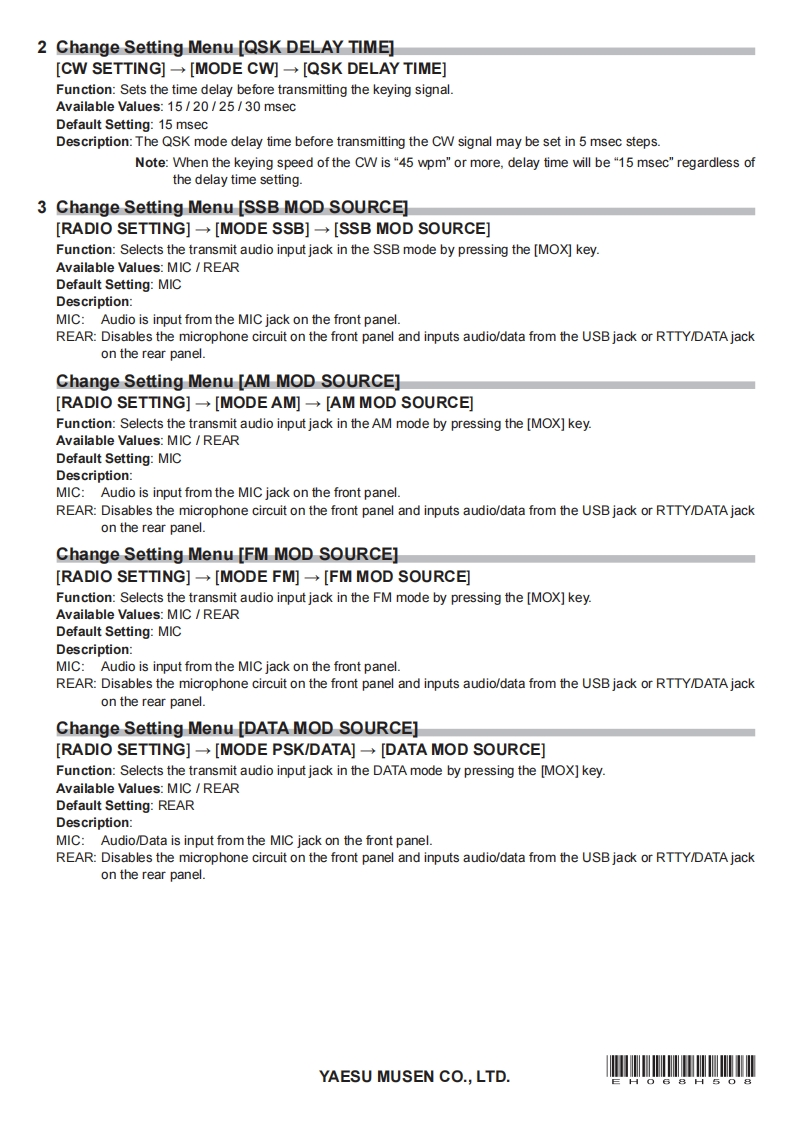

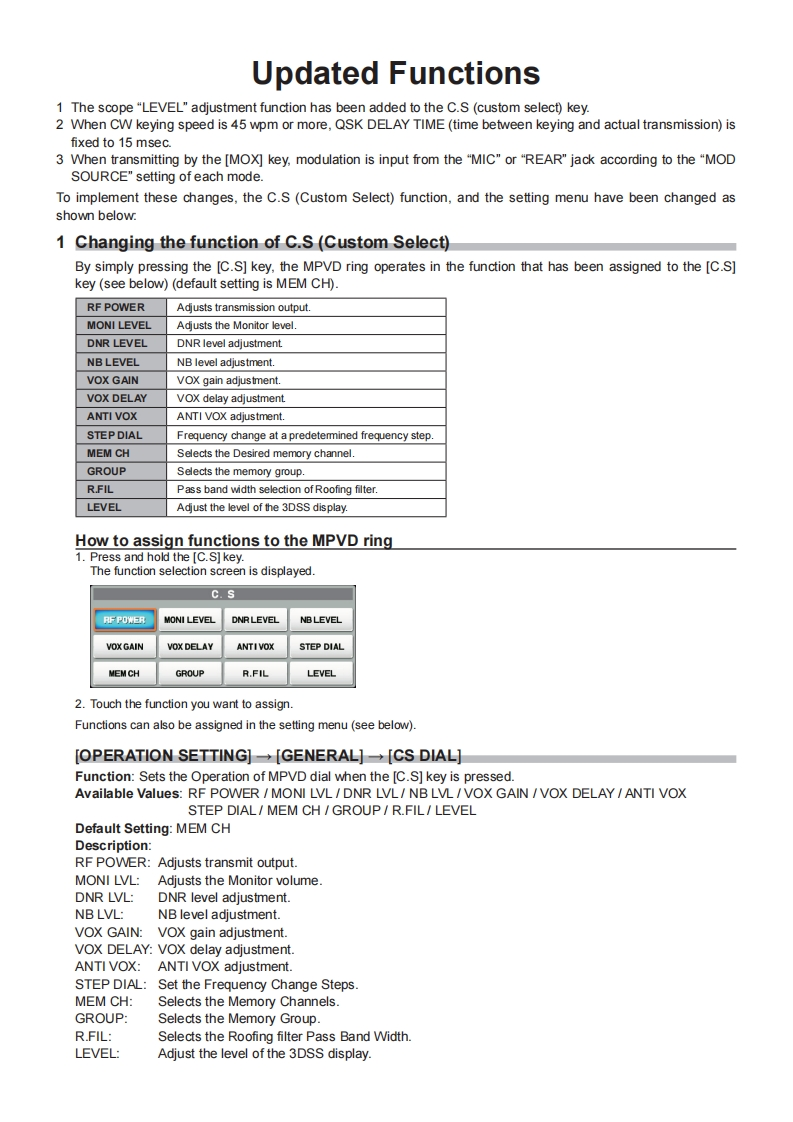

Updated Functions1 The scope "LEVEL"adjustment function has been added to the C.S(custom select)key.2 When CW keying speed is 45 wpm or more,QSK DELAY TIME (time between keying and actual transmission)isfixed to 15 msec.3 When transmitting by the [MOX]key,modulation is input from the "MIC"or "REAR"jack according to the "MODSOURCE"setting of each mode.To implement these changes,the C.S(Custom Select)function,and the setting menu have been changed asshown below:1 Changing the function of C.S(Custom Select)By simply pressing the [C.S]key,the MPVD ring operates in the function that has been assigned to the [C.S]key (see below)(default setting is MEM CH).RF POWERAdjusts transmission output.MONI LEVELAdjusts the Monitor level.DNR LEVELDNR level adjustmentNB LEVELNB level adjustment.VOX GAINVOX gain adjustment.VOX DELAYVOX delay adjustmentANTI VOXANTI VOX adjustment.STEP DIALFrequency change at a predetemmined frequency step.MEM CHSelects the Desired memory channel.GROUPSelects the memory group.R.FILPass band width selection of Roofing filter.LEVELAdjust the level of the 3DSS display.How to assign functions to the MPVD ring1.Press and hold the [C.S]key.The function selection screen is displayed.C.SRFPOWERMONI LEVELDNR LEVELNBLEVELVOX GAINVOX DELAYANTIVOXSTEP DIALMEM CHGROUPR.FILLEVEL2.Touch the function you want to assign.Functions can also be assigned in the setting menu (see below).[OPERATION SETTING]→[GENERAL→[CS DIALFunction:Sets the Operation of MPVD dial when the [C.S]key is pressed.Available Values:RF POWER MONI LVL/DNR LVL/NB LVL/VOX GAIN /VOX DELAY ANTI VOXSTEP DIAL/MEM CH/GROUP/RFIL/LEVELDefault Setting:MEM CHDescription:RF POWER:Adjusts transmit output.MONI LVL:Adjusts the Monitor volume.DNR LVL:DNR level adjustment.NB LVL:NB level adjustment.VOX GAIN:VOX gain adjustment.VOX DELAY:VOX delay adjustment.ANTI VOX:ANTI VOX adjustment.STEP DIAL:Set the Frequency Change Steps.MEM CH:Selects the Memory Channels.GROUP:Selects the Memory Group.R.FIL:Selects the Roofing filter Pass Band Width.LEVEL:Adjust the level of the 3DSS display.
