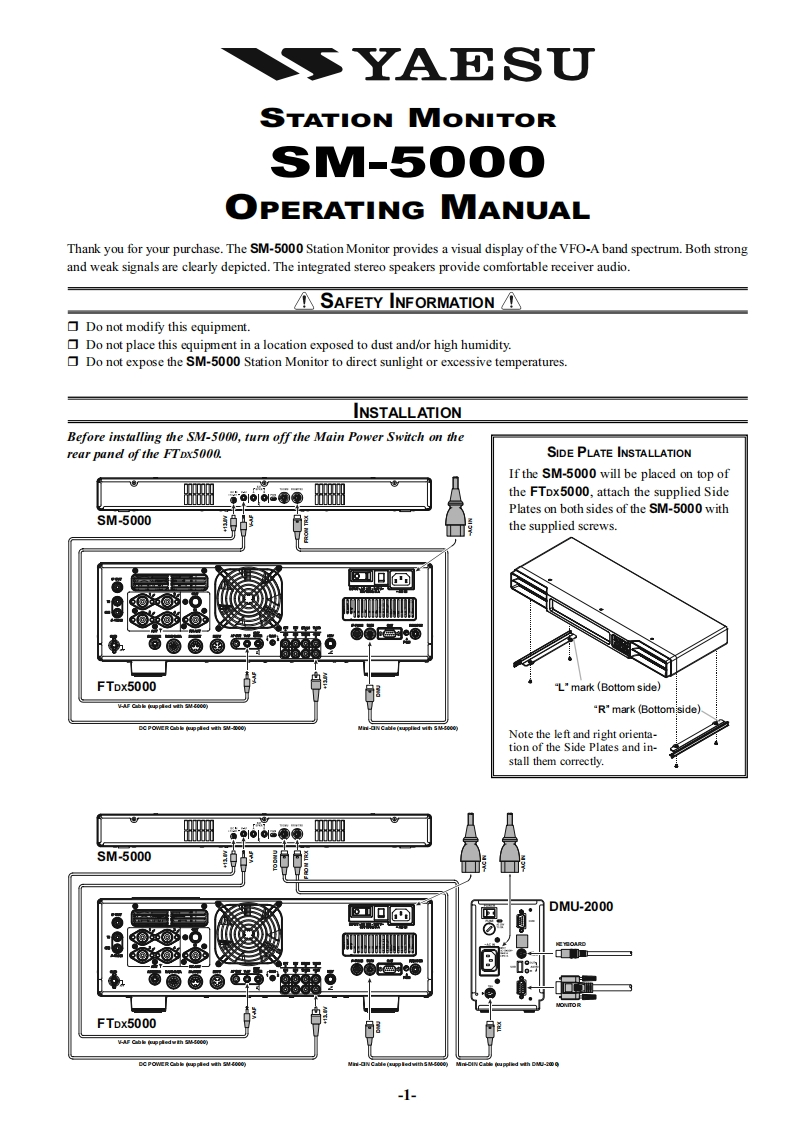

YAESUSTATION MONITORSM-5000OPERATING MANUALThank you for your purchase.The SM-5000 Station Monitor provides a visual display of the VFO-A band spectrum.Both strongand weak signals are clearly depicted.The integrated stereo speakers provide comfortable receiver audio.SAFETY INFORMATIONDo not modify this equipment.Do not place this equipment in a location exposed to dust and/or high humidity.Do not expose the SM-5000 Station Monitor to direct sunlight or excessive temperatures.INSTALLATIONBefore installing the SM-5000,turn off the Main Power Switch on therear panel of the FTpx5000.SIDE PLATE INSTALLATIONIf the SM-5000 will be placed on top ofthe FTDx5000,attach the supplied SidePlates on both sides of the SM-5000 withSM-5000the supplied screws.回@@6080FTDx5000"L"mark(Bottom side)-AF Cb lupplled wah SM-000)'R"mark (Bottomside).Note the left and right orienta-tion of the Side Plates and in-stall them correctly.SM-5000DMU-2000号☐FTDx5000
