使用说明书手册CS8000TC

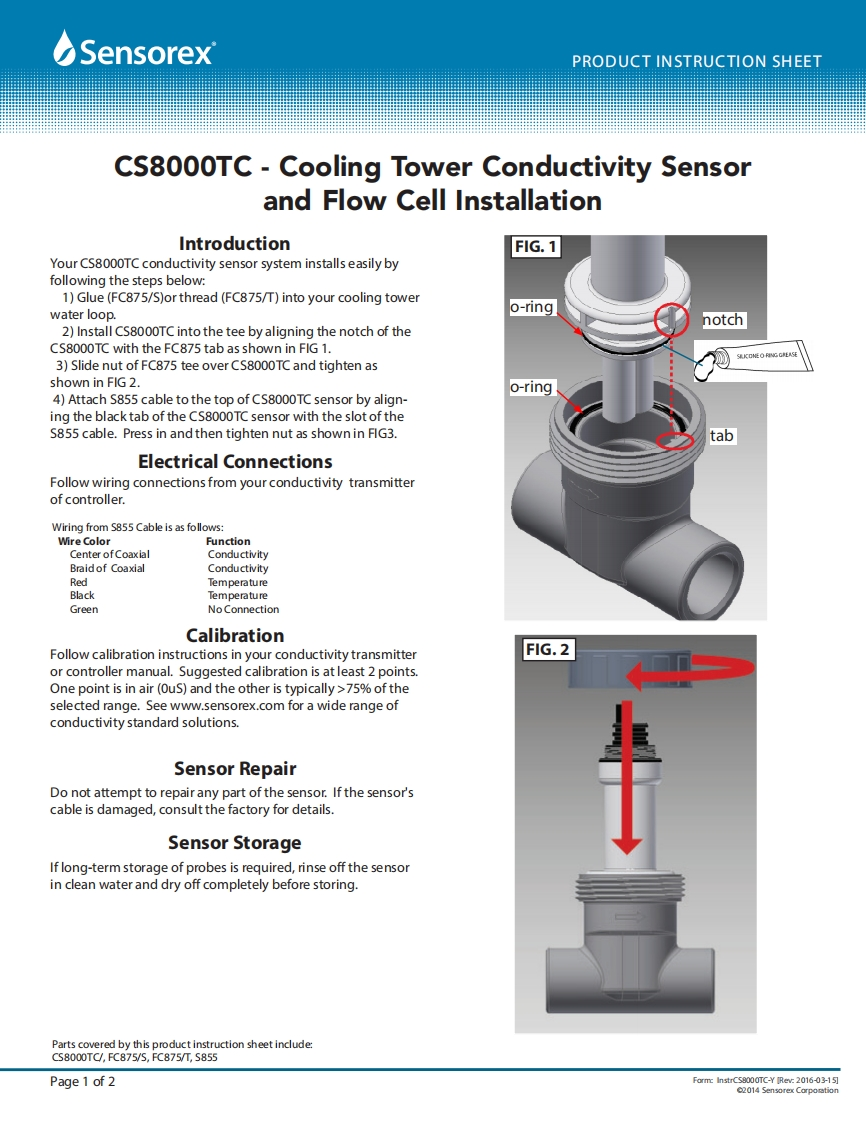

SensorexPRODUCT INSTRUCTION SHEETCS8000TC-Cooling Tower Conductivity Sensorand Flow Cell InstallationIntroductionFIG.1Your CS8000TC conductivity sensor system installs easily byfollowing the steps below:1)Glue(FC875/S)or thread (FC875/T)into your cooling towerwater loop.o-ringnotch2)Install CS8000TC into the tee by aligning the notch of theCS8000TC with the FC875 tab as shown in FIG 1.S黑CONEO RINGGREASE3)Slide nut of FC875 tee over CS8000TC and tighten asshown in FIG 2.o-ring4)Attach S855 cable to the top of CS8000TC sensor by align-ing the black tab of the CS8000TC sensor with the slot of the$855 cable.Press in and then tighten nut as shown in FIG3.tabElectrical ConnectionsFollow wiring connections from your conductivity transmitterof controller.Wiring from S855 Cable is as follows:Wire ColorFunctionCenter ofCoaxialConductivityBraid of CoaxialConductivityRedTemperatureBlackTemperatureGreenNo ConnectionCalibrationFollow calibration instructions in your conductivity transmitterF1G.2or controller manual.Suggested calibration is at least 2 points.One point is in air(OuS)and the other is typically >75%of theselected range.See www.sensorex.com for a wide range ofconductivity standard solutions.Sensor RepairDo not attempt to repair any part of the sensor.If the sensor'scable is damaged,consult the factory for detailsSensor StorageIf long-term storage of probes is required,rinse off the sensorin clean water and dry off completely before storing.Parts covered by this product instruction sheet include:Cs8000TC☑，C875/s,FC875/T,S855Page 1 of 2Form:InstrCS9000TC-Y [Rev:2016-03-15]2014 Sensorex Corporstion
