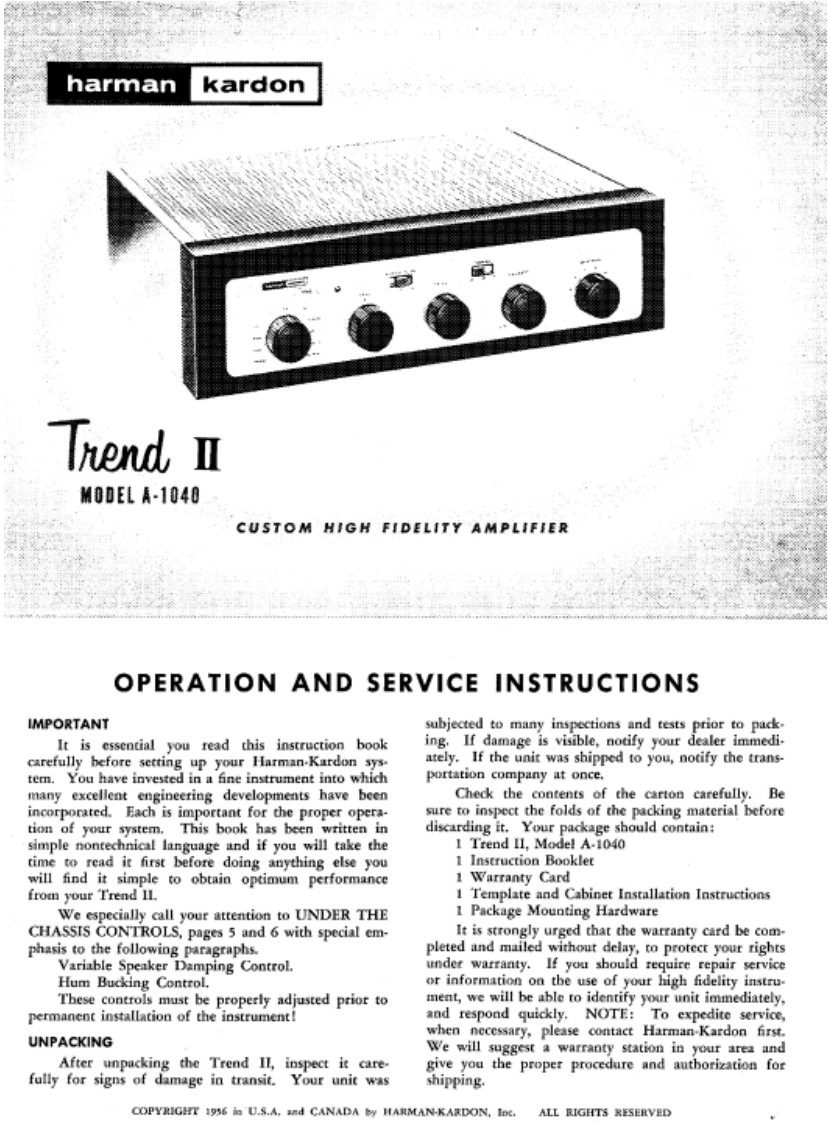

harmankardonTiend IM00ELA-1040CUSTOM HIGH FIDELITY AMPLIFIEROPERATION AND SERVICE INSTRUCTIONSIMPORTANTsubjected to many inspections and tests prior to pack.It is essential you read this instruction booking.If damage is visible,notify your dealer immedi-carefully hefore setting up your Harman-Kardon sys.ately.If the unit was shipped to you,notify the trans-tem.You have invested in a fine instrument into whichportation company at once.many excellent engineering developments have beenCheck the contents of the carton carefully.Beincorporated.Each is important for the proper opera-sure to inspect the folds of the packing material beforetion of your system.This book has been written indiscarding it.Your package should contain:simple nontechnical language and if you will take the1 Trend II,Mode!A-1040time to read it first before doing anything else you1Instruction Bookletwill find it simple to obtain optimum performance1Warranty Cardfrom your Trend Il.1 Template and Cabinet Installation InstructionsWe especially call your attention to UNDER THE1 Package Mounting HardwareCHASSIS CONTROLS,pages 5 and 6 with special em-It is strongly urged that the warranty card be com-phasis to the following paragraphs.pleted and mailed without delay,to protect your rightsVariable Speaker Damping Control.under warranty.If you should require repair serviceHum Bucking Control.or information on the use of your high fidelity instru.These controls must be properly adjusted prior toment,we will be able to identify your unit immediately,permanent installation of the instrument!and respond quickly.NOTE:To expedite service,UNPACKINGwhen necessary,please contact Harman-Kardon first.We will suggest a warranty station in your area andAfter unpacking the Trend II,inspect it care.give you the proper procedure and authorization forfully for signs of damage in transit.Your unit wasshipping.COPYRIGHT 1956 in U.S.A.and CANADA by HARMAN-KARDON,Ine.ALL RIGHTS XESERVED
