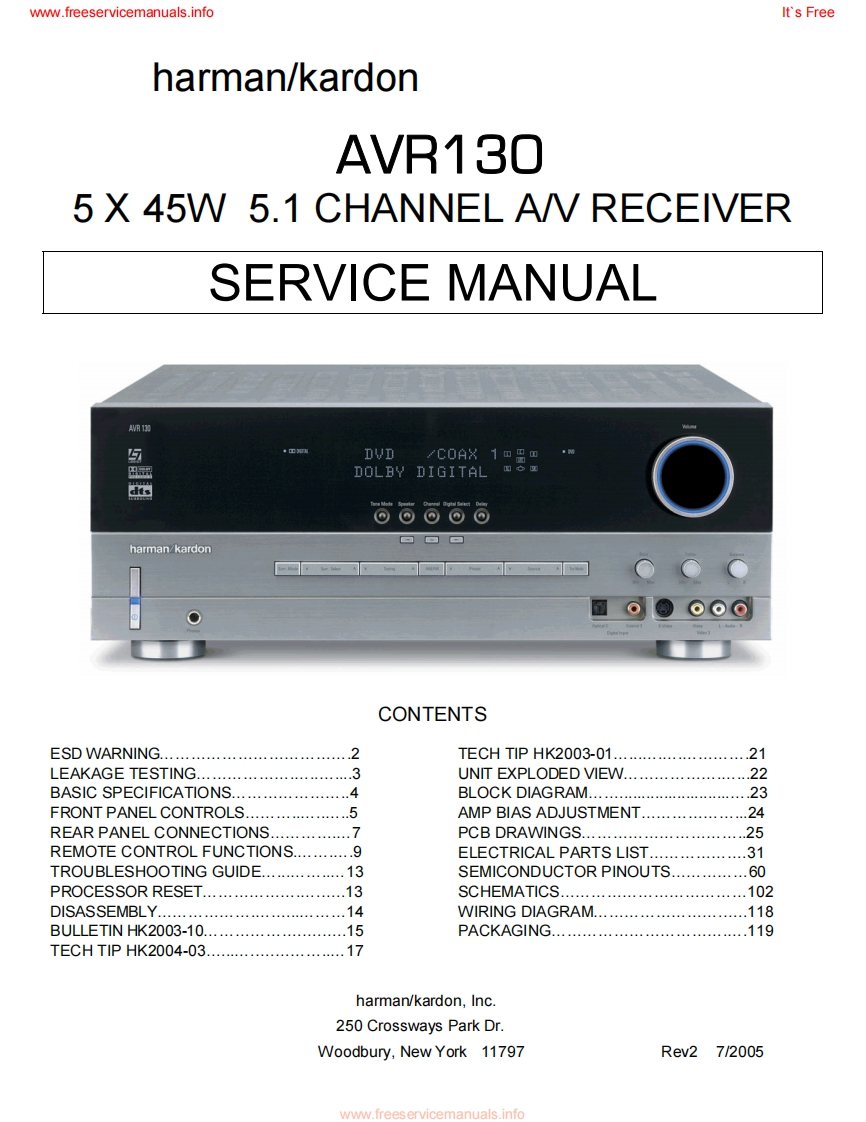

www.freeservicemanuals.infoIt's Freeharman/kardonAVR1305 X 45W 5.1 CHANNEL AV RECEIVERSERVICE MANUALA国互DVD/C0AX1四田四D0 LBY DIGITAL四om西o6⊙⊙8▣▣▣harman/kardon■⊙⊙⊙CONTENTSESD WARNING......2TECH TIP HK2003-01......21LEAKAGE TESTING.3UNIT EXPLODED VIEW...................22BASIC SPECIFICATIONS..................4BLOCK DIAGRAM...........23FRONT PANEL CONTROLS....5AMP BIAS ADJUSTMENT..............4REAR PANEL CONNECTIONS..7PCB DRAWINGS.........................25REMOTE CONTROL FUNCTIONS............9ELECTRICAL PARTS LIST...................31TROUBLESHOOTING GUIDE.................13SEMICONDUCTOR PINOUTS...............60PROCESSOR RESET......13SCHEMATICS....102DISASSEMBLY.......14WIRING DIAGRAM..........................118BULLETIN HK2003-10..15PACKAGING.........119TECH TIP HK2004-03................17harman/kardon,Inc.250 Crossways Park Dr.Woodbury,New York 11797Rev27/2005www.freeservicemanuals.info
