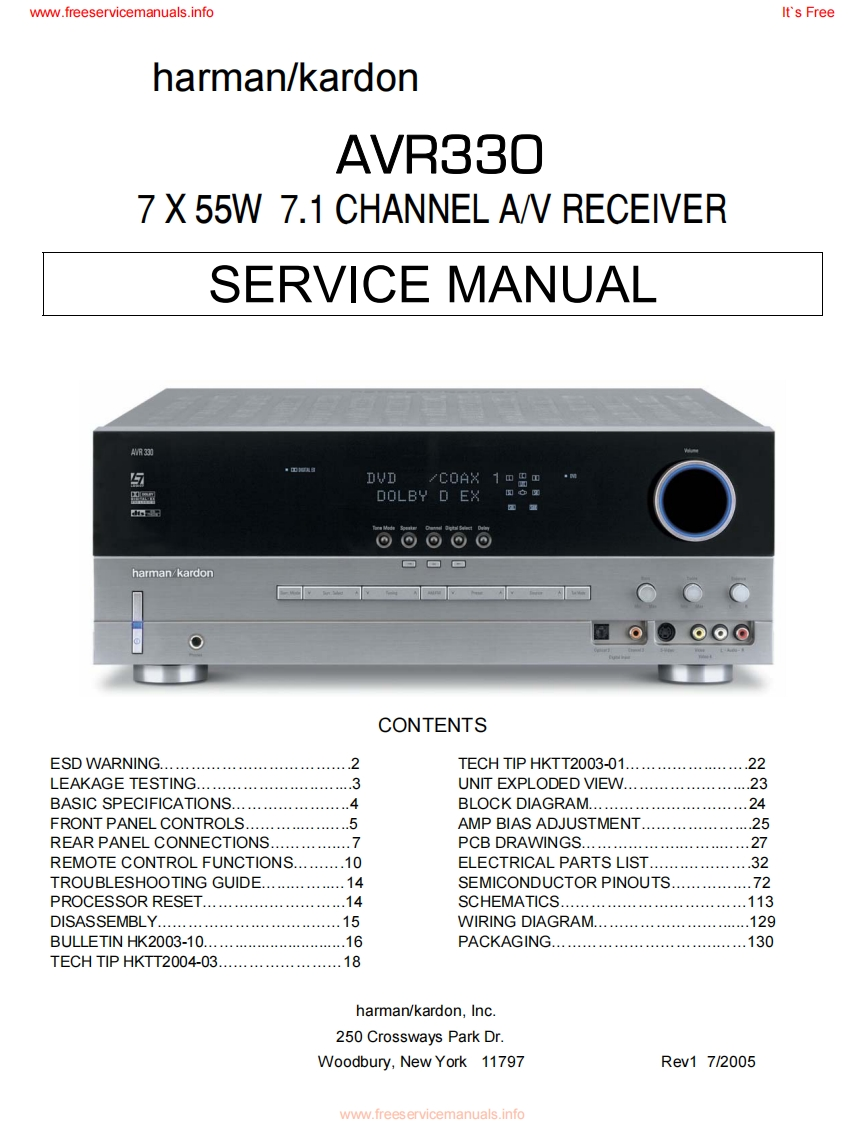

www.freeservicemanuals.infoIt's Freeharman/kardonAVR3307 X 55W 7.1 CHANNEL AN RECEIVERSERVICE MANUALAVR 330互DVD/C0AX1四田四國DOLBY D EX四o四n6⊙o司回回回harman/kardon画⊙⊙CONTENTSESD WARNING..........2TECH TIP HKTT2003-01......................22LEAKAGE TESTING.心UNIT EXPLODED VIEW.....................23BASIC SPECIFICATIONS.....................4BLOCK DIAGRAM.....2FRONT PANEL CONTROLS........5AMP BIAS ADJUSTMENT....................25REAR PANEL CONNECTIONS.........7PCB DRAWINGS..............27REMOTE CONTROL FUNCTIONS..........10ELECTRICAL PARTS LIST...................32TROUBLESHOOTING GUIDE.14SEMICONDUCTOR PINOUTS.72PROCESSOR RESET........14SCHEMATICS.113DISASSEMBLY........15WIRING DIAGRAM..........................129BULLETIN HK2003-10.........................16PACKAGING...........130TECH TIP HKTT2004-03..........18harman/kardon,Inc.250 Crossways Park Dr.Woodbury,New York 11797Rev17/2005www.freeservicemanuals.info
