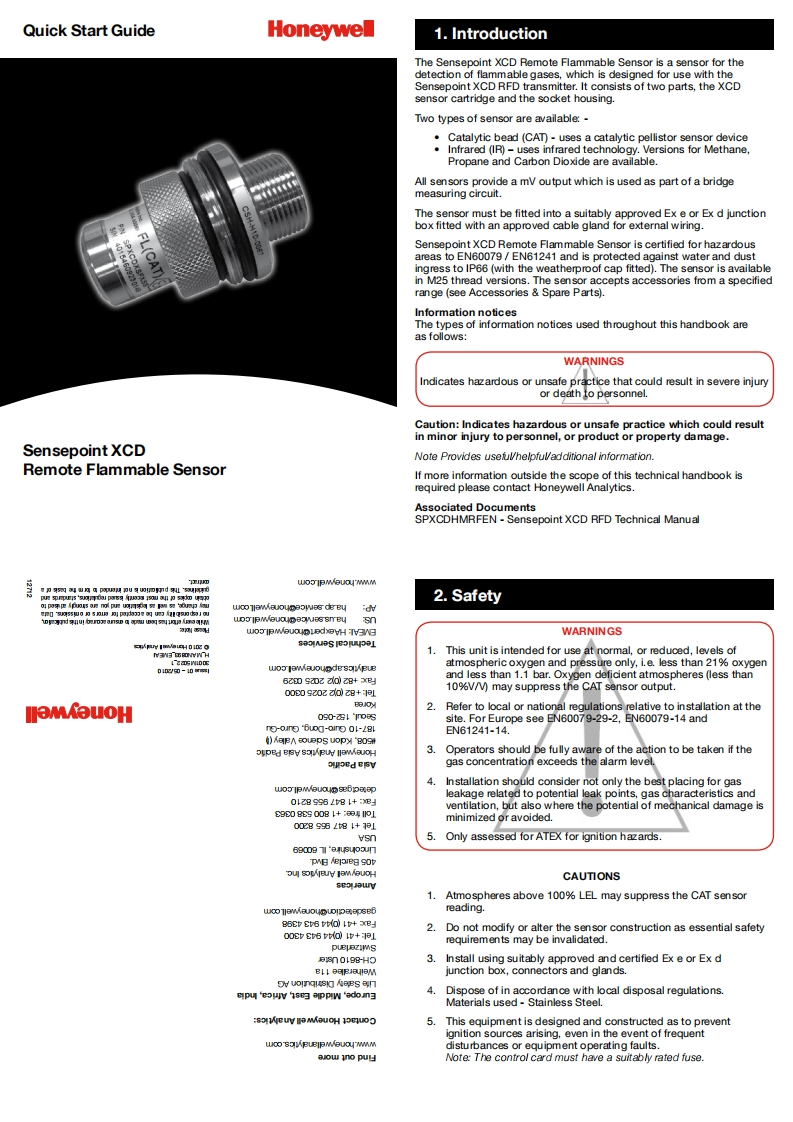

Quick Start GuideHoneywel1.IntroductionThe Sensepoint XCD Remote Flammable Sensor is a sensor for thedetection of flammable gases,which is designed for use with theSensepoint XCD RFD transmitter.It consists of two parts,the XCDsensor cartridge and the socket housing.Two types of sensor are available:-Catalytic bead (CAT)-uses a catalytic pellistor sensor deviceInfrared (IR)-uses infrared technology.Versions for Methane,Propane and Carbon Dioxide are available.All sensors provide a mV output which is used as part of a bridgemeasuring circuit.The sensor must be fitted into a suitably approved Ex e or Ex d junctionbox fitted with an approved cable gland for external wiring.Sensepoint XCD Remote Flammable Sensor is certified for hazardous(CATareas to EN60079 EN61241 and is protected against water and dustingress to IP66(with the weatherproof cap fitted).The sensor is availablein M25 thread versions.The sensor accepts accessories from a specifiedrange (see Accessories Spare Parts).Information noticesThe types of information notices used throughout this handbook areas follows:WARNINGSIndicates hazardous or unsafe practice that could result in severe injuryor death to personnel.Caution:Indicates hazardous or unsafe practice which could resultin minor injury to personnel,or product or property damage.Sensepoint XCDNote Provides usefulhelpfuladditional information.Remote Flammable SensorIf more information outside the scope of this technical handbook isrequired please contact Honeywell Analytics.Associated DocumentsSPXCDHMRFEN-Sensepoint XCD RFD Technical Manual2.Safety即”aw001eMaU0495WesG由BUidvsnw0 IPMeua818d8H3N阳WARNINGSThis unit is intended for use at normal,or reduced,levels ofwoo lawauoupdesopuBatmospheric oxygen and pressure only,i.e.less than 21%oxygen6200 Saoz alo)ZB+xEyand less than 1.1 bar.Oxygen deficient atmospheres (less than0030sZ0Z0z28+l10%V/V)may suppress the CAT sensor output.aMouOH2.Refer to local or national regulations relative to installation at the090-9lr08site.For Europe see EN60079-29-2,EN60079-14 andno-oune 'Bug-oine 01-28L日N61241-14.(AaBA soueps uopy 'BOSoupBd BBv saBuv llawauoH3.Operators should be fully aware of the action to be taken if theEd EBVgas concentration exceeds the alarm level.4.Installation should consider not only the best placing for gasU05 IPMeu08S6D印leakage related to potential leak points,gas characteristics and01Z8995L81+28ventilation,but also where the potential of mechanical damage is9008E900B1+e4IP1minimized or avoided.00289L81+1vsn5.Only assessed for ATEX for ignition hazards.69009 TI'ausyoounDA日ePB阳SOPoul sop/jeuy laM/euoHCAUTIONSseoJouy1.Atmospheres above 100%LEL may suppress the CAT sensorwcollewauoupuoppaepseBreading.5Eb6td1+3xB」2.Do not modify or alter the sensor construction as essential safetyOOE Cr6 tt(o+lrequirements may be invalidated.0198-HO3.Install using suitably approved and certified Ex e or Ex dBII eaBuayleMjunction box,connectors and glands.pP4eWh5吗pP刚Wdon归Dispose of in accordance with loca
