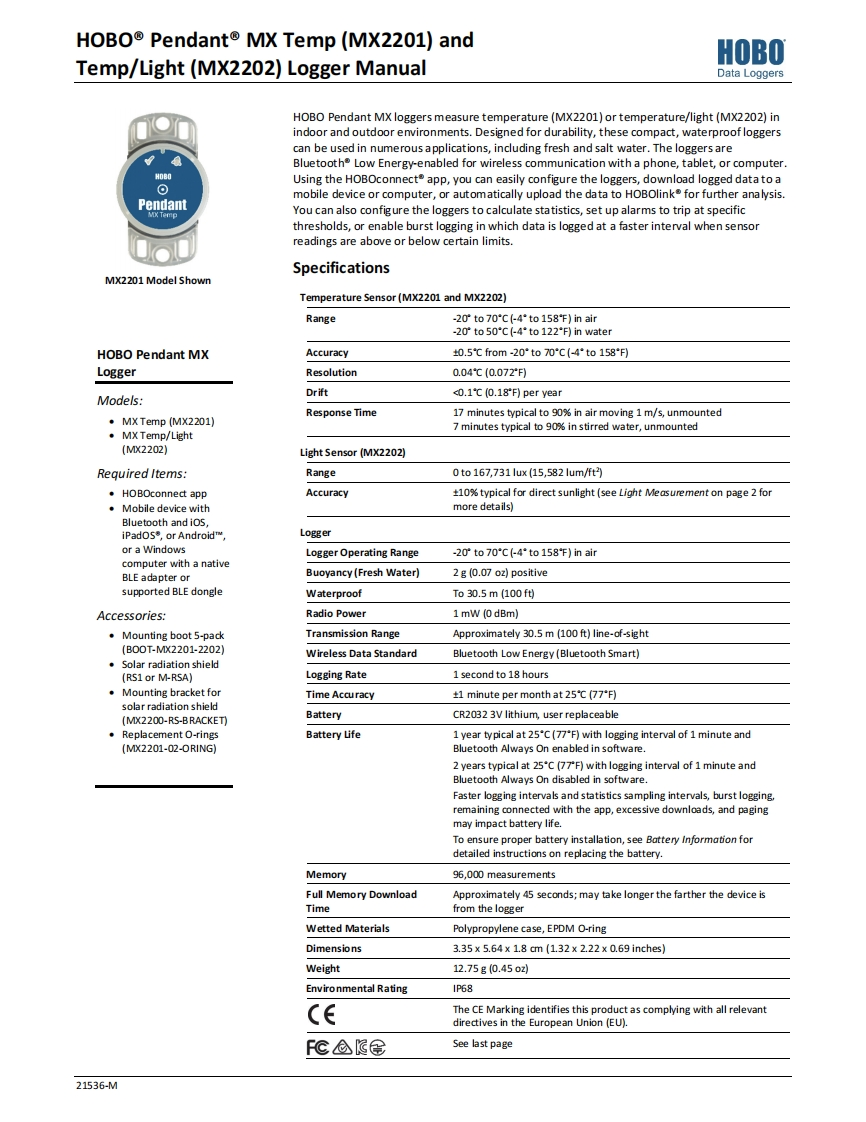

HOBO Pendant MX Temp(MX2201)andTemp/Light(MX2202)Logger ManualHOBOData LoggersHOBO Pendant MX loggers measure temperature(MX2201)or temperature/light (MX2202)inindoor and outdoor environments.Designed for durability,these compact,waterproof loggerscan be used in numerous applications,including fresh and salt water.The loggers areBluetooth Low Energy-enabled for wireless communication with a phone,tablet,or computer.Using the HOBOconnect app,you can easily configure the loggers,download logged data to a⊙mobile device or computer,or automatically upload the data to HOBOlink for further analysis.PendantMX TempYou can also configure the loggers to calculate statistics,set up alarms to trip at specificthresholds,or enable burst logging in which data is logged at a faster interval when sensorreadings are above or below certain limits.SpecificationsMX2201 Model ShownTemperature Sensor(MX2201 and MX2202)Range-20to70C(4°to158℉)in air-20*to 50*C(-4*to 122"F)in waterHOBO Pendant MXAccuracy0.5*℃from-20°to70℃(4°to158F)LoggerResolution0.04℃(0.072F)Models:Driftc0.1℃(0.18F)per yearResponse Time17 minutes typical to 90%in air moving 1 m/s,unmounted·MX Temp(MX2201)7 minutes typical to 90%in stirred water,unmounted·MX Temp/Light(WX2202)Light Sensor (MX2202)Required Items:Range0to167,731lux(15,582lum/ft·HOBOconnect appAccuracy10%typical for direct sunlight (see Light Measurement on page 2 for·Mobile device withmore details)Bluetooth and iOs,iPadOs,or AndroidMLoggeror a WindowsLogger Operating Range-20to70c(4°to158℉)inaircomputer with a nativeBLE adapter orBuoyancy (Fresh Water)2g(0.07 oz)positivesupported BLE dongleWaterproofTo30.5m(100f刊Accessories:Radio Power1mW (0dBm).Mounting boot 5-packTransmission RangeApproximately 30.5 m(100 ft)line-of-sight(B00T-wX2201-2202)Wireless Data StandardBluetooth Low Energy(Bluetooth Smart).Solar radiation shield(RS1 or M-RSA)Logging Rate1second to 18 hoursMounting bracket forTime Accuracy1 minute per month at25*℃(77产F)solar radiation shield(MX2200-RS-BRACKET)BatteryCR2032 3V lithium,user replaceable.Replacement O-ringsBattery Life1 year typical at 25'C(77*F)with logging interval of 1 minute and(MX2201-02-ORING)Bluetooth Always On enabled in software.2 years typical at 25"C (77F)with logging interval of 1 minute andBluetooth Always On disabled in software.Faster logging intervals and statistics sampling intervals,burst loggingremaining connected with the app,excessive downloads,and pagingmay impact battery life.To ensure proper battery installation,see Battery Information fordetailed instructions on replacing the battery.Memory96,000 measurementsFull Memory DownloadApproximately 45 seconds;may take longer the farther the device isTimefrom the loggerWetted MaterialsPolypropylene case,EPDM O-ringDimensions3.35×5.64×18cm(1.32×2.22×0.69 inches)Weight12.75g(0.450Environmental RatingIP68(€The CE Marking identifies this product as complying with all relevantdirectives in the European Union (EU).FC@医ESee last page21536-M
