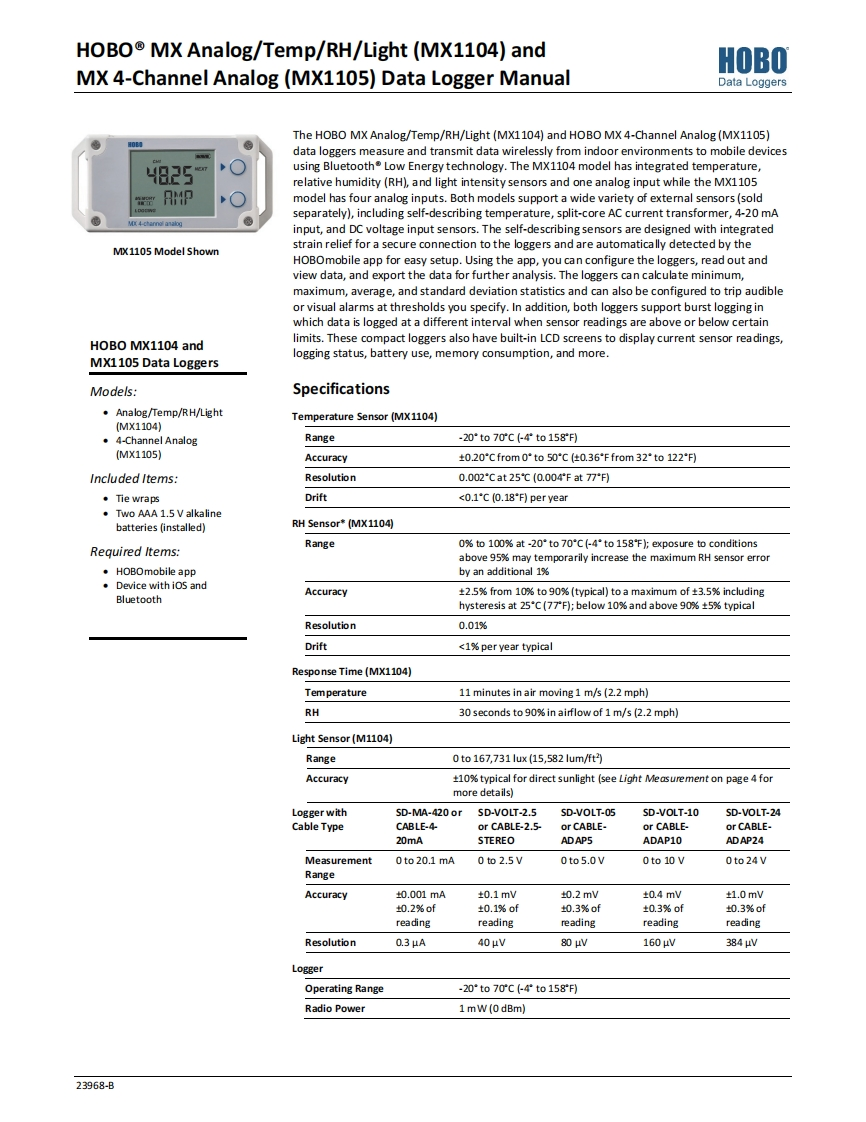

HOBO MX Analog/Temp/RH/Light (MX1104)andMX 4-Channel Analog (MX1105)Data Logger ManualHOBOData LoggersThe HOBO MX Analog/Temp/RH/Light (MX1104)and HOBO MX 4-Channel Analog(MX1105)data loggers measure and transmit data wirelessly from indoor environments to mobile devices4825using Bluetooth Low Energy technology.The MX1104 model has integrated temperature,relative humidity (RH),and light intensity sensors and one analog input while the MX1105RNPmodel has four analog inputs.Both models support a wide variety of external sensors(soldseparately),including self-describing temperature,split-core AC current transformer,4-20 mA4input,and DC voltage input sensors.The self-describing sensors are designed with integratedMX1105 Model Shownstrain relief for a secure connection to the loggers and are automatically detected by theHOBOmobile app for easy setup.Using the app,you can configure the loggers,read out andview data,and export the data for further analysis.The loggers can calculate minimum,maximum,average,and standard deviation statistics and can also be configured to trip audibleor visual alarms at thresholds you specify.In addition,both loggers support burst logging inwhich data is logged at a different interval when sensor readings are above or below certainHOBO MX1104 andlimits.These compact loggers also have built-in LCD screens to display current sensor readings,logging status,battery use,memory consumption,and more.MX1105 Data LoggersModels:Specifications.Analog/Temp/RH/LightTemperature Sensor(MX1104)(MX1104).4-Channel AnalogRange-20°to70C(-4to158F(MX1105)】Accuracy±0.20°℃from0°to50℃(t0.36*F from32to122F)Included Items:Resolution0.002*℃at25℃(0.004Fat77F日)·Tie wrapsDrift<0.1*C (0.18*F)per year.Two AAA 1.5 V alkalinebatteries(installed)RH Sensor*(MX1104)Range0%to100%at-20°to70'℃(4°to158℉expo5 ure to conditionsRequired Items:above 95%may temporarily increase the maximum RH sensor error◆HOBOmobile appby an additional 1%.Device with ios andAccuracy2.5%from 10%to 90%(typical)to a maximum of 3.5%includingBluetoothhysteresis at 25'C(77F);below 10%and above 90%5%typicalResolution0.01%Drift<1%per year typicalResponse Time (MX1104)Temperature11 minutes in air moving 1 m/s(2.2 mph)RH30 seconds to 90%in airflow of 1 m/s (2.2 mph)Light Sensor(M1104)】Range0to167,731lux(15,582lum/ftAccuracy10%typical for direct sunlight(see Light Measurement on page 4 formore details)Logger withSD-MA-420 orSD-VOLT-2.5SD-VOLT-05SD-VOLT-105D-V0LT-24Cable TypeCABLE-4or CABLE-2.5-or CABLE-or CABLE.or CABLE-20mASTEREOADAP5ADAP10ADAP24Measurement0 to 20.1 mA0 to 2.5V0 to5.0VOto 10V0to24VRangeAccuracy±0.001mA0.1mW0.2mV0.4mW1.0mW±0.2%of±0.1%of0.3%of±0.3%of±0.3%ofreadingreadingreadingreadingreadingResolution0.3μA40μV80μV160μV384μVLoggerOperating Range-20°to70℃(4to158*F刊Radio Power1 mW(0 dBm)23968-B
