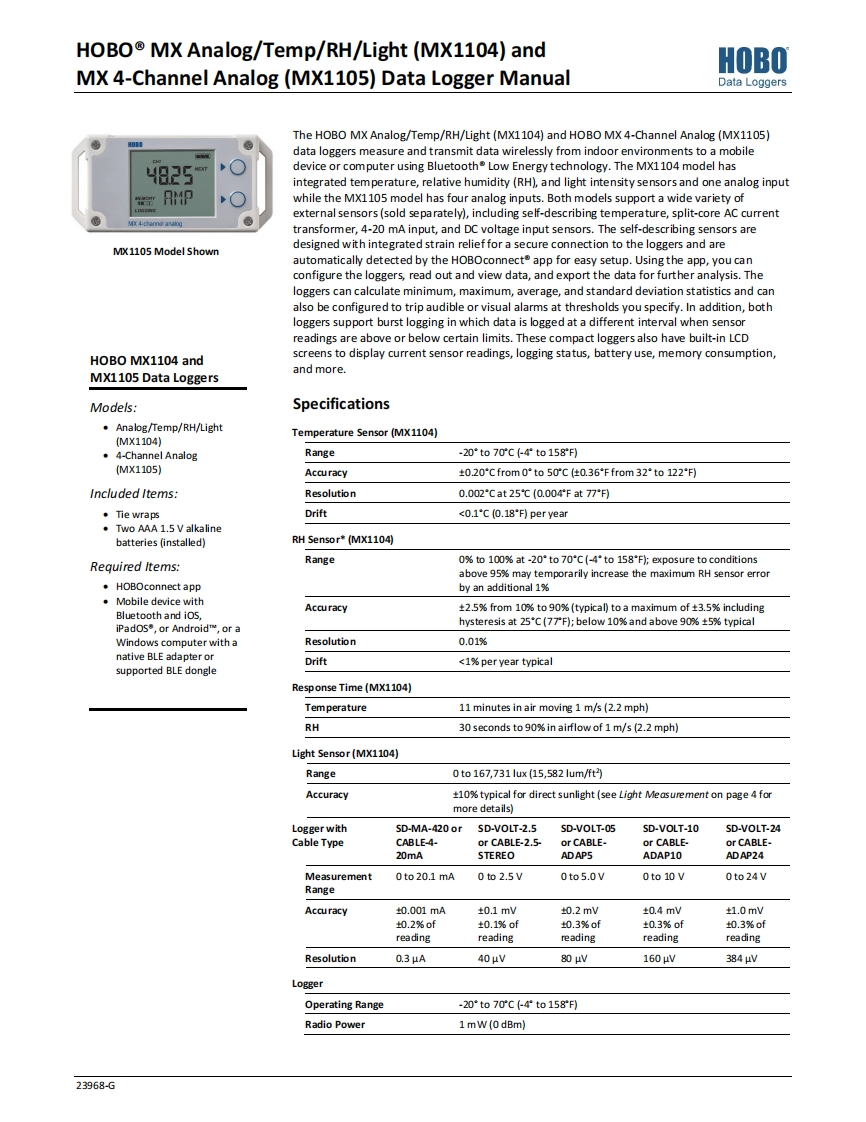

HOBO MX Analog/Temp/RH/Light (MX1104)andMX 4-Channel Analog (MX1105)Data Logger ManualHOBOData LoggersThe HOBO MX Analog/Temp/RH/Light (MX1104)and HOBO MX 4-Channel Analog(MX1105)data loggers measure and transmit data wirelessly from indoor environments to a mobile4825device or computer using BluetoothLow Energy technology.The MX1104 model hasintegrated temperature,relative humidity(RH),and light intensity sensors and one analog inputRNPwhile the MX1105 model has four analog inputs.Both models support a wide variety ofexternal sensors(sold separately),including self-describing temperature,split-core AC currenttransformer,4-20 mA input,and DC voltage input sensors.The self-describing sensors areMX1105 Model Showndesigned with integrated strain relief for a secure connection to the loggers and areautomatically detected by the HOBOconnect app for easy setup.Usingthe app,you canconfigure the loggers,read out and view data,and export the data for further analysis.Theloggers can calculate minimum,maximum,average,and standard deviation statistics and canalso be configured to trip audible or visual alarms at thresholds you specify.In addition,bothloggers support burst logging in which data is logged at a different interval when sensorreadings are above or below certain limits.These compact loggers also have built-in LCDHOBO MX1104 andscreens to display current sensor readings,logging status,battery use,memory consumption,and more.MX1105 Data LoggersModels:Specifications.Analog/Temp/RH/LightTemperature Sensor(MX1104)(MX1104)·4-Channel AnalogRange-20°to70C(4°to158*F(MX1105)Accuracy±0.20°Cfrom0°to50C(t0.36*F from32to122F月Included Items:Resolution0.002Cat25℃(0.004Fat77F)·Tie wrapsDrift<0.1*C (0.18*F)per year·Two AAA1.5 V alkalinebatteries(installed)RH Sensor*(MX1104)0%to100%at-20°to70°C(-4°to158Fh:epo5 ure to conditionsRequired Items:Rangeabove 95%may temporarily increase the maximum RH sensor error。HOBOconnect appby an additional 1%·Mobile device withAccuracy2.5%from 10%to 90%(typical)to a maximum of 3.5%includingBluetooth and iOs,hysteresis at 25'C(77F);below 10%and above 90%5%typicaliPados,or AndroidM,or aWindows computer with aResolution0.01%native BLE adapter orDrift<1%per year typicalsupported BLE dongleResponse Time (MX1104)Temperature11 minutes in air moving 1 m/s(2.2 mph)RH30 seconds to 90%in airflow of 1 m/s (2.2 mph)Light Sensor(MX1104)Range0to167,731ux(15,582lum/ftAccuracy10%typical for direct sunlight (see Light Measurement on page 4 formore details)Logger withSD-MA-420 orSD-VOLT-2.5SD-VOLT-05SD-VOLT-10SD-VOLT-24Cable TypeCABLE-4-or CABLE-2.5-or CABLE-or CABLE-or CABLE-20mASTEREOADAP5ADAP10ADAP24Measurement0 to 20.1 mA0 to 2.5V0 to5.0VO to 10 V0to24VRangeAccuracy±0.001mA0.1mW0.2mW±0.4mW1.0mW0.2%of±0.1%of0.3%of±0.3%of0.3%ofreadingreadingreadingreadingreadingResolution0.3μA40μV80μV160μW384μVLoggerOperating Range-20°to70℃【4to158F)Radio Power1mW(0 dBm)23968-G
