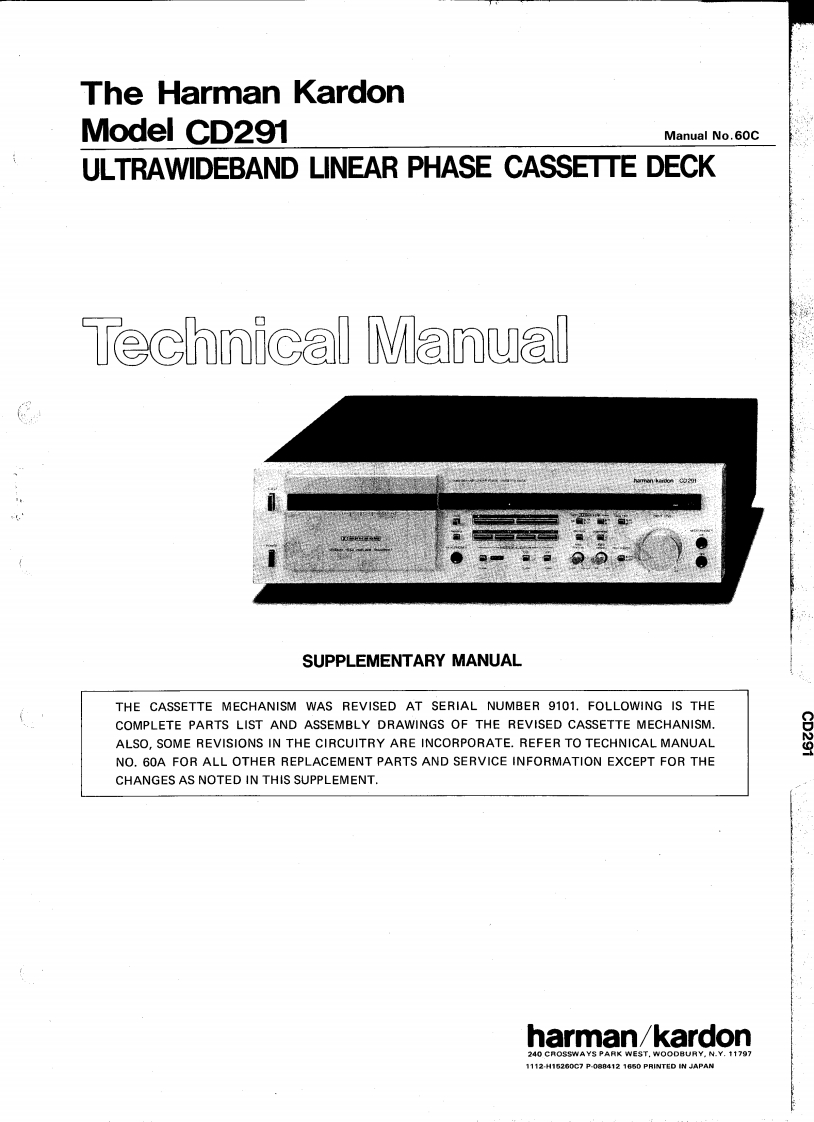

The Harman KardonModel CD291Manual No.60CULTRAWIDEBAND LINEAR PHASE CASSETTE DECKTechnical ManualSUPPLEMENTARY MANUALTHE CASSETTE MECHANISM WAS REVISED AT SERIAL NUMBER 9101.FOLLOWING IS THECOMPLETE PARTS LIST AND ASSEMBLY DRAWINGS OF THE REVISED CASSETTE MECHANISM.ALSO,SOME REVISIONS IN THE CIRCUITRY ARE INCORPORATE.REFER TO TECHNICAL MANUALCD291NO.60A FOR ALL OTHER REPLACEMENT PARTS AND SERVICE INFORMATION EXCEPT FOR THECHANGES AS NOTED IN THIS SUPPLEMENT.harman/kardon240 CROSSWAYS PARK WEST.WOODBURY.N.Y.117971112-H15260C7 P-088412 1650 PRINTED IN JAPAN
