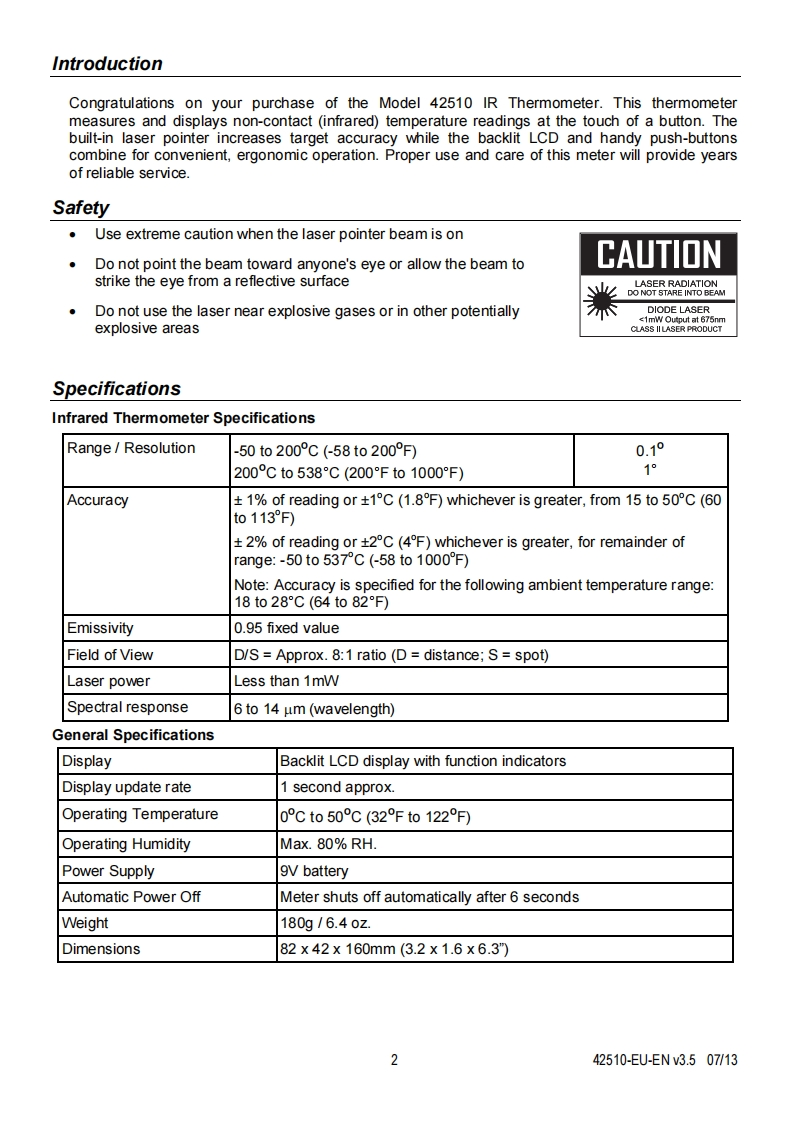

IntroductionCongratulations on your purchase of the Model 42510 IR Thermometer.This thermometermeasures and displays non-contact (infrared)temperature readings at the touch of a button.Thebuilt-in laser pointer increases target accuracy while the backlit LCD and handy push-buttonscombine for convenient,ergonomic operation.Proper use and care of this meter will provide yearsof reliable service.SafetyUse extreme caution when the laser pointer beam is onDo not point the beam toward anyone's eye or allow the beam toCAUTIONstrike the eye from a reflective surfaceDo not use the laser near explosive gases or in other potentiallyDIODE LASER<1mW Output at 675nmexplosive areasCLASS II LASER PRODUCTSpecificationsInfrared Thermometer SpecificationsRange/Resolution50to200°℃(-58to200F)0.1°200°℃to538°C(200℉to1000°℉)1°Accuracy±1%of reading or±1°C(1.8F)whichever is greater,from15to50°C(60to113°F±2%of reading or±2c(4℉)whichever is greater,.for remainder ofrange:-50 to 537C (-58 to 1000F)Note:Accuracy is specified for the following ambient temperature range:18to28℃(64to82°F)Emissivity0.95 fixed valueField of ViewD/S Approx.8:1 ratio (D=distance;S=spot)Laser powerLess than 1mWSpectral response6 to 14 um (wavelength)General SpecificationsDisplayBacklit LCD display with function indicatorsDisplay update rate1 second approx.Operating Temperature0cto50°℃(32Fto122F)Operating HumidityMax.80%RH.Power Supply9V batteryAutomatic Power OffMeter shuts off automatically after 6 secondsWeight180g/6.40z.Dimensions82X42×160mm(3.2x1.6×6.3"242510-EU-ENv3.507/13
