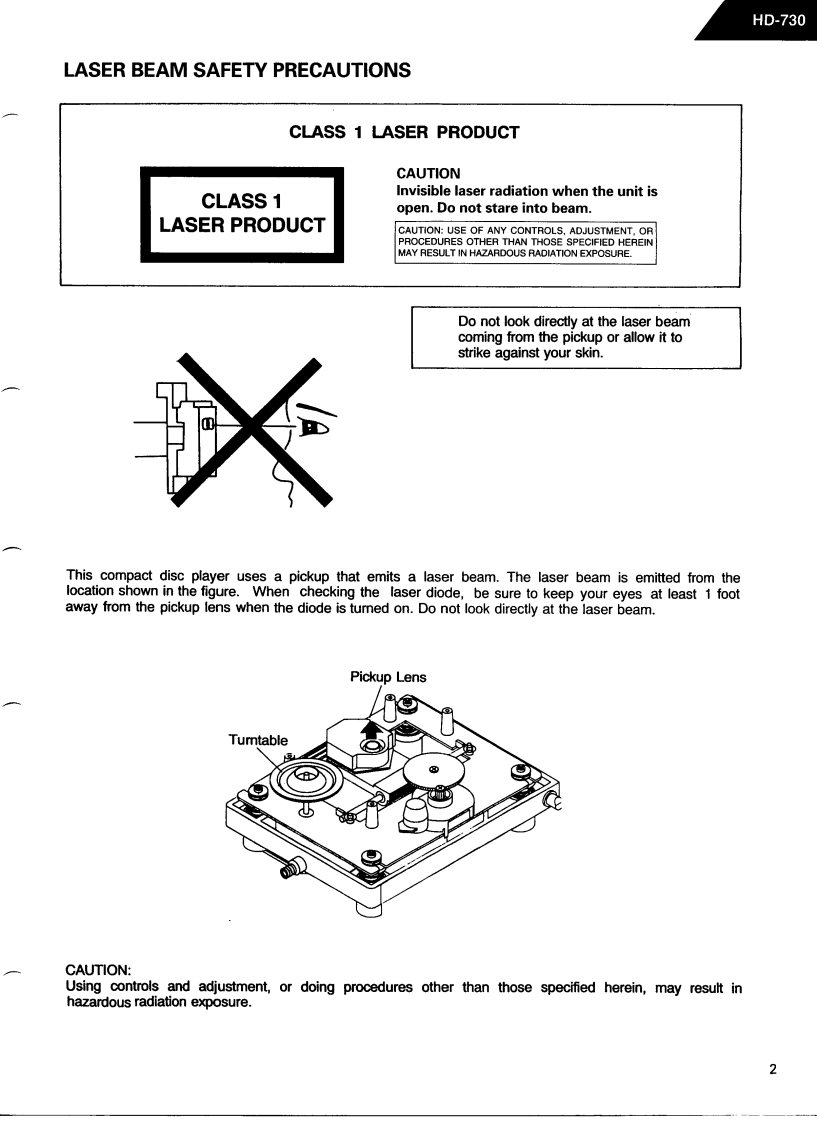

HD-730LASER BEAM SAFETY PRECAUTIONSCLASS 1 LASER PRODUCTCAUTIONCLASS 1Invisible laser radiation when the unit isopen.Do not stare into beam.LASER PRODUCTCAUTION:USE OF ANY CONTROLS,ADJUSTMENT,ORPROCEDURES OTHER THAN THOSE SPECIFIED HEREINMAY RESULT IN HAZARDOUS RADIATION EXPOSURE.Do not look directly at the laser beamcoming from the pickup or allow it tostrike against your skin.This compact disc player uses a pickup that emits a laser beam.The laser beam is emitted from thelocation shown in the figure.When checking the laser diode,be sure to keep your eyes at least 1 footaway from the pickup lens when the diode is tumed on.Do not look directly at the laser beam.Pickup LensTurntableCAUTION:Using controls and adjustment,or doing procedures other than those specified herein,may result inhazardous radiation exposure.2
