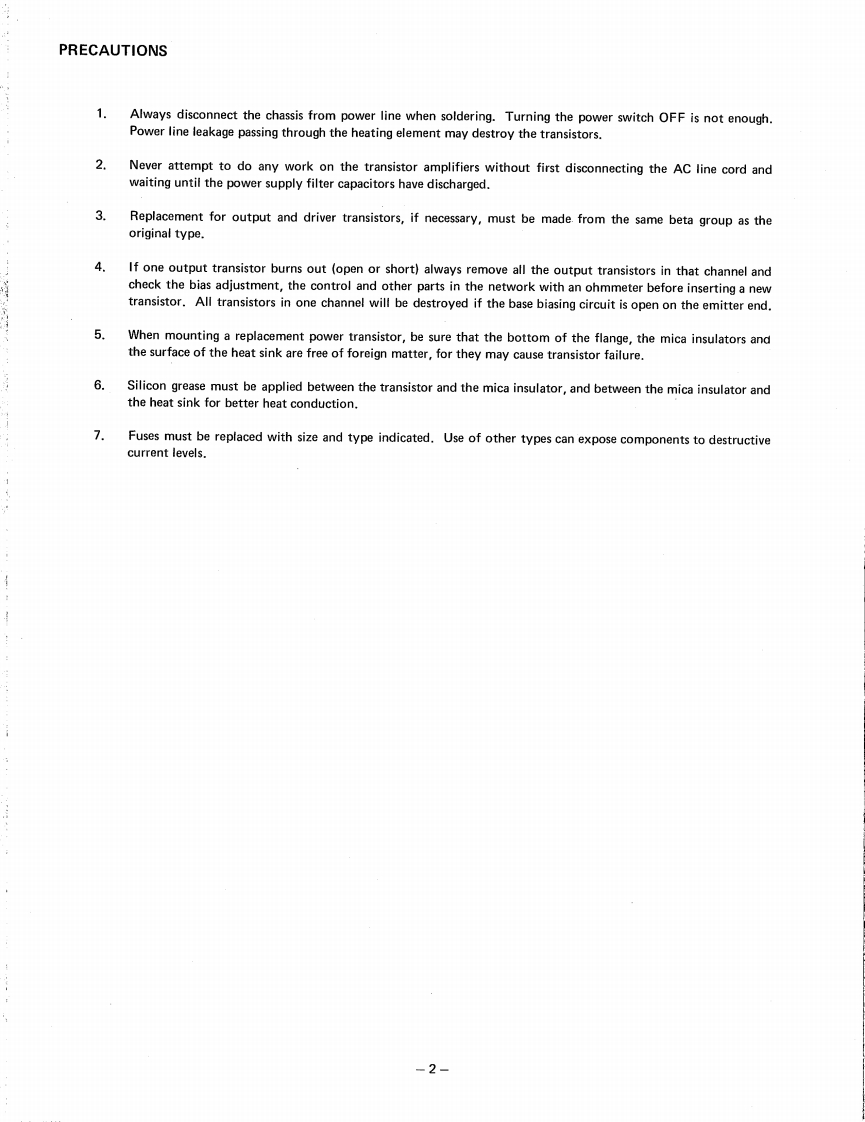

PRECAUTIONS1.Always disconnect the chassis from power line when soldering.Turning the power switch OFF is not enough.Power line leakage passing through the heating element may destroy the transistors.2.Never attempt to do any work on the transistor amplifiers without first disconnecting the AC line cord andwaiting until the power supply filter capacitors have discharged.3Replacement for output and driver transistors,if necessary,must be made.from the same beta group as theoriginal type.4.If one output transistor burns out (open or short)always remove all the output transistors in that channel andcheck the bias adjustment,the control and other parts in the network with an ohmmeter before inserting a newtransistor.All transistors in one channel will be destroyed if the base biasing circuit is open on the emitter end.5.When mounting a replacement power transistor,be sure that the bottom of the flange,the mica insulators andthe surface of the heat sink are free of foreign matter,for they may cause transistor failure.6Silicon grease must be applied between the transistor and the mica insulator,and between the mica insulator andthe heat sink for better heat conduction.1Fuses must be replaced with size and type indicated.Use of other types can expose components to destructivecurrent levels....-2
