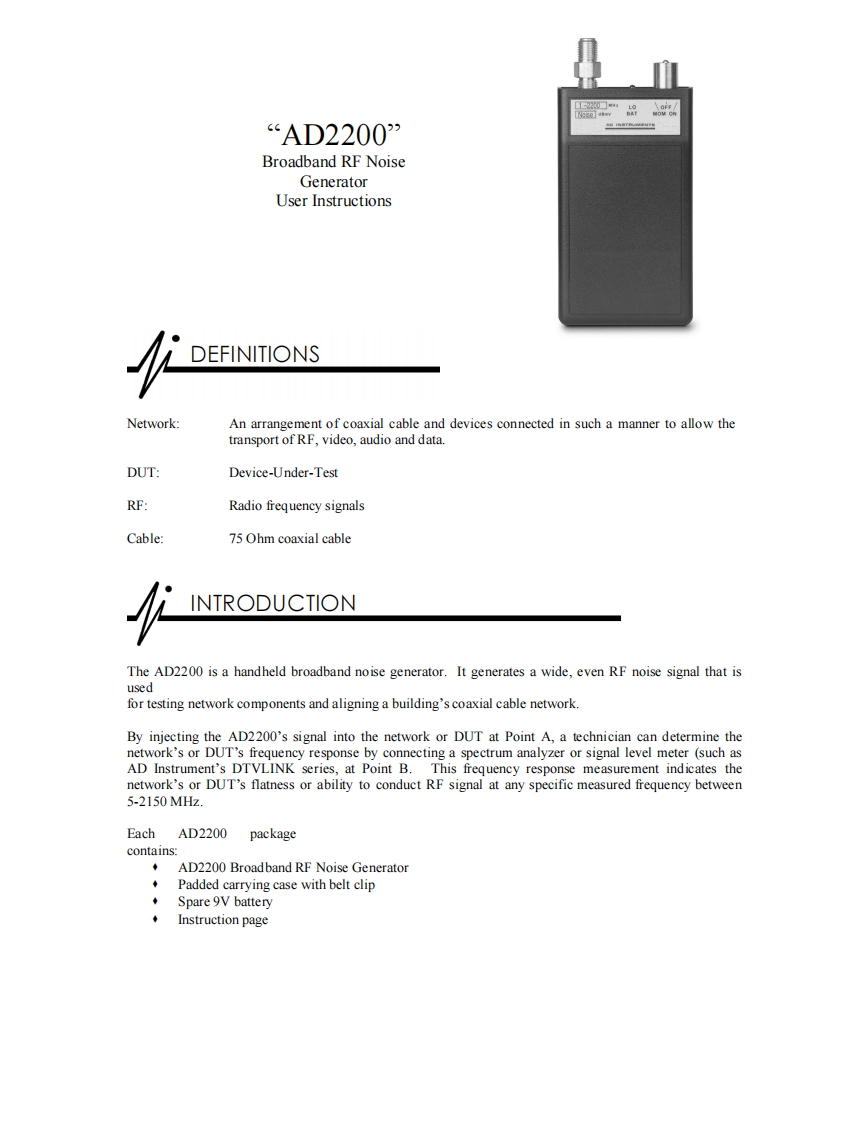

品“AD2200”Broadband RF NoiseGeneratorUser InstructionsDEFINITIONSNetwork:An arrangement of coaxial cable and devices connected in such a manner to allow thetransport of RF,video,audio and data.DUT:Device-Under-TestRF:Radio frequency signalsCable:75 Ohm coaxial cableINTRODUCTIONThe AD2200 is a handheld broadband noise generator.It generates a wide,even RF noise signal that isusedfor testing network components and aligning a building's coaxial cable network.By injecting the AD2200's signal into the network or DUT at Point A,a technician can determine thenetwork's or DUT's frequency response by connecting a spectrum analyzer or signal level meter (such asAD Instrument's DTVLINK series,at Point B.This frequency response measurement indicates thenetwork's or DUT's flatness or ability to conduct RF signal at any specific measured frequency between5-2150MHz.EachAD2200 packagecontains:AD2200 Broadband RF Noise GeneratorPadded carrying case with belt clipSpare 9V batteryInstruction page
