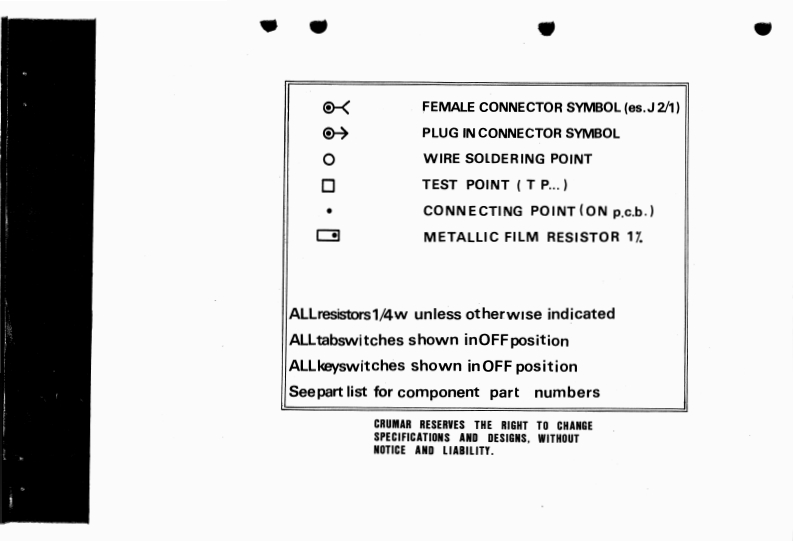

⊙XFEMALE CONNECTOR SYMBOL(es.J2/1)⊙→PLUG IN CONNECTOR SYMBOL0WIRE SOLDERING POINT▣TEST POINT T P...CONNECTING POINT(ON p.c.b.)▣METALLIC FILM RESISTOR 17ALLresistors1/4w unless otherwise indicatedALLtabswitches shown inOFFpositionALLkeyswitches shown in OFF positionSeepart list for component part numbersCRUMAR RESERVES THE RIGHT TO CHANGESPECIFICATIONS AND DESIGNS.WITHOUTNOTICE AND LIABILITY.
