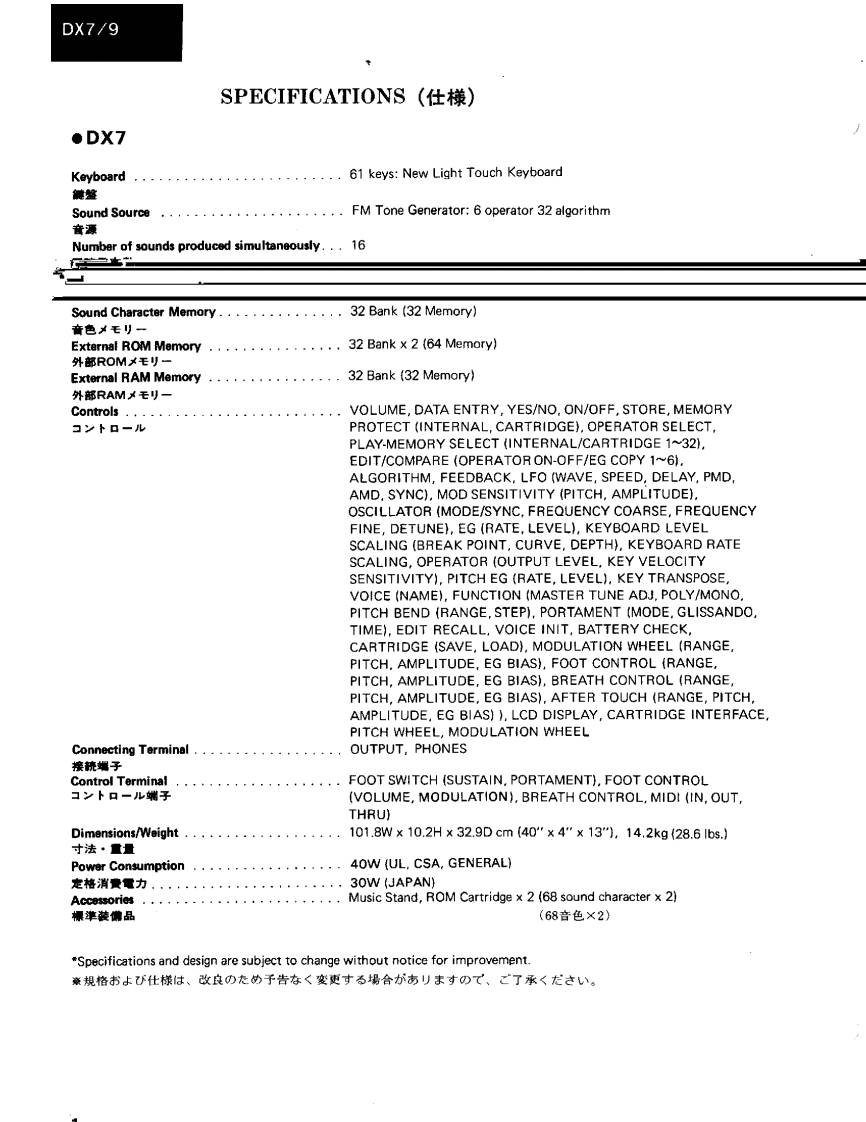

DX7/9SPECIFICATIONS(仕様)●DX7Keyboard61 keys:New Light Touch Keyboard德鉴Sound SourceFM Tone Generator:6 operator 32 algorithm音源Number of sounds produced simultaneously...16Sound Character Memory....32 Bank (32 Memory)音色毛)一External ROM Memory32Bank×2(64 Memory)外部ROM毛)一External RAM Memory.··,...·.,.·,-32 Bank (32 Memory)外部RAM毛)一Controls..-·-VOLUME,DATA ENTRY,YES/NO,ON/OFF,STORE,MEMORY3y卜口-儿PROTECT (INTERNAL,CARTRIDGE),OPERATOR SELECT,PLAY-MEMORY SELECT (INTERNAL/CARTRIDGE 1~32),EDIT/COMPARE (OPERATOR ON-OFF/EG COPY 1~6),ALGORITHM,FEEDBACK,LFO (WAVE,SPEED,DELAY,PMD,AMD,SYNC),MOD SENSITIVITY (PITCH,AMPLITUDE),OSCILLATOR (MODE/SYNC,FREQUENCY COARSE,FREQUENCYFINE,DETUNE),EG (RATE,LEVEL),KEYBOARD LEVELSCALING (BREAK POINT,CURVE,DEPTH),KEYBOARD RATESCALING,OPERATOR (OUTPUT LEVEL,KEY VELOCITYSENSITIVITY),PITCH EG(RATE,LEVEL),KEY TRANSPOSEVOICE (NAME),FUNCTION (MASTER TUNE ADJ,POLY/MONO.PITCH BEND (RANGE,STEP),PORTAMENT (MODE,GLISSANDO,TIME),EDIT RECALL,VOICE INIT,BATTERY CHECK,CARTRIDGE (SAVE,LOAD),MODULATION WHEEL (RANGE,PITCH.AMPLITUDE,EG BIAS),FOOT CONTROL (RANGE,PITCH,AMPLITUDE,EG BIAS),BREATH CONTROL (RANGE,PITCH,AMPLITUDE,EG BIAS),AFTER TOUCH (RANGE,PITCH,AMPLITUDE,EG BIAS))LCD DISPLAY,CARTRIDGE INTERFACE,PITCH WHEEL,MODULATION WHEELConnecting Terminal.·......,·.,.,,·OUTPUT,PHONES接统蝇子Control Terminal,,,.,,,,·····FOOT SWITCH (SUSTAIN,PORTAMENT),FOOT CONTROL口卜口一儿端子(VOLUME,MODULATION),BREATH CONTROL,MIDI (IN,OUT,THRU)Dimensions/Weight.......101.8W×10.2H×32.9Dcm40"×4"×131,14,2kg(28.6Ibs.】寸法·置量Power Consumption····,·········40W (UL,CSA,GENERAL)定格消费量力30W (JAPAN)Acc8 sorie时.，，，，，·.Music Stand,ROM Cartridge x 2(68 sound character x 2)棵準装牌品(68音色×2)*Specifications and design are subject to change without notice for improvement.薇规格市心仕横估、改良办走协子告本<变更寸百場合扩南少丰寸)又、了承<左这。
