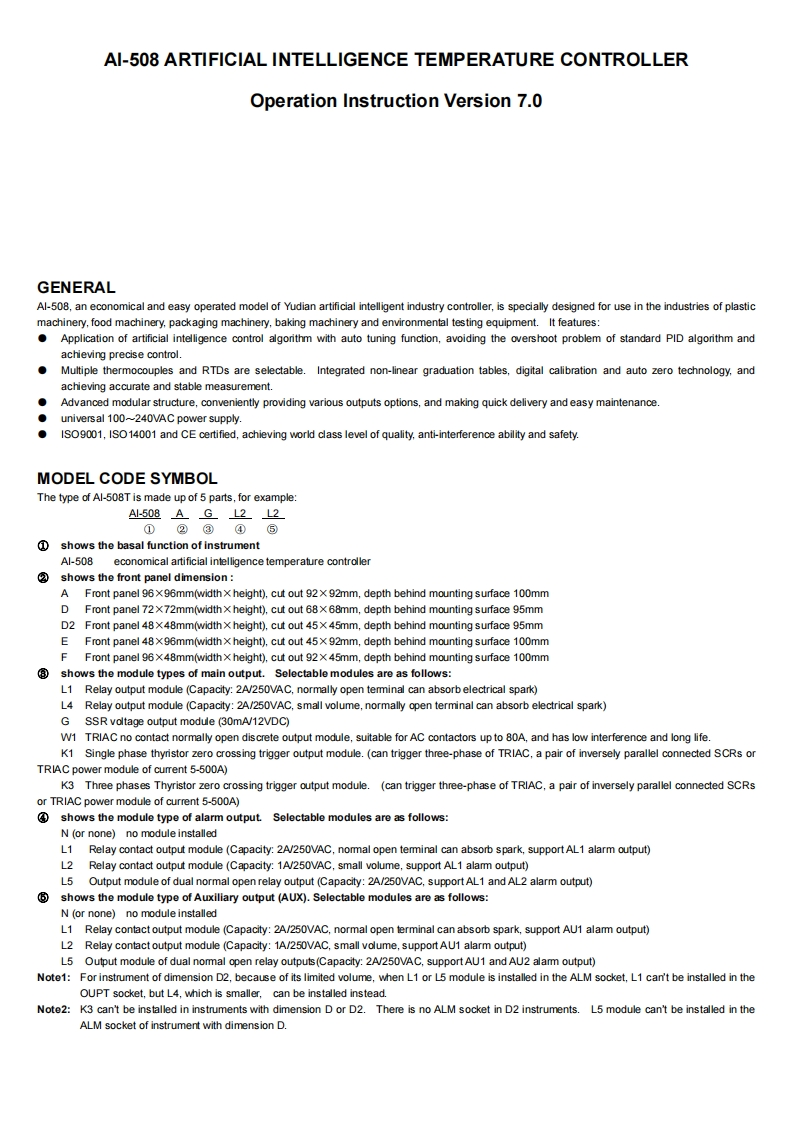

AI-508 ARTIFICIAL INTELLIGENCE TEMPERATURE CONTROLLEROperation Instruction Version 7.0GENERALAl-508,an economical and easy operated model of Yudian artificial intelligent industry controller,is specially designed for use in the industries of plasticmachinery,food machinery,packaging machinery,baking machinery and environmental testing equipment.It features:Application of artificial intelligence control algorithm with auto tuning function,avoiding the overshoot problem of standard PID algorithm andachieving precise control.Multiple thermocouples and RTDs are selectable.Integrated non-linear graduation tables,digital calibration and auto zero technology.andachieving accurate and stable measurement.Advanced modular structure,conveniently providing various outputs options,and making quick delivery and easy maintenance.universal 100~240VAC power supply.ISO9001,ISO14001 and CE certified,achieving world class level of quality,anti-interference ability and safety.MODEL CODE SYMBOLThe type of Al-508T is made up of 5 parts,for exampleAl-508 A G L2L2①②③④⑤1 shows the basal function of instrumentAl-508 economical artificial intelligence temperature controllershows the front panel dimension:A Front panel 96x96mm(width x height),cut out 92X 92mm,depth behind mounting surface 100mmD Front panel 72x72mm(widthx height),cut out 68x 68mm,depth behind mounting surface 95mmD2 Front panel 48x48mm(widthx height),cut out 45x 45mm,depth behind mounting surface 95mmE Front panel 48x96mm(width x height),cut out 45X 92mm,depth behind mounting surface 100mmF Front panel 96x48mm(widthx height).cut out 92x45mm,depth behind mounting surface 100mmshows the module types of main output.Selectable modules are as follows:L1 Relay output module (Capacity:2A/250VAC,normally open temminal can absorb electrical spark)L4 Relay output module (Capacity:2A/250VAC,small volume,normally open terminal can absorb electrical spark)G SSR voltage output module (30mA/12VDC)W1 TRIAC no contact normally open discrete output module,suitable for AC contactors up to 80A,and has low interference and long life.K1 Single phase thyristor zero crossing trigger output module.(can trigger three-phase of TRIAC,a pair of inversely parallel connected SCRs orTRIAC power module of current 5-500A)K3 Three phases Thyristor zero crossing trigger output module.(can trigger three-phase of TRIAC,a pair of inversely parallel connected SCRsor TRIAC power module of current 5-500A)shows the module type of alarm output.Selectable modules are as follows:N (or none)no module installedL1Relay contact output module(Capacity:2A/250VAC,nomal open teminal can absorb spark,support AL1 alarm output)L2 Relay contact output module(Capacity:1A/250VAC,small volume,support AL1 alam output)L5 Output module of dual normal open relay output (Capacity:2A/250VAC,support AL1 and AL2 alarm output)shows the module type of Auxiliary output (AUX).Selectable modules are as follows:N(or none)no module installedL1 Relay contact output module (Capacity:2
