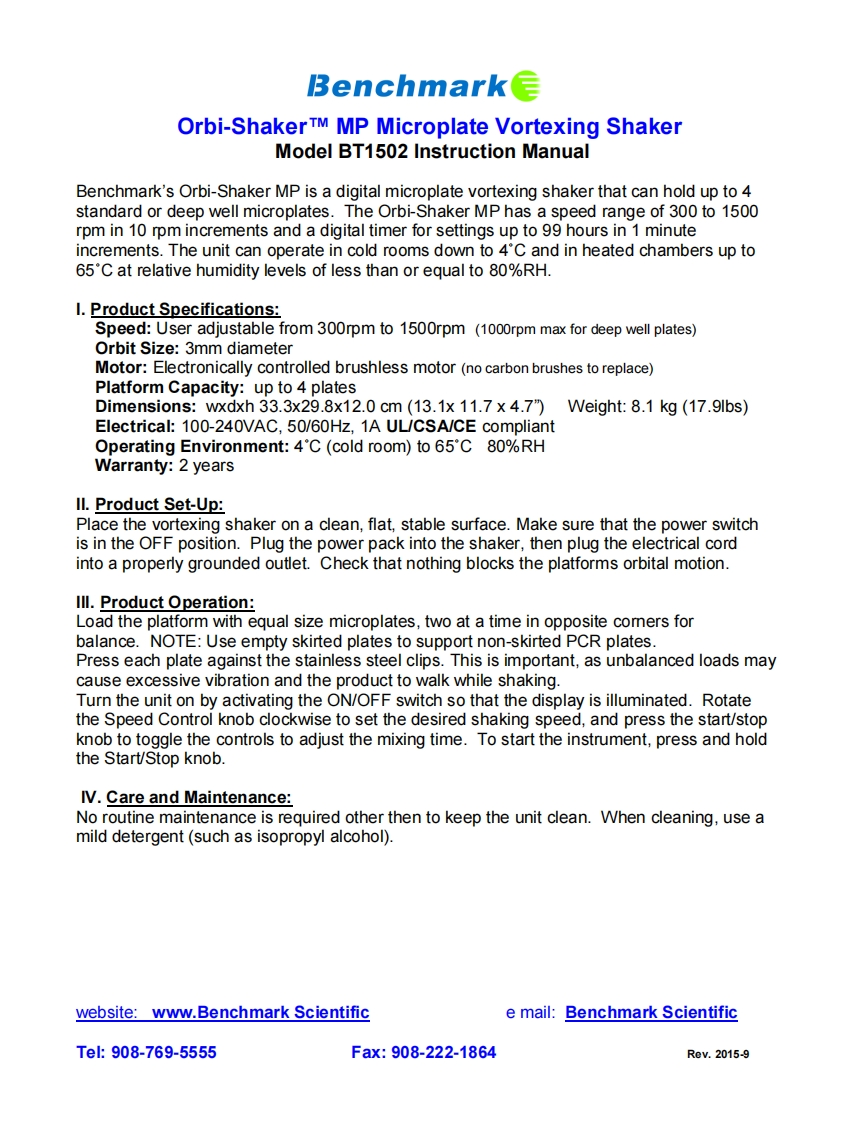

Benchmark目Orbi-ShakerTM MP Microplate Vortexing ShakerModel BT1502 Instruction ManualBenchmark's Orbi-Shaker MP is a digital microplate vortexing shaker that can hold up to 4standard or deep well microplates.The Orbi-Shaker MP has a speed range of 300 to 1500rpm in 10 rpm increments and a digital timer for settings up to 99 hours in 1 minuteincrements.The unit can operate in cold rooms down to 4'C and in heated chambers up to65'C at relative humidity levels of less than or equal to 80%RH.I.Product Specifications:Speed:User adjustable from 300rpm to 1500rpm (1000rpm max for deep well plates)Orbit Size:3mm diameterMotor:Electronically controlled brushless motor(no carbon brushes to replace)Platform Capacity:up to 4 platesDimensions:wxdxh 33.3x29.8x12.0 cm(13.1x 11.7 x 4.7")Weight:8.1 kg (17.9lbs)Electrical:100-240VAC,50/60Hz,1A UL/CSA/CE compliantOperating Environment:4'C (cold room)to 65'C 80%RHWarranty:2 yearsIl.Product Set-Up:Place the vortexing shaker on a clean,flat,stable surface.Make sure that the power switchis in the OFF position.Plug the power pack into the shaker,then plug the electrical cordinto a properly grounded outlet.Check that nothing blocks the platforms orbital motion.Ill.Product Operation:Load the platform with equal size microplates,two at a time in opposite comers forbalance.NOTE:Use empty skirted plates to support non-skirted PCR platesPress each plate against the stainless steel clips.This is important,as unbalanced loads maycause excessive vibration and the product to walk while shaking.Turn the unit on by activating the ON/OFF switch so that the display is illuminated.Rotatethe Speed Control knob clockwise to set the desired shaking speed,and press the start/stopknob to toggle the controls to adjust the mixing time.To start the instrument,press and holdthe Start/Stop knob.IV.Care and Maintenance:No routine maintenance is required other then to keep the unit clean.When cleaning,use amild detergent (such as isopropyl alcohol).website:www.Benchmark Scientifice mail:Benchmark ScientificTe908-769-5555Fax:908-222-1864ReV.2015-9
