BWConnect安装操作说明书手册

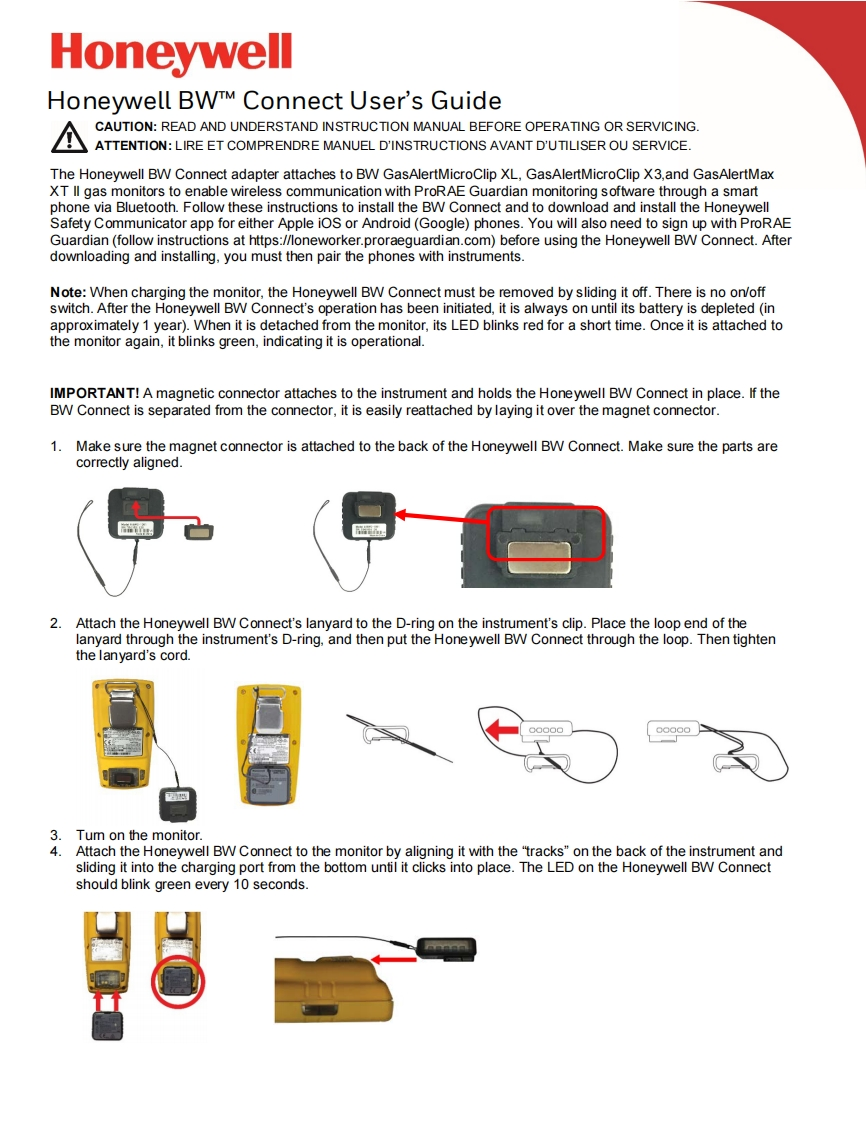

HoneywellHoneywell BWTM Connect User's GuideCAUTION:READ AND UNDERSTAND INSTRUCTION MANUAL BEFORE OPERATING OR SERVICING.ATTENTION:LIRE ET COMPRENDRE MANUEL D'INSTRUCTIONS AVANT D'UTILISER OU SERVICE.The Honeywell BW Connect adapter attaches to BW GasAlertMicroClip XL,GasAlertMicroClip X3,and GasAlertMaxXT ll gas monitors to enable wireless communication with ProRAE Guardian monitoring software through a smartphone via Bluetooth.Follow these instructions to install the BW Connect and to download and install the HoneywellSafety Communicator app for either Apple iOS or Android(Google)phones.You will also need to sign up with ProRAEGuardian(follow instructions at https://loneworker.proraeguardian.com)before using the Honeywell BW Connect.Afterdownloading and installing,you must then pair the phones with instruments.Note:When charging the monitor,the Honeywell BW Connect must be removed by sliding it off.There is no on/offswitch.After the Honeywell BW Connect's operation has been initiated,it is always on until its battery is depleted (inapproximately 1 year).When it is detached from the monitor,its LED blinks red for a short time.Once it is attached tothe monitor again,it blinks green,indicating it is operational.IMPORTANT!A magnetic connector attaches to the instrument and holds the Honeyell BW Connect in place.If theBW Connect is separated from the connector,it is easily reattached by laying it over the magnet connector.1.Make sure the magnet connector is attached to the back of the Honeywell BW Connect.Make sure the parts arecorrectly aligned.2.Attach the Honeywell BW Connect's lanyard to the D-ring on the instrument's clip.Place the loop end of thelanyard through the instrument's D-ring,and then put the Honeyell BW Connect through the loop.Then tightenthe lanyard's cord.3.Tum on the monitor.4.Attach the Honeywell BW Connect to the monitor by aligning it with the 'tracks"on the back of the instrument andsliding it into the charging port from the bottom until it clicks into place.The LED on the Honeywell BW Connectshould blink green every 10 seconds.
