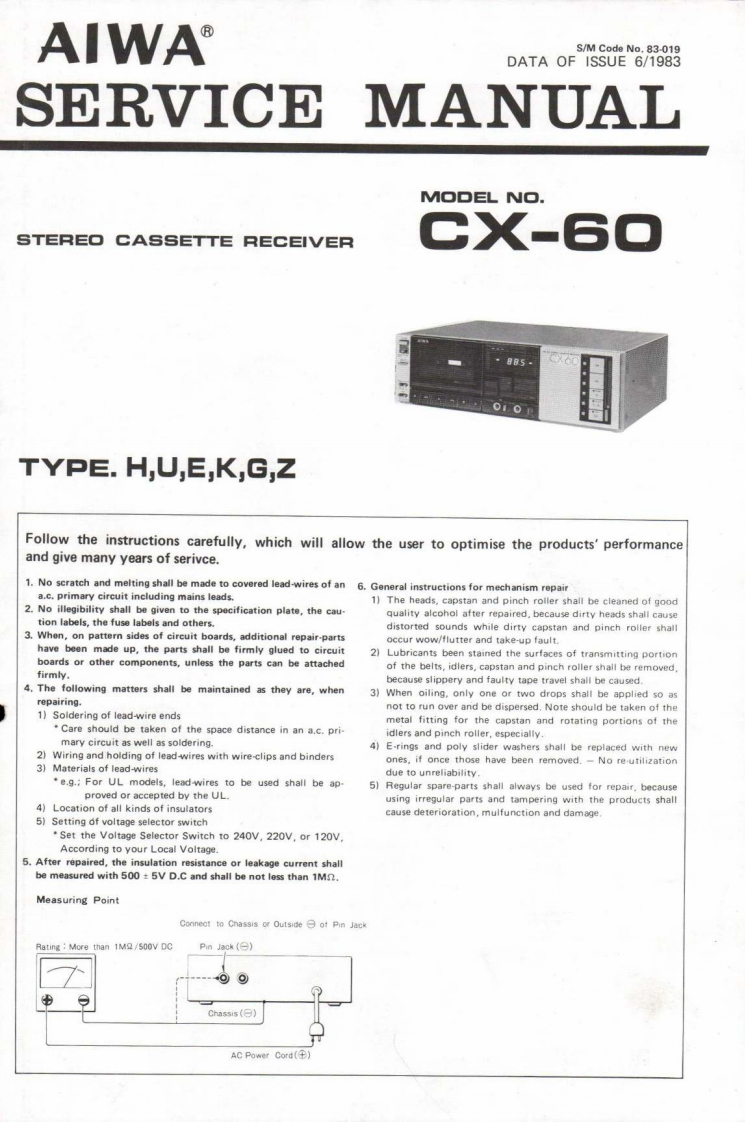

AIWAS/M Code No.83-019DATA OF ISSUE 6/1983SERVICE】MANUALMODEL NO.STEREO CASSETTE RECEIVERGX-6▣00TYPE.H,U,E,K,G,ZFollow the instructions carefully,which will allow the user to optimise the products'performanceand give many years of serivce.1.No seratch and melting shall be made to covered lead-wires of an 6.General instructions for mechanism repaira.c.primary circuit including mains leads.1)The heads,capstan and pinch roller shall be cleaned of good2.No illegibility shall be given to the specification plate,the cau-quality alcohol after repaired,because dirty heads shall causetion labels,the fuse labels and others.distorted sounds while dirty capstan and pinch roller shall3.When,on pattern sides of circuit boards,additional repair-partsoccur wow/flutter and take-up fault.have been made up,the parts shall be firmly glued to circuit2)Lubricants been stained the surfaces of transmitting portionboards or other components,unless the parts can be attachedof the belts,idlers,capstan and pinch roller shall be removedfirmly.because slippery and faulty tape travel shall be caused.4.The following matters shall be maintained as they are,when3)When oiling,only one or two drops shall be applied so asrepairing.1)Soldering of lead-wire endsnot to run over and be dispersed.Note should be taken of themetal fitting for the capstan and rotating portions of theCare should be taken of the space distance in an a.c.pri-idlers and pinch roller.especially.mary circuit as well as soldering.4)E-rings and poly slider washers shall be replaced with new2)Wiring and holding of lead-wires with wire-clips and binders3)Materials of lead-wiresones,if once those have been removed.-No re-utilization.e.g.;For UL models,lead-wires to be used shall be ap.due to unreliability.5)Regular spare-parts shall always be used for repair.becauseproved or accepted by the UL.using irregular parts and tampering with the products shall4)Location of all kinds of insulatorscause deterioration,mulfunction and damage.5)Setting of voltage selector switch*Set the Voltage Selector Switch to 240V,220V,or 120V.According to your Local Voltage.5.After repaired,the insulation resistance or leakage current shallbe measured with 500:5V D.C and shall be not less than 1Ms.Measuring PointConnect to Cnassis or Outside of Pin JackRating More than 1M2/500V DCPin Jack(e】⊙AC Power Cord(】
