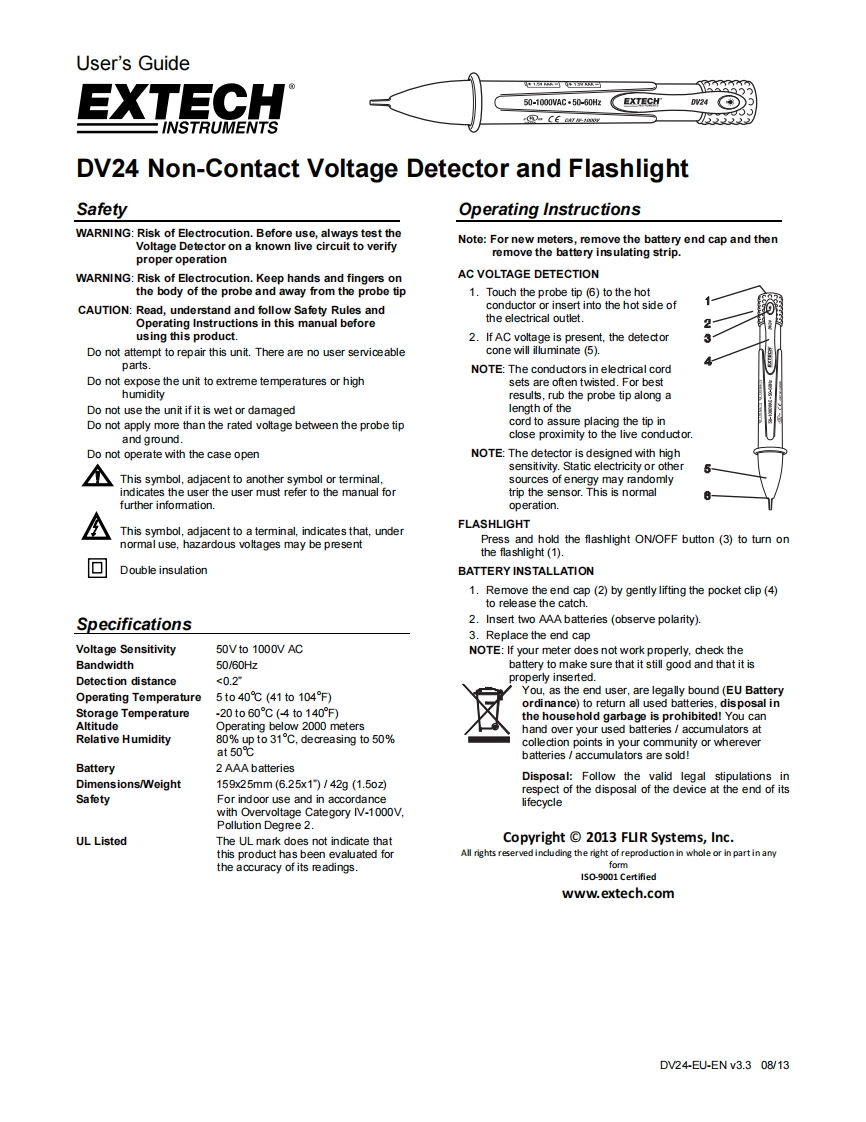

User's GuideEXTECH50-1000WAC.50-60HzEXTECHw24*)INSTRUMENTSDV24 Non-Contact Voltage Detector and FlashlightSafetyOperating InstructionsWARNING:Risk of Electrocution.Before use,always test theNote:For new meters,remove the battery end cap and thenVoltage Detector on a known live circuit to verifyremove the battery insulating strip.proper operationWARNING:Risk of Electrocution.Keep hands and fingers onAC VOLTAGE DETECTIONthe body of the probe and away from the probe tip1.Touch the probe tip (6)to the hotCAUTION:Read,understand and follow Safety Rules andconductor or insert into the hot side ofOperating Instructions in this manual beforethe electrical outlet.using this product.2.If AC voltage is present.the detectorDo not attempt to repair this unit.There are no user serviceablecone will illuminate (5).parts.NOTE:The conductors in electrical cordDo not expose the unit to extreme temperatures or highsets are often twisted.For besthumidityresults,rub the probe tip along aDo not use the unit if it is wet or damagedlength of theDo not apply more than the rated voltage between the probe tipcord to assure placing the tip inand ground.close proximity to the live conductor.Do not operate with the case openNOTE:The detector is designed with highsensitivity.Static electricity or otherThis symbol,adjacent to another symbol or terminal,sources of energy may randomlyindicates the user the user must refer to the manual fortrip the sensor.This is normalfurther infomation.operation.FLASHLIGHTThis symbol,adjacent to a terminal,indicates that,undernormal use,hazardous voltages may be presentPress and hold the flashlight ON/OFF button (3)to turn onthe flashlight (1).回Double insulationBATTERY INSTALLATION1.Remove the end cap (2)by gently lifting the pocket clip(4)to release the catch.Specifications2.Insert two AAA batteries (observe polarity)3.Replace the end capVoltage Sensitivity50Vto 1000V ACNOTE:If your meter does not work properly,check theBandwidth50/60Hzbattery to make sure that it still good and that it isDetection distance<0.2properly inserted.You,as the end user,are legally bound (EU BatteryOperating Temperature5to40℃(41to104℉)ordinance)to return all used batteries,dis posal inStorage Temperature20to60°℃(4to140°F)the household garbage is prohibited!You canAltitudeOperating below 2000 metershand over your used batteries accumulators atRelative Humidity80%up to 31C,decreasing to 50%collection points in your community or whereverat50℃batteries accumulators are sold!Battery2 AAA batteries159x25mm(6.25x17/42g(1.502)Disposal:Follow the valid legal stipulations inDimensions/Weightrespect of the disposal of the device at the end of itsSafetyFor indoor use and in accordancelifecyclewith Overvoltage Category IV-1000V,Pollution Degree 2.UL ListedThe UL mark does not indicate thatCopyright 2013 FLIR Systems,Inc.this product has been evaluated forAll rights reserved including the right of reproduction in whole or in part in amythe accuracy of its readingsformIS0-9001 Certi
