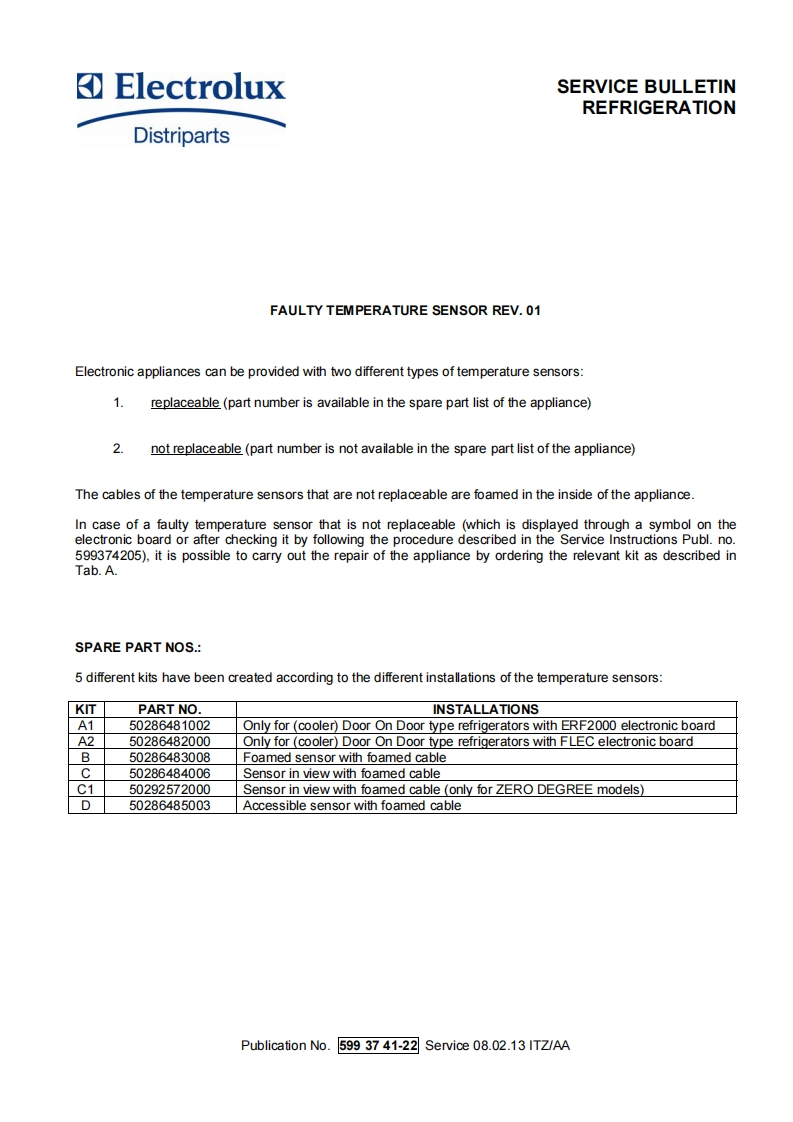

④ElectroluxSERVICE BULLETINREFRIGERATIONDistripartsFAULTY TEMPERATURE SENSOR REV.01Electronic appliances can be provided with two different types of temperature sensors:1.replaceable(part number is available in the spare part list of the appliance)not replaceable(part number is not available in the spare part list of the appliance)The cables of the temperature sensors that are not replaceable are foamed in the inside of the appliance.In case of a faulty temperature sensor that is not replaceable (which is displayed through a symbol on theelectronic board or after checking it by following the procedure described in the Service Instructions Publ.no.599374205),it is possible to carry out the repair of the appliance by ordering the relevant kit as described inTab.A.SPARE PART NOS.:5 different kits have been created according to the different installations of the temperature sensors:KITPART NO.INSTALLATIONSA150286481002Only for (cooler)Door On Door type refrigerators with ERF2000 electronic boardA250286482000Only for (cooler)Door On Door type refrigerators with FLEC electronic boardB50286483008Foamed sensor with foamed cableC50286484006Sensor in view with foamed cableC150292572000Sensor in view with foamed cable (only for ZERO DEGREE models)D50286485003Accessible sensor with foamed cablePublication No.599 37 41-22 Service 08.02.13 ITZ/AA
